- SKU
- NB002069
- Lighting method
- Transmission: d/0 (diffuse illumination/0 ° reception); reflection: d/8 (diffuse illumination/8 ° reception);
- Measurement caliber
- Transmission measurement diameter: 〇20mm; reflection measurement diameter: LAV: 〇28mm; MAV: 〇11mm; SAV: 5 × 7mm
- Spectroscopic reflectance Repeatability
- Standard deviation less than 0.05%
- Available Light Sources
- Pulse xenon arc, high luminance, long life, good stability
- Color Space
- L*a*b,L*C*h,YXY,Luv,CMC(2:1),CMC(1:1),ΔE*ab,ΔE*94,ΔE*00,MI,WI(ASTM313/CIE),YI(ASTM313/ASTM D1925),Hunter Lab ,XYZ,R,G,B等参数
- Measurement function
- Light spectrum reflectance Linear dispersion, Light spectrum Transmittance Linear dispersion
- SCI/SCE synchronous measurement
- SCI (including mirror reflection)/SCE (eliminating mirror reflection) optional
- Wavelength range
- 380~780nm
- wavelength interval
- Up to 0.1nm
- Reflectance Measurement Range
- 0~200%

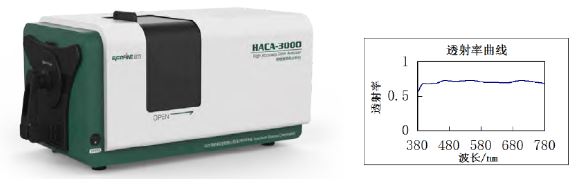

The HACA high-precision Spectrophotometer adopts professional spectral measurement technology to meet the high-precision measurement requirements of research and development. It can achieve high-precision measurement of spectral reflectance, spectral transmittance, color, etc. of the object surface, and meet the needs of excellent colors of a variety of materials. A well-matched solution that meets the color requirements of CIE, ISO, ASTM, DIN, JIS and other international standards and GB/T national standards.
Benchmark Color Measurement Equipment
Main features 1) Pulse xenon light source, high brightness, long life and good stability
2) Very good repeatability: unique dual optical path design can monitor and automatically compensate the light source, reducing errors caused by light source changes
3) Automatic Zoom function: According to different measurement apertures, the system can realize automatic zoom
4) Spectral measurement technology: Using back-illuminated high-precision array CCD Detectors, good diffraction gratings, and utilizing multiple technologies to ensure high resolution of spectral measurements. Low stray light and high sensitivity
5) Excellent measurement performance in dark areas: high accuracy and repeatability when measuring low reflectivity or transmittance materials
6) Easy maintenance: built-in correction and calibration functions, convenient for users Self-calibration and zeroing.
Main Specifications
1) Measurement function: spectral reflectance curve, spectral transmittance curve;
2) Color space: L*a*b, L*C*h, YXY, Luv, CMC(2:1), CMC(1:1), â³E*ab, â³E*94, â³E*00, MI, WI (ASTM313/CIE), YI (ASTM313/ASTM D1925), Hunter Lab, XYZ, R, G, B and other parameters; 3)
Lighting/reception Conditions:
Transmission: d/0 (diffuse illumination/0°reception); Reflection: d/8 (diffuse illumination/8°reception);
4) SCI/SCE simultaneous measurement:
SCI (including specular reflection)/SCE (elimination) Specular reflection) Optional
5) Measuring aperture:
Transmission measuring aperture: Ф20mm
Reflection measuring aperture: LAV: Ф28mm; MAV: Ф11mm; SAV: 5Ã7mm.
For measuring objects of different sizes, different measuring apertures can be replaced, and the system after replacement Can automatically identify the corresponding aperture size.
6) Wavelength range: 380-780nm (special bands can be customized)
7) Excitation light source: pulse xenon lamp, high brightness, long life, good stability
8) Wavelength interval: up to 0.1nm
9) Reflectivity test range: 0-200%
10) Repeatability: standard deviation less than 0.05% (white plate reflectance)
11) Standard accessories: white calibration plate, zero calibration box
typical application
