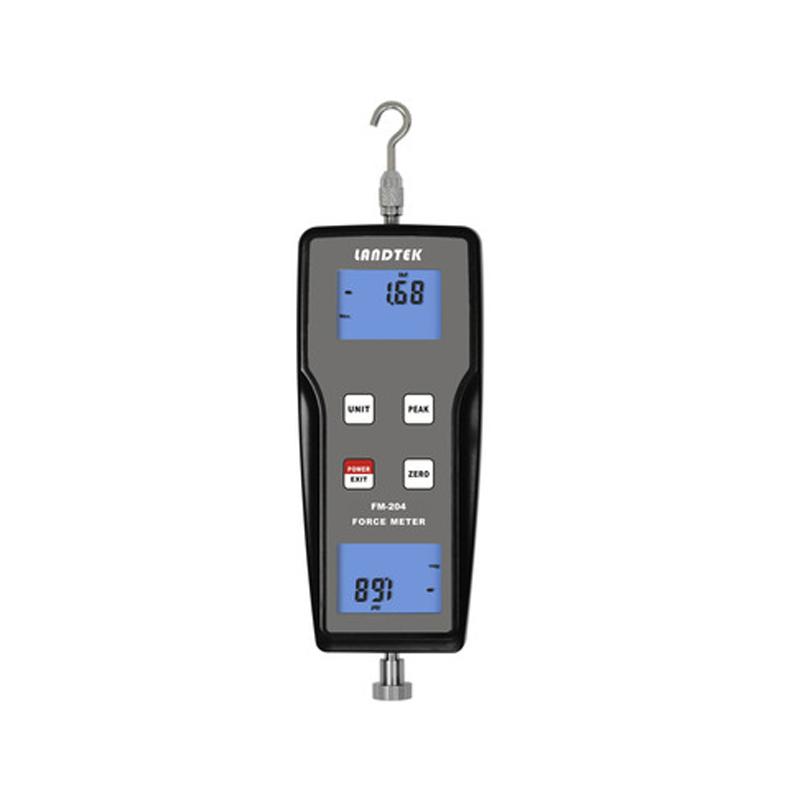

LANDTEK FM-204-1K Force Gauge
FM-204-1K
LANDTEK FM-204-1K Force GaugeSPEC
LANDTEK FM-204-1K Force GaugeDetails
LANDTEK FM-204-1K Force GaugePacking list
- SKU
- NB020735
- monitor
- Four-digit large LCD, forward and reverse dual display
- Measurement range
- ±1kgf/±1000gf/±9.8N/±2.2Lbf
- error of indication
- +/- 0.5% FS (range) +/- 1 digital peak
- Power Supply
- 2 AA batteries, or 6V DC Power Supply
- Dimension
- 211*80*36 mm
- Weight
- 390g
- Load Graduation
- 0.001kgf、1gf、0.01N、0.001Lbf
- Precision
- Level 0.5
- unit
- Kgf、N、Lbf、gf
- Measured value
- Peak, instantaneous value
- shutdown mode
- 10 minutes automatic shutdown or manual shutdown
- Backlight
- Blue backlight
- allowable load
- 150% F.s (if it exceeds 110% F.s, there will be a beep alarm)
- Operating temperature
- 0~40℃
- Allowable Relative Humidity
- < 80%
- Operating Environment
- No source and corrosion medium around
Product Applications
Digital push-pull force meter is a small, simple, multi-functional and high-precision thrust and pull testing instrument, which is widely used in electronic appliances, building hardware, light industry and textiles, auto parts, lighters and other ignition devices, fire-fighting equipment, pen-making, lock-making, fishing gear, chemical industry, power machinery, scientific research institutions and other industries of push-pull load, plug-in force test, destructive test, etc.
Features
* High precision and high resolution.
* Digital display, no parallax.
* N (Newton), kg (kg), lb (pound), g (gram) four units of measurement are available and can be converted to each other.
* Peak hold function. Hold the peak display until it is manually cleared.
* Green and environmentally friendly, can be set to 10 minutes without operation automatic shutdown; It is also possible to shut down by hand.
* Can be powered by alkaline batteries; It can also be connected to a 6V DC power supply.
Live shot
