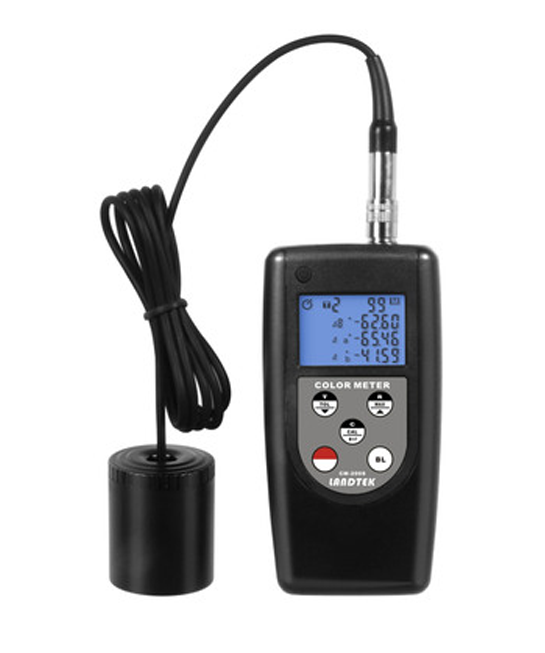

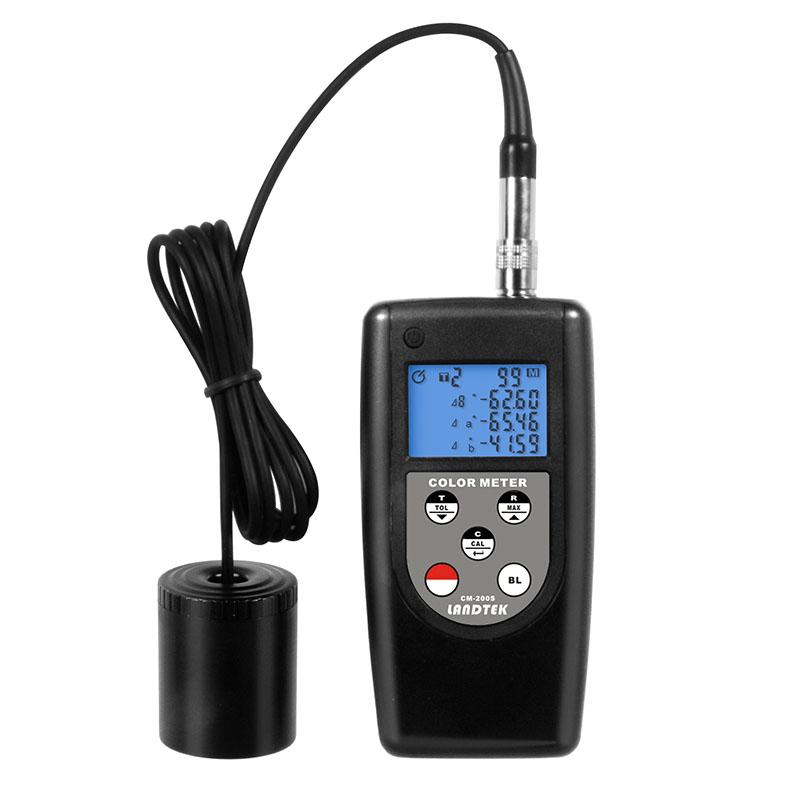

LANDTEK CM-200S Portable Colorimeter
SE
CM-200S
LANDTEK CM-200S ColorimeterSPEC
LANDTEK CM-200S ColorimeterDetails
LANDTEK CM-200S ColorimeterPacking list
- SKU
- NB020761
- Display
- 3 4-digit LCD displays
- Automatic shutdown
- About 3 minutes
- Data memory Capacity
- Data memory Capacity
- Lighting method
- 45°/0°
- Measurement area
- About Φ10mm
- display mode
- {"task":""H*ab","H*ab","H*ab","H*ab","H*ab","H*ab","H*ab","H*ab","H*ab","H*ab","H*ab","H*ab","H*ab","H*ab","H*ab","H*ab Twp. — The New York Times reported that the city of New York’s first-in-the-nation residential neighborhood in the city of New York was in the middle of a decade ago.
- Color space
- (L *, a *, b *), (L *, C * ab, hab), (Y, x, y), (X, Y, Z), (Rs, Gs, Bs) (WI, YI, Tw)
- Target Color Memory
- 9; set via measurement or input
- Measuring range
- L*：5~100
- Measurement conditions
- Observation: CIE 2 ° standard observation
- lighting source
- White LED light
- Sexual repeability
- Standard deviation within ΔE * ab 0.5
- Minimum measurement interval
- About 2 seconds
- Operating conditions
- 0~40 ℃ at 85% RH
- Storage temperature and humidity
- -10~40 ℃ at 70% RH
- Power
- Four AA batteries
- Dimensions
- 140*73*35mm
- Sensors size
- Φ44x55mm
- Weight
- About 220g (including battery)
Applications
This meter is a very portable and easy-to-use tristimulus Colorimeter, specially designed for measuring the color difference between two colors. This meter is used to measure non-luminescent and non-fluorescent samples such as textiles, paper, leather, sprayed materials and others. It is a useful tool in quality control and a wide range of industrial applications.
Features
* Color difference display △(L*,a*,b*),△(E*ab,C*ab,H*ab),△Y,x,y),△(X,Y,Z),△( Rs, Gs, Bs) or △ (WI, YI, Tw).
* Color space display (L*,a*,b*),(L*,C*ab, hab),(Y,x,y),X,Y,Z),(Rs,Gs,Bs) or ( WI, YI, Tw).
* Statistics function (maximum value, minimum value, average value and standard deviation).
* Configurable color difference allows error judgment PASS/WARN/FAIL.
* 9 target colors can be stored.
* User calibration function ensures high accuracy.
* Automatic memory (99 groups) and read function.
* Digital backlight display, no parallax.
* Auto power off function.
*Using USB data cable output, connected with PC.
* Provide Bluetooth data output option.
real shot
- 1GB/T 36392-2025《Coated paper and board for food packaging》
- 2JB/T 5595-1991《Colorimeter》
- 3 0905-2015《Standard test method for color of petroleum products by the automatic tristimulus method》
- 4YS/T 680-2016《Powder for coating aluminium alloy extruded profiles for architecture》
- 5GB/T 20147.3-2023《Colorimetry—Part 3：CIE tristimulus values》
- 6GB/T 13448-2019《Test methods for prepainted steel sheet and strip》
- 7ISO 11664-4-2019《Colorimetry - Part 4: CIE 1976 L*A*B* Colour Space》
- 8ISO 11664-3-2019《Colorimetry - Part 3: CIE Tristimulus Values》
- 9GB/T 2374-2017《Dyestuffs—General rules for dyeing test》
- 10GB/T 22374-2018《Floor coating》
