EVERFINE Spectral Color HAM-300 Transmittance and Haze Test System (380-780nm)

HAM-300

Transmittance and haze testing system

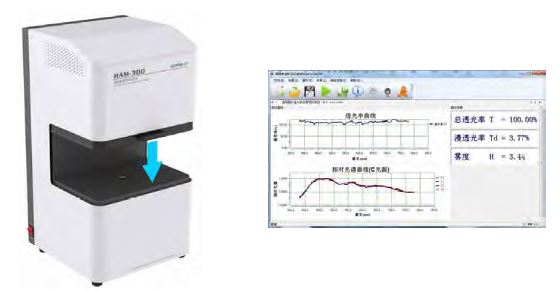

HAM-300 haze meter is mainly used to measure the haze, total light transmittance, scattered light transmittance and spectral transmission performance of plastics, films, glass or LCD panels.

                        Adopt high-precision and fast spectrum measurement technology

main feature

1) Measurement functions: haze, total transmittance, scattering transmittance, spectral transmittance curve.
2) Comply with new international and domestic (CN) standard requirements such as ASTM D1003, GB/T 2410, JC/T 2130-2013 and JIS K7105-81.
3) Transmitted illumination reception conditions: 0/d
4) It can measure haze and transmittance under CIE standard illuminants A, C, and D65 light sources.
5) Wavelength range: 380nm~780n
6) Wavelength accuracy: ±0.3nm
7) Wavelength interval: up to 1nm
8) Transmittance measurement range: 0-100.00%
9) Haze test accuracy: 0.1, resolution : 0.01%
10) Lighting/sample aperture size: 16mm/20mm
11) Sample size: length and width ≤ A4 paper size, thickness ≤ 150mm

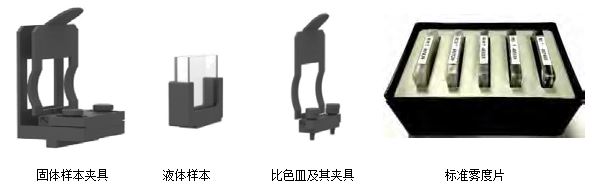

Optional :

main application:

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
