TQC Sheen SH0657 reflectivity meter

SH0657

Reflectivity meter

Introduction

Easy-to-use, handheld reflectometer for measuring opacity or light reflectance in grayscale. It is suitable for evaluating the hiding power of coatings, or for simple shading sorting tasks for metallized films, anodized aluminium or ceramics.

Reflectance TesterMeasure the diffuse reflection light from the test surface. Controlled lighting conditions and illumination angles allow surfaces to be characterized based on their brightness or darkness. A completely black surface will read (zero), while a good white will be 100 units, which is recognized as a "Y" value on the color measurement scale.

A reflectance meter can be used to compare the contrast (hiding power) of paints. The method involves applying the test sample to a black and white card or polyester sheet, which is then placed on a black and white glass plate.

The reading is taken on the coating on the black part and then on the white part.

Features

•Automatic calibration of 2 calibration standards.

• Large backlit LCD display for single readings.

• Rechargeable battery, dual Voltage power charger provided.

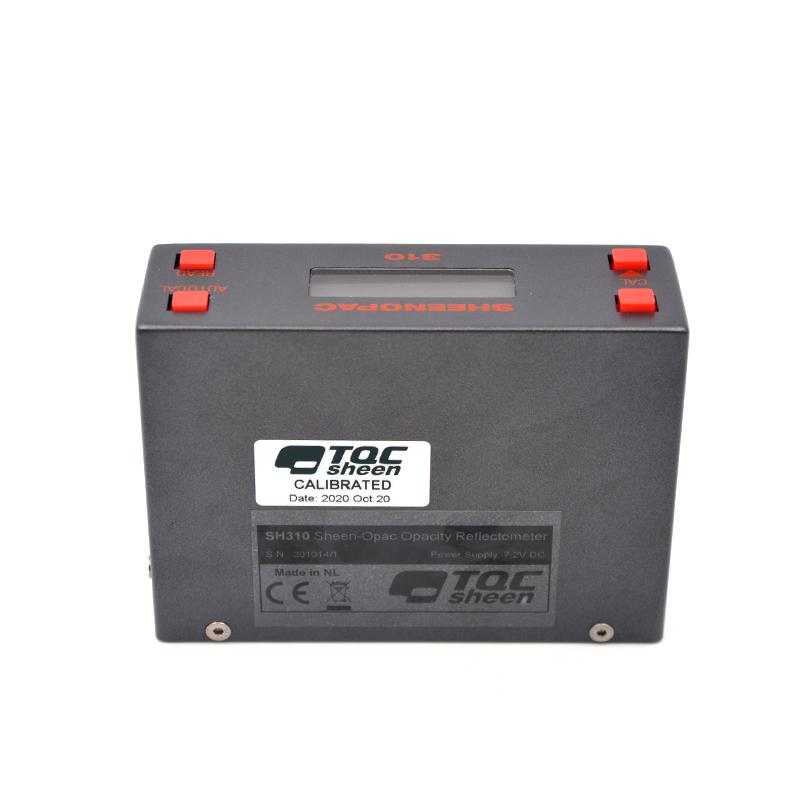

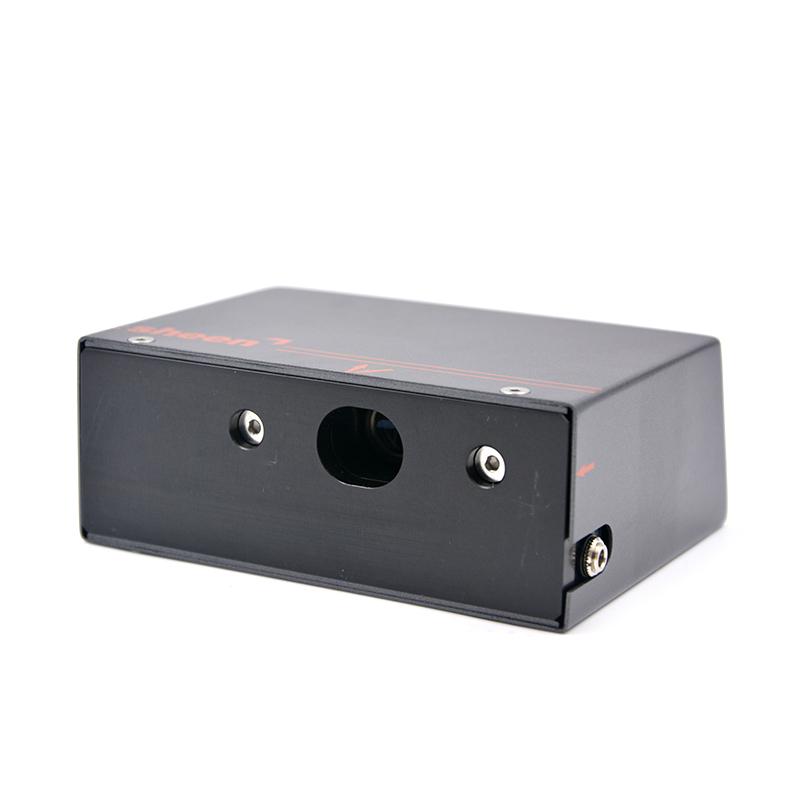

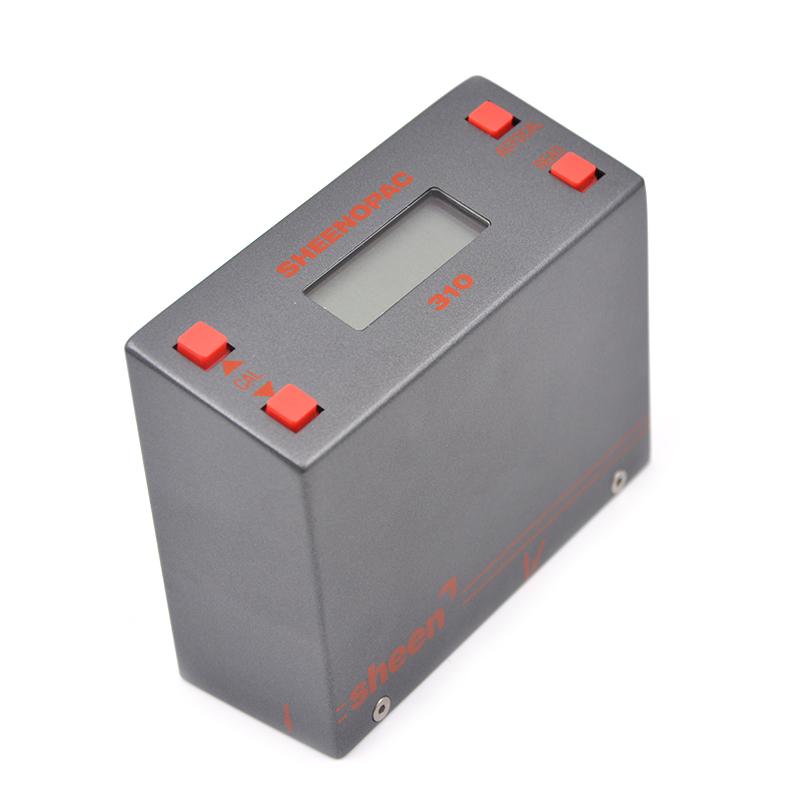

Product display

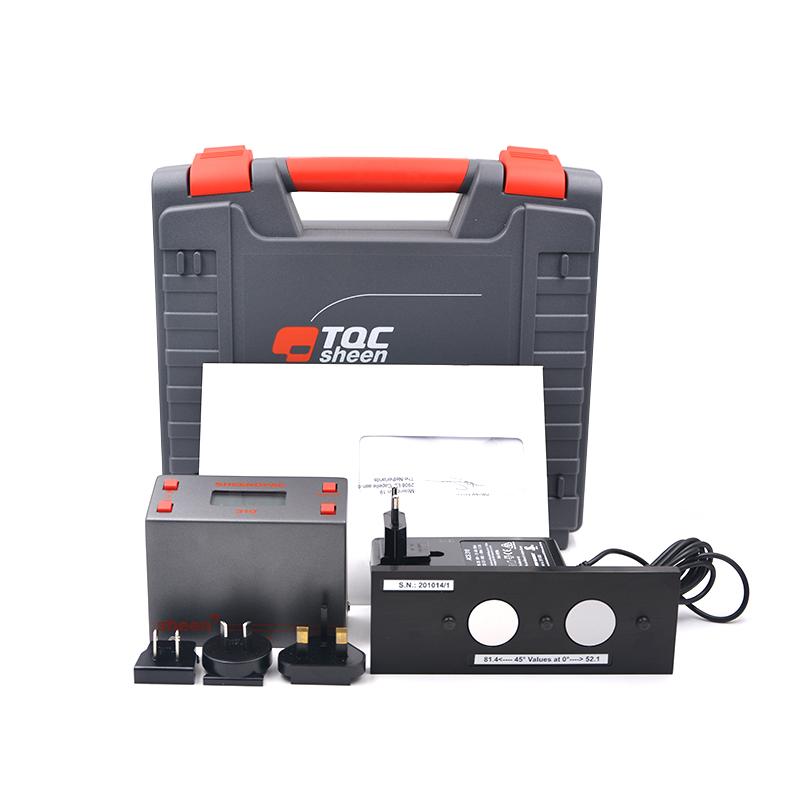

Packing list：Host X1, calibration shim X1, charger X1, portable case X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
