DONGRU DR230 Coating Thickness Gauge can automatically identify ferrous or non-ferrous substrate Film Thickness Gauge

DR230

Coating Thickness Gauge

Magnetic Induction and eddy Current thickness measurement, automatic substrate identification, thickness range 0~1000μm, error accuracy +/- 3%, built-in F and NF probes, thinnest substrate 0.4mm, support zero and two point calibrate.

Product Description

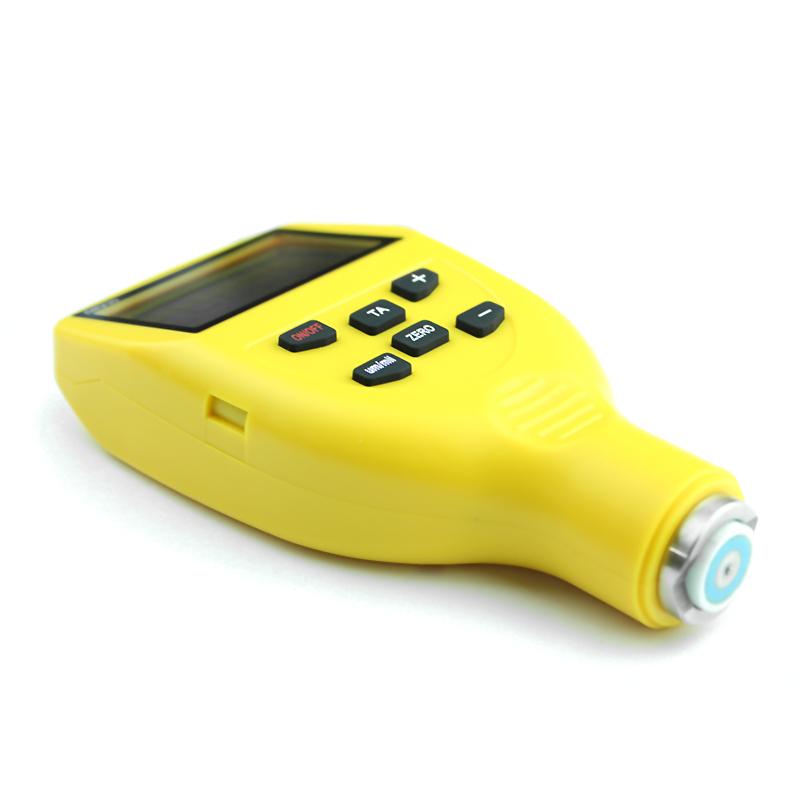

Dongru DR230 coating Thickness Gauge has the same shape and structure as DR210 and DR220, and it is also an integrated structure with a built-in probe. However, the DR230 coating Thickness Gauge is an eddy current/magnetic induction dual-purpose coating Thickness Gauge, which can automatically identify ferrous or non-ferrous substrates. The DR230 coating Thickness Gauge has a data storage function, and can perform two calibration methods, zero point and two point. It will automatically shut down if it is not operated within a certain period of time. Although it is small in size, it has powerful functions. DR230 coating Thickness Gauge can be widely used in manufacturing, metal processing, chemical industry, commodity inspection and other fields, with integrated design, easy to carry and accurate measurement.

Special feature

DR230 coating Thickness Gauge can automatically identify the base material.

Magnetic Thickness Measurement Method

It can non-destructively measure the thickness of non-magnetic coatings (such as: galvanized, chrome, paint, electrophoresis, enamel, rubber, powder, enamel, anti-corrosion layer, plastic spraying, etc.) on magnetic metal substrates (such as: steel, iron, nickel) )

Eddy Current Thickness Measurement Method

Non-destructively measure the thickness of non-conductive coatings (such as: paint, powder, plastic, rubber, enamel, enamel, anti-corrosion coating, etc.) on non-magnetic metal substrates (such as: aluminum, copper, stainless steel)

DR230 Coating Thickness Gauge is an all-in-one Thickness Gauge, which integrates the features of portable, all-in-one, hand-held, intelligent digital display, etc. It can automatically identify the substrate and substrate, and measure the coating thickness of the metal surface quickly and without damage. Measurement.

Features

Small and integrated design, easy to carry

Simple operation and fast test speed

DR230 coating Thickness Gauge can store 116 measurement data

It can be connected to a computer for communication and read out stored data for saving or printing

Two calibration methods: zero point calibration and two point calibration

There is a buzzer prompt during the operation (single measurement mode)

Automatic identification of ferrous and non-ferrous substrates

DR230 coating Thickness Gauge has low Voltage indication function

Manual/automatic shutdown function

Two test methods: continuous test (CONT INUE) and single (SINGLE) measurement

Four statistical functions: maximum value (MAX), minimum value (MIN), average value (MEA), measurement times

Calibration method

1. Zero calibration.

Put the probe of the DR230 coating thickness gauge vertically on the substrate, press and hold the zero calibration key "ZER0", and then release it until the display shows "CAL" before lifting the probe, otherwise the zero calibration will fail.

2. Two-point calibration

1) Calibrate the zero position first.

2) According to the measurement coating thickness requirements of the experiment, select the closest diaphragm and place the diaphragm on the calibration substrate, then lower the probe to measure. If the measured value is different from the diaphragm, lift the probe and use the "+" and "-" buttons to correct.

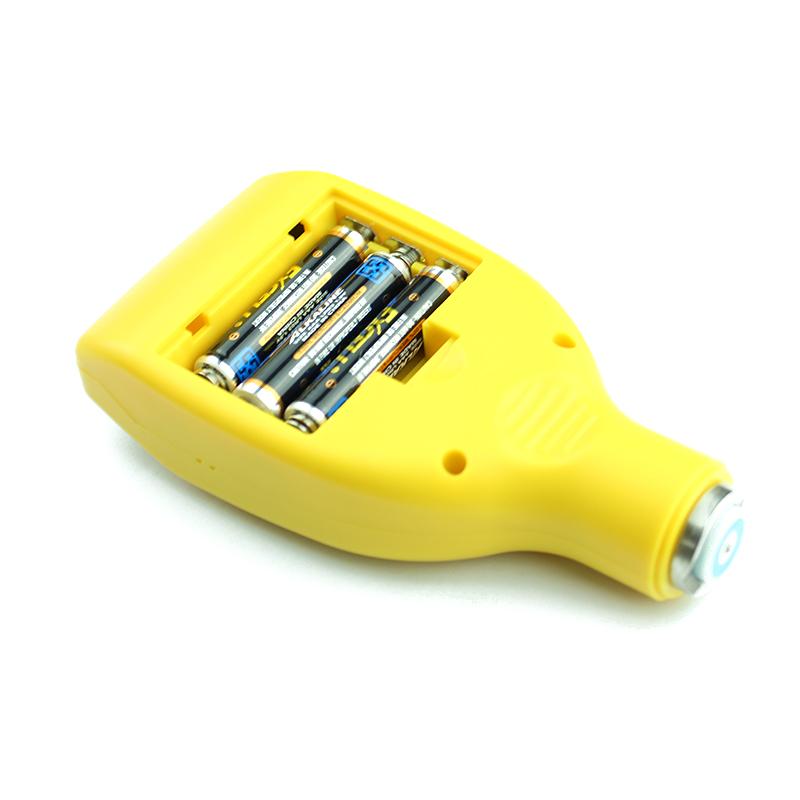

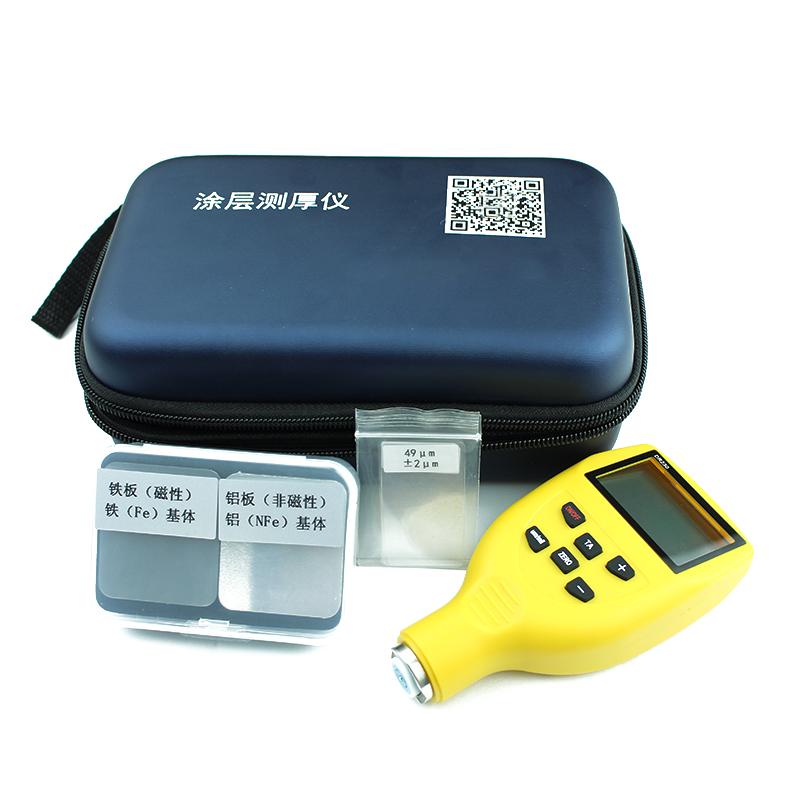

Packing list：instrument case x1, host x1, standard piece x4, iron-based x1, aluminum-based x1, battery x2, cleaning cloth x1, warranty card x1 attached to the manual, certificate x1.

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
