EVERFINE Spectral Color DMS-1500 Flat Panel Display Optical inspection characteristic test system
Model：
EVERFINE
EVERFINE DMS-1500 Optical inspection characteristic test system for flat panel displaySPEC
EVERFINE DMS-1500 Optical inspection characteristic test system for flat panel displayDetails
EVERFINE DMS-1500 Optical inspection characteristic test system for flat panel displayPacking list
- SKU
- NB002088
- Product name
- DMS-1500
- Maximum measurement size
- 3-15 inches
- Sample under test
- horizontal placement
- test distance
- 400Mm~ 600mm adjustable
- Travel resolution
- 0.01mm
- Vertical axis (V axis)
- -90°~+90°
- Horizontal axis (H axis)
- -90°~+90°
- Angle Accuracy
- ±0.1°
- Optical inspection measurement (optional)
- EVERFINE luminance meters: SRC series, CX series, SIRC series
- Equipped with electrical measurement (optional)
- Display special precision DC test Power and electrical performance test system, high stability and high-precision, to meet the Power requirements of the tested sample.
- CCD imaging system (optional)
- Light spectrum luminance meter is connected by CCD to observe the position of the measured object, and the position of the measured screen and the measured point in the screen can be visually displayed in the computer.
- Accessories
- Optical inspection characteristic test system cabinet, laser aligner, sample basic flat holding device, software.
DMS-1500
Optical inspection characteristic test system for flat panel display
High degree of automation, complete all operations with one click
Integrated design to achieve high optical, mechanical and electrical measurement accuracy for small and medium-sized flat panel displays
product description:
Measure the brightness, brightness uniformity (including maximum brightness, average brightness, brightness unevenness, etc.), red, green, and blue coordinates, color temperature, and color space models (Lv x y, Lv u'v', â³uv, XYZ), chromaticity uniformity, Viewing Angle, power consumption and other parameters.

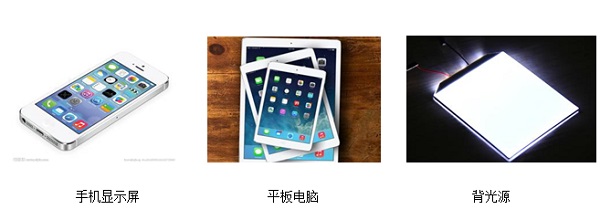

Application products:
