EVERFINE Spectral Color DMS-3200 Optical inspection system for flat display
Model：
EVERFINE
EVERFINE DMS-7000 Optical inspection characteristic test systemSPEC
EVERFINE DMS-7000 Optical inspection characteristic test systemDetails
EVERFINE DMS-7000 Optical inspection characteristic test systemPacking list
- SKU
- NB002089
- Product name
- DMS-7000
- Maximum measurement size
- 70 inches
- Sample attitude
- Vertical placement
- XYZ translation stage
- Program-controlled automatic movement, adjustable stroke
- Travel resolution
- 0.01mm
- Vertical axis (V axis)
- -90°~+90°
- Horizontal axis (H axis)
- -90°~+90°
- Corner Accuracy:
- ±0.1°
- Optical inspection measurement (optional)
- EVERFINE luminance meter: SRC series, CX series, SIRC series EVERFINE LFA stroboscopic measurement instrument, special high-precision Detector, etc. Optical inspection characteristics, total luminous flux, black and white response time, gray scale Gamm measurement can be realized by configuring the above opticalin strument.
- Equipped with electrical measurement (optional)
- Special precision AC test Power for display, high stability, low harmonic distortion, to meet the Power requirements of the tested sample. High-precision electrical performance test system, wide Measurement Range, to meet the test requirements of standby power consumption and electrical parameters.
- Programmable graphics signal generator (optional)
- Signal generators such as ASTRO, Chroma, MASTER, etc. (according to indent configuration)
- CCD imaging system (optional)
- Light spectrum luminance meter is connected by CCD to observe the position of the measured object, and the position of the measured screen and the measured point in the screen can be visually displayed in the computer.
- Field console
- Field control turntable rotation and mobile station movement.
- Accessories
- Optical inspection characteristic test system cabinet, laser aligner, sample basic flat holding device, software.
DMS-7000
Optical inspection characteristic test system
Overall solution for flat panel display measurement
High precision, fast speed, complete parameters and easy operation
Main test functions:
â Maximum brightness, average brightness, useful average brightness, brightness unevenness
â Color coordinates, color temperature, relative spectral curve, chromaticity uniformity
â Color gamut area and color gamut coverage
âViewing angle (horizontal Viewing Angle, vertical Viewing Angle)
â Window brightness contrast, black and white window contrast
â Black and white response time
â Grayscale Gamma measurement
â Flashing
â Crosstalk (horizontal black and white crosstalk, vertical black and white crosstalk)
â Preheating characteristics
âBrightness to power ratio, luminous efficiency, power consumption, etc.
â Total luminous flux (optional)

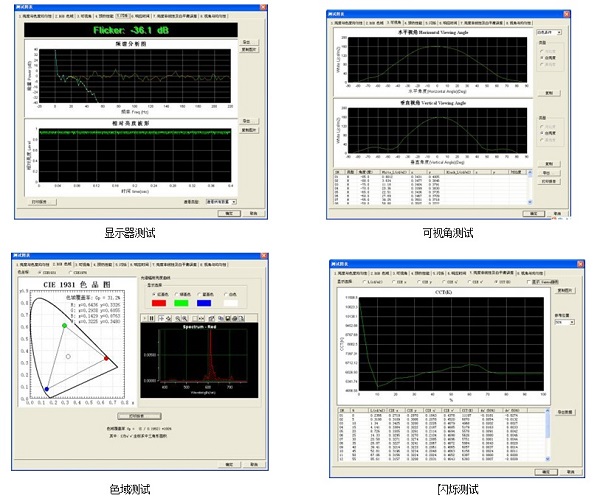

Test interface:
