DONGRU DR260 platings Thickness testing instrument magnetic coating Thickness testing instrument

DR260

Coating Thickness Gauge

Magnetic Induction, Measurement range 0~1250μm, error range +/- (1% -3%) H + 1.5μm, resolution 0.1μm /1 μm, Display screen 2.3 inch large color screen

Product Description

Dongru DR260 Coating Thickness Tester is a magnetic coating Thickness Gauge with an external probe type, the measuring range is 0~1250 microns, and the measured thickness data is displayed on the LCD, which is clear and intuitive. The DR260 coating thickness Tester is small in size but powerful in function. It has a storage function that can store 800 measurement data. It also has two calibration methods and four statistical functions. It is easy to use, easy to operate, fast in measurement speed, high in sensitivity, High precision, continuous measurement, can be connected to PC, etc.

Applications

DR260 Coating Thickness Gauge is a professional non-destructive testing instrument for measuring the thickness of coated coatings on the surface of magnetic metal materials. The magnetic thickness measurement method can be used to non-destructively measure the thickness of non-magnetic coatings (galvanized, chromium, indium, enamel, rubber, powder, paint, electrophoresis, enamel, spray, Coatings, anti-corrosion and fire-proof coatings, etc.), the instrument has a precise and firm structure, good repeatability, excellent performance, easy to use, and convenient to carry.

Applications: widely used in coating industry, manufacturing industry, metal processing industry, chemical industry, commodity inspection and other testing fields.

Pictures

Features

• Simple operation, fast test speed, good sensitivity and high measurement accuracy

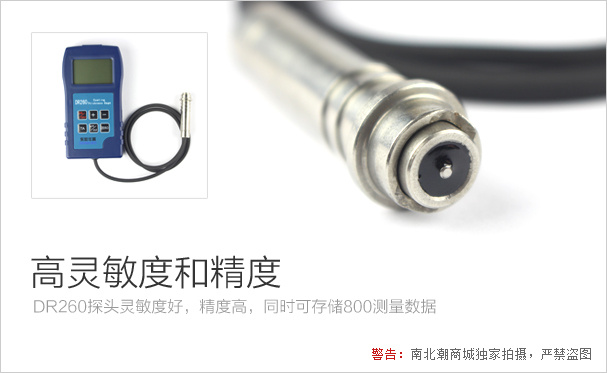

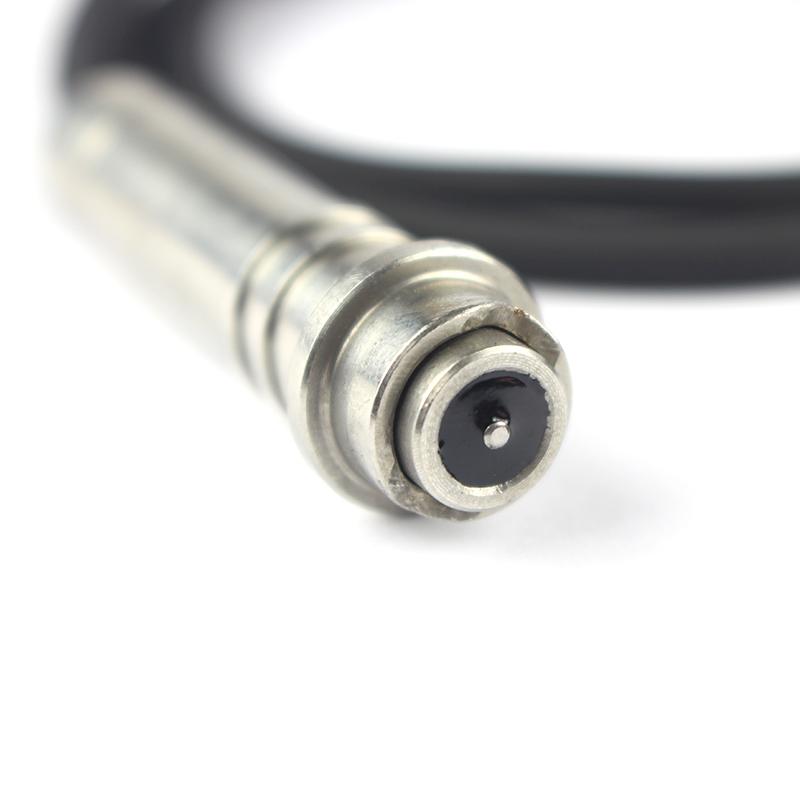

• Alloy probe, durable and precise

• There are two measurement methods: continuous measurement and single measurement

• There are four statistical functions: maximum value (MAX), minimum value (MIN), average value (MEA), measurement times (No)

• Large-capacity storage, can be stored in 10 groups, 200 in each group, and can store 2000 data in total

• Stored data store view delete function

• Three calibration methods: zero point calibration, two-point calibration, multi-point calibration

• Upper and lower limit alarm function (can be set in single measurement mode)

• The operation process is marked by a beep (in single measurement mode)

• Automatic identification of ferrous and non-ferrous substrates

• Metric and imperial conversion μm/Mil

• Sunlight mode (used under strong light)

• Chinese and English bilingual version

• 2.3-inch large color screen large font size display

• Manual/automatic shutdown function

• Bluetooth synchronous data transmission function (customized)

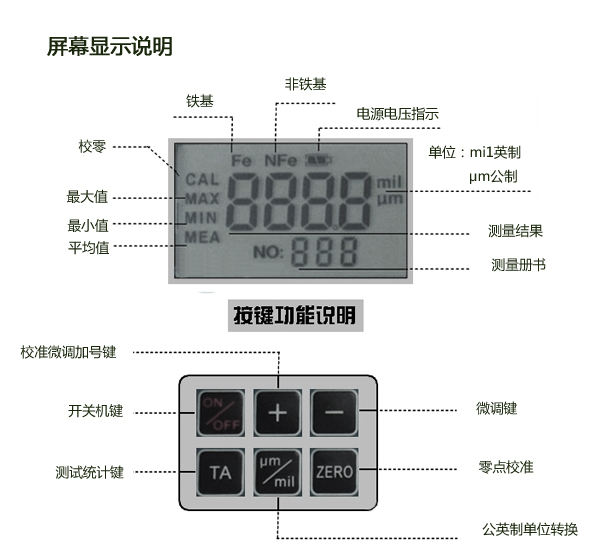

screen display instructions

Instructions

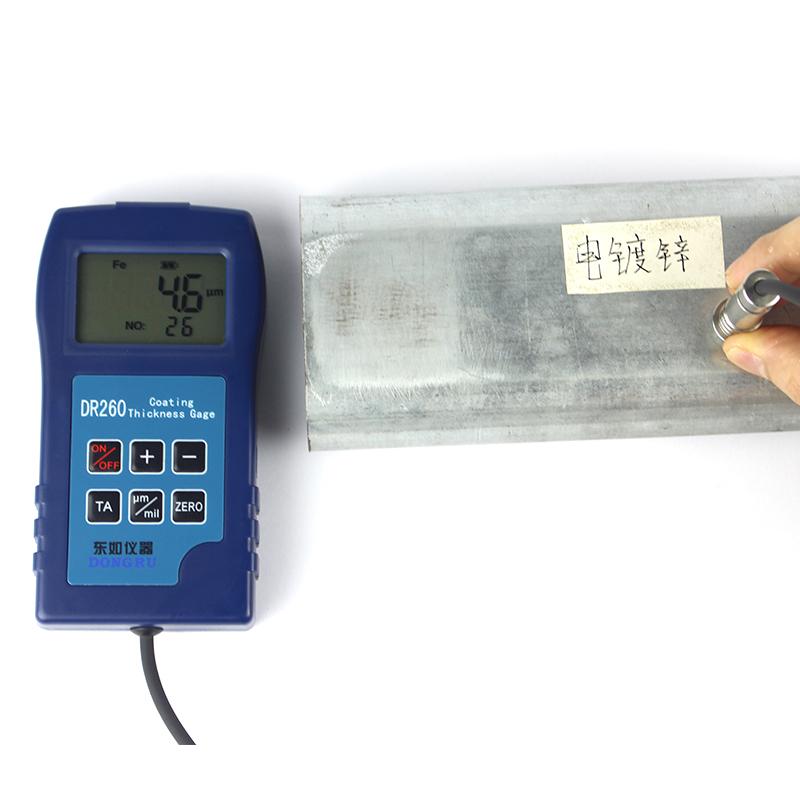

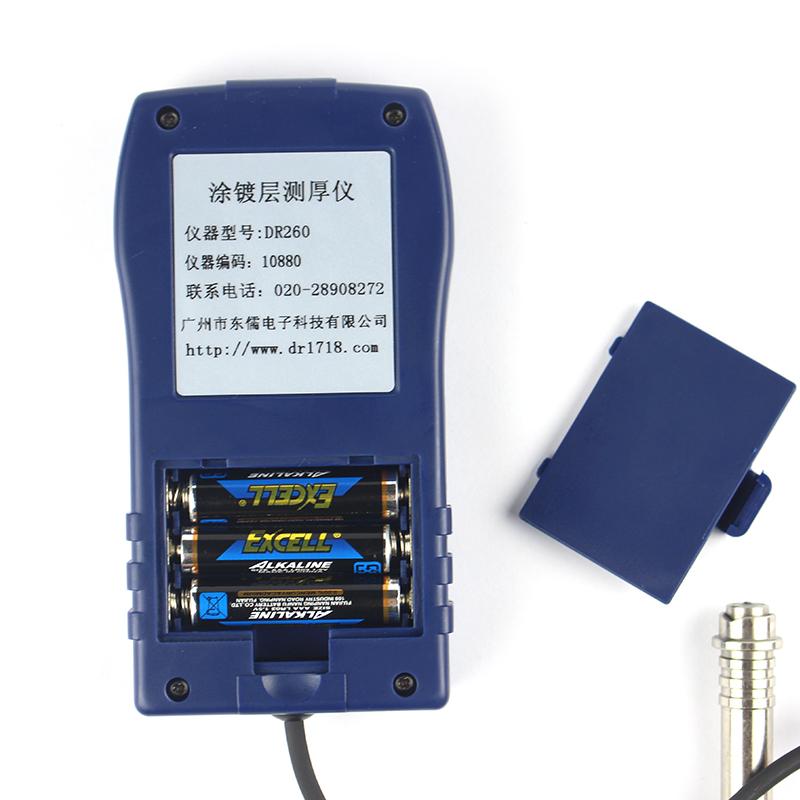

After the battery is installed on the DR260 coating thickness Tester, press the "ON/OFF" button to turn it on. After the buzzer sounds and "0" is displayed on the LCD, the instrument automatically enters the measurement state, and the probe is directly vertical and quickly tightened. Pressed onto the coating on the surface of the workpiece, the coating Thickness Gauge automatically measures the thickness of the coating through the probe, and displays the thickness value on the display (note: keep the probe vertical when measuring)

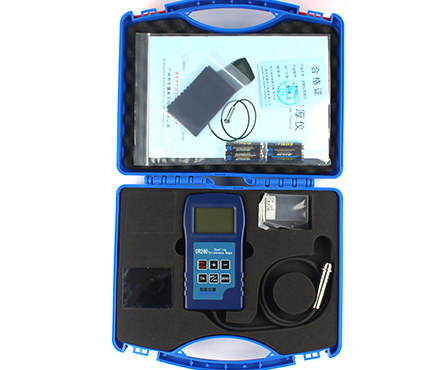

Packing list：host x1, standard sheet x1, iron matrix x1, battery x3, manual x1, certificate x1, cleaning cloth x1.

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
