EVERFINE Spectral Color DMS-7000 Optical inspection system for flat display

Model：
Contact
Details SPEC

EVERFINE DMS-7000 Optical inspection characteristic test systemSPEC

EVERFINE DMS-7000 Optical inspection characteristic test systemDetails

EVERFINE DMS-7000 Optical inspection characteristic test systemPacking list

SKU
NB002091
Product name
DMS-7000
Maximum measurement size
70 inches
Sample attitude
Vertical placement
XYZ translation stage
Program-controlled automatic movement, adjustable stroke
Travel resolution
0.01mm
Vertical axis (V axis)
-90°~+90°
Horizontal axis (H axis)
-90°~+90°
Corner Accuracy:
±0.1°
Optical inspection measurement (optional)
EVERFINE luminance meter: SRC series, CX series, SIRC series EVERFINE LFA stroboscopic measurement instrument, special high-precision Detector, etc. Optical inspection characteristics, total luminous flux, black and white response time, gray scale Gamm measurement can be realized by configuring the above opticalin strument.
Equipped with electrical measurement (optional)
Special precision AC test Power for display, high stability, low harmonic distortion, to meet the Power requirements of the tested sample. High-precision electrical performance test system, wide Measurement Range, to meet the test requirements of standby power consumption and electrical parameters.
Programmable graphics signal generator (optional)
Signal generators such as ASTRO, Chroma, MASTER, etc. (according to indent configuration)
CCD imaging system (optional)
Light spectrum luminance meter is connected by CCD to observe the position of the measured object, and the position of the measured screen and the measured point in the screen can be visually displayed in the computer.
Field console
Field control turntable rotation and mobile station movement.
Accessories
Optical inspection characteristic test system cabinet, laser aligner, sample basic flat holding device, software.
DMS-7000
Optical inspection characteristic test system
EVERFINE Spectral Color DMS-7000 Optical inspection system for flat display Picture

product description:

Mainly used to measure the optical properties of various flat panel displays such as flat-panel TVs/LCD TVs/plasma TVs/backlight modules/OLEDs. The system consists of a high-precision spectral radiometer, a precision five-dimensional mobile rotating platform, a signal generator, display screen electrical parameter measurement, a precision power supply system, and special measurement and control software.

Guideline:

● TCO Certified Displays 6.0

● VESA Flat Panel Display Measurements Standard V2.0

● CEI/IEC 61747-6:2004Liquid crystal and solid-state display devices –Part 6: easing methods for liquid crystal modules –Transmissive type

● GB/T 20528.2—2009/ ISO 13406-2:2001 Ergonomic requirements for working with flat-panel visual displays Part 2: Ergonomic requirements for flat-panel displays

● GB/T 22181.22-2008/IEC 61988-2-2:2003 Measurement method of photoelectric parameters of plasma display devices

● GB/T 24850-2010 Energy efficiency limits and energy efficiency levels for flat-panel TVs

● GB/T18910-2002 General specification for liquid crystal and solid-state displays

● SJ/T 11348—2006 Measurement method for digital TV flat panel displays

● SJ/T 11344—2006 Measurement method for digital TV LCD rear projection display

● SJ/T 11343—2006 General Specification for Digital TV LCD Displays

● SJ/T 11292-2003 General specifications for liquid crystal displays for computers

● SJ/T 11339-2006 General specifications for digital television plasma displays

● SJ/T 11281-2007 Test method for light-emitting diode (LED) display

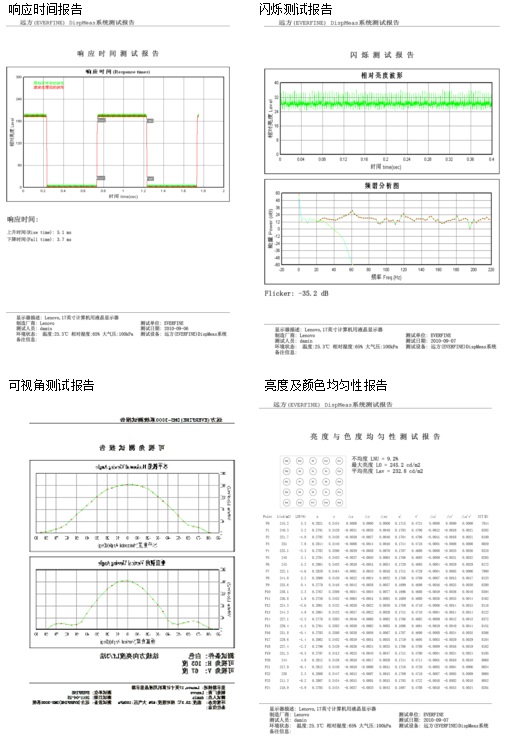

testing report:
