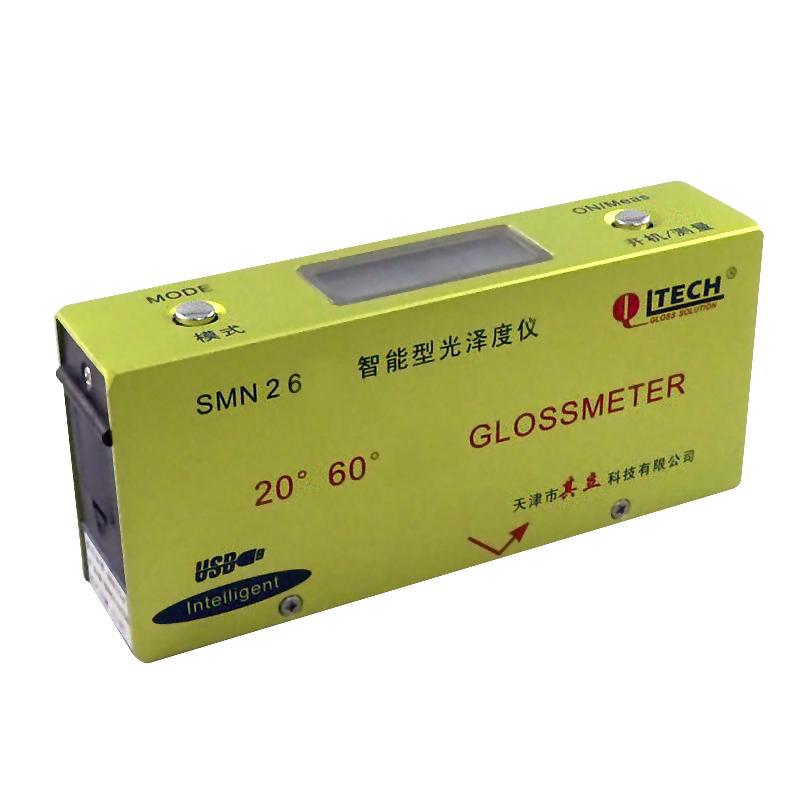

QILI SMN26-H (two angles, fog shadow) intelligent Glossmeter

SMN26-H

Glossmeter

Provide dual angle measurement (20 °/60 °) and automatically calculate the fog shadow value, Measurement range 0~2000GU (20 °); 0~1000GU (60 °), Repeatability +/- 1.2GU, reproducibility 0.4GU.

Overview of SMN26-H (two-angle, haze) fully intelligent gloss meter

The SMN26-H haze gloss meter is designed and produced using the haze standard American standard ASTMD4093, as well as the glossiness standard ISO2813, foreign standards ASTMD523, DIN67530 and Chinese standards GB9754, GB9966 and GB/T13891. All technologies have reached and exceeded Requirements for first-level working machines in the appraisal procedures of JJG696-2002 "Mirror Glossmeter and Glossiness Plate".

fog shadow:

A good quality surface should have a clear and bright appearance. A milky appearance can occur due to the microstructure resulting from poor pigment dispersion in the paint. This effect becomes a fog shadow. Sometimes it is difficult to distinguish the degree of haze with a 20°
gloss meter. However, you can use a second angle to measure and distinguish these materials and compare the difference between the two readings.

SMN26-H is designed according to the American standard ASTM D4039, and the haze value is defined by the difference between 60 degrees gloss and 20 degrees gloss. That is, haze value = 60 degrees gloss - 20 degrees gloss.

The fully intelligent SMN26-H can automatically calculate the haze value for you, and can also be used as a dual-angle gloss meter.

Mainly used

1. Automobiles, home appliances, musical instruments, furniture and other industries: surface gloss measurement of high-gloss paints and coatings such as automobiles and pianos.

2. High-gloss surface of metal and electroplated layers.

Features

1. Small size, light weight, truly fully intelligent portable model.

2. Double-angle calibration and measurement can be completed with one click, which is convenient and fast.

 3. Two button operation, one button for measurement and one button for conversion.

 4. It can carry out statistical measurement of data and automatically calculate the average value and deviation value.

 5. Real USB data communication interface.

 6. Super power-saving design, it will automatically shut down two minutes after the last operation. One AA battery can measure 100,000 sets of data.

7. Automatically calculate haze value

Packing list：Host x1, Standard board x2, Plastic Encasement box x1, Instruction manual x1, Certificate x1, Wiping mirror cloth x1, External Encasement carton x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
