TQC Sheen SH0530 mechanized scratch testing machine

SE
TQC Sheen mechanized scratch test machine SH0530 test panel size is 100x150x1.6mm, thickness is 0.3mm, SH0530 scratch test machine is suitable for testing the Hardness value of coatings.
$9168.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con

TQC sheen SH0530 Mechanized scratch testing machineSPEC

TQC sheen SH0530 Mechanized scratch testing machineDetails

TQC sheen SH0530 Mechanized scratch testing machinePacking list

SKU
NB020975
Scribe traverse speed
1.35mm/s
meet the standard
ISO 1518-1
Load (loading) range
20N
Power supply Voltage
220-240V/50Hz
stylus material
Tungsten carbide hemisphere
SH0530
Mechanized scratch testing machine

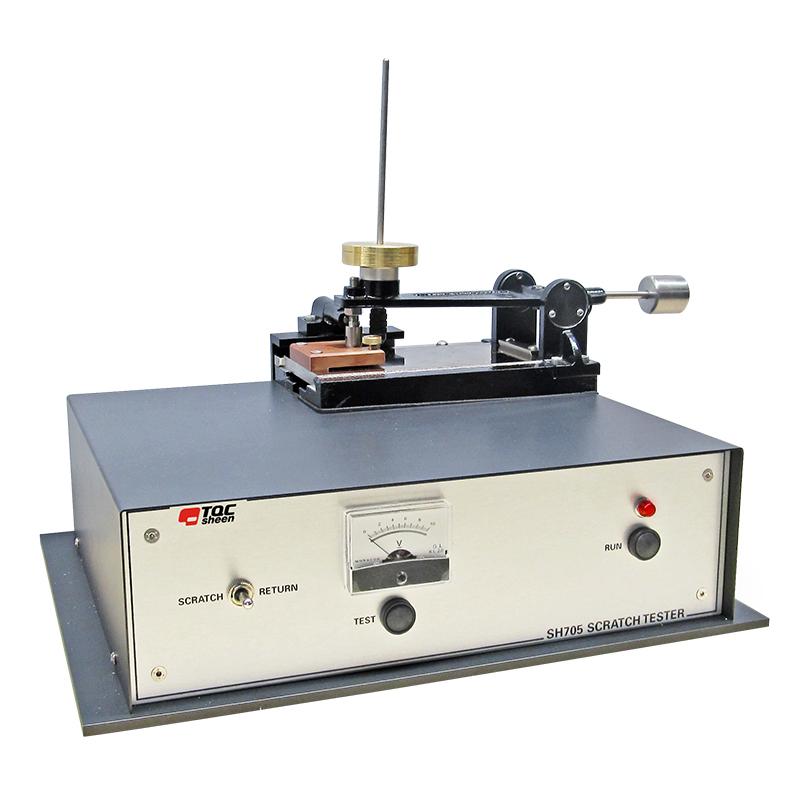

TQC Sheen SH0530 mechanized scratch testing machine Picture

Introduction

The Mechanized Scratch Tester is dedicated to the evaluation of coating hardness based on the scratch resistance method.

Clamp the test plate tightly and move it slowly while scraping the surface with a stylus or alternative tool. Depending on the test procedure, specified or variable loads can be applied to obtain varying degrees of failure, from traces to destruction. The voltmeter indicates the contact between the tool and the metal sample substrate. Maximum panel size: 100x150x1.6mm (0.3mm coating).

The mechanized scratch Tester has a weight setting required by ISO 1518-1. Weight groups specified in the previous international standard ISO 1518 can be selected.

Product display

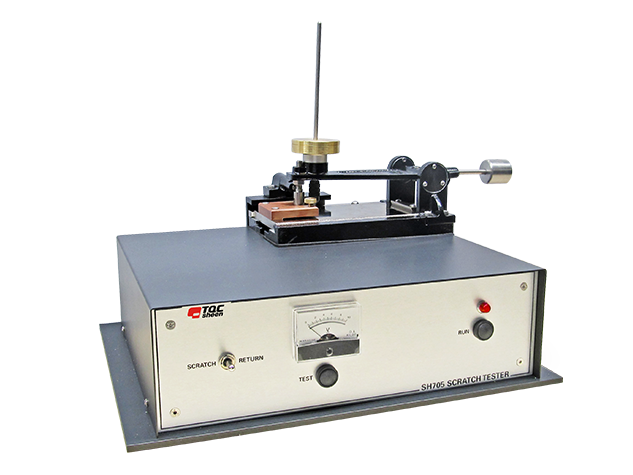

TQC Sheen Mechanized Scratch Tester SH0530 Showcase

FAQ
QDo you have the mechanized scratch test machine involved in ISO1518?
A The SH0530 mechanized scratch test machine can
