TQC Sheen SH1018 paints coating bar 38 µm film thickness 180mm film width

The application width of TQC Sheen SH1018 paints coating bar is 180mm, the film thickness is 38 microns, it is a wire-wound coating rod, SH1018 paints coating bar adopts high-grade wear-resistant stainless steel, good corrosion resistance.
Model：
Certificate
Contact
Details SPEC

TQC sheen SH1018 Mayer RodsSPEC

TQC sheen SH1018 Mayer RodsDetails

TQC sheen SH1018 Mayer RodsPacking list

SKU
NB020992
Production process
Wire-wound
WFT
38μm
Total length
300mm
Application width
180mm
grip width
60+60mm
material
stainless steel
SH1018
Mayer Rods

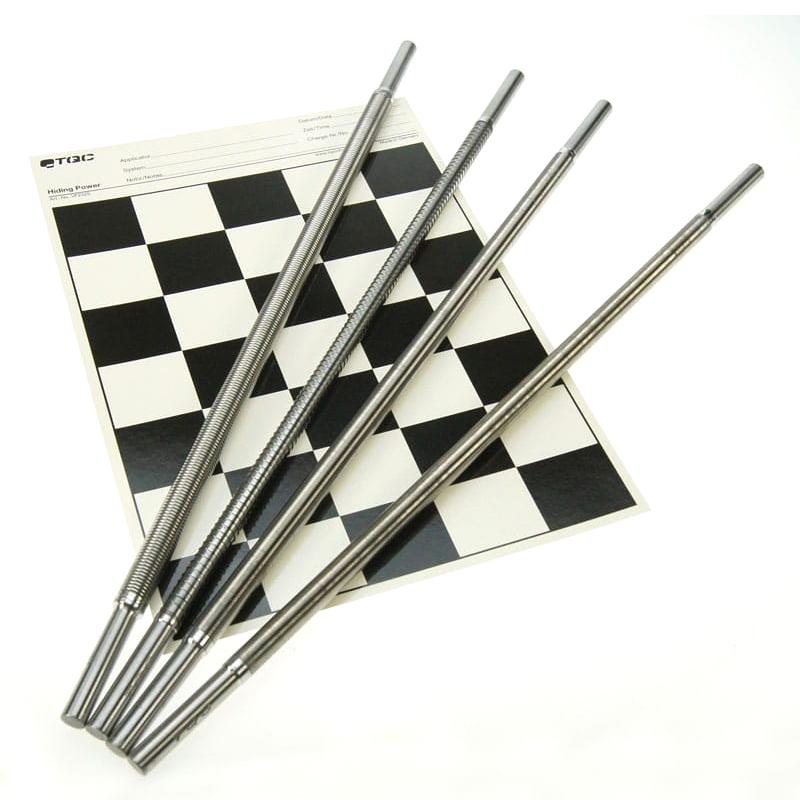

TQC Sheen SH1018 paints coating bar 38 µm film thickness 180mm film width Picture

Introduction

The coating width of the Dutch TQC filament wound experimental coating wire rod is 180mm, and the thickness of the wet film that can be prepared is 0~300μm, which supports customization.

Wire bar applicators, also known as threaded wire bars, are ideal for preparing films on paper or plastic. In addition, it is also suitable for film making on soft substrates. TQC imported scraper is made of stainless steel, which has good acid and alkali resistance. The imported scraper can be used for the automatic coating machine.

TQC Sheen SH1018 Paint Scraper

Product parameters

ModelWet film thicknessCoating widthOverall lengthStraightness
Materialcraft
SH06320μm180 mm440mm< 50 μmstainless steelWinding
SH01684μm
SH02326μm
SH02628μm
SH063110μm
SH067612μm
SH070014μm
SH072816μm
SH075118μm
SH079920μm
SH085624μm
SH089726μm
SH092128μm
SH094130μm
SH096532μm
SH097834μm
SH099436μm
SH101842µm
SH104240μm
SH109146μm
SH800748μm
SH114450μm
SH121656μm
SH123160μm
SH126666μm
SH128070μm
SH131476μm
SH134180μm
SH137288μm
SH0326100μm
SH0797120μm
SH0919128μm
SH1686150μm
SH0329200μm
SH0338300μm
SH2005customize

Optional

实验涂膜测试卡纸

压印床涂布台

Laboratory small automatic Film Applicator

FAQ
QCoating contains 44%, and it is expected to make Dry-Film 17 microns. Is this suitable?
A This model is suitable.
