RDS 24 #3/8 "Mayer Rods WFT 54.9μm Length 400mm

SE
Wire-wound, wet film thickness 54.9μm, diameter 9.52mm, Total length 400mm, Spreader width 300mm, material stainless steel, Wire diameter 0.61mm.
$161.00/piece
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

RDS 24# 3/8" Applicator rod 3/8 "SPEC

RDS 24# 3/8" Applicator rod 3/8 "Details

RDS 24# 3/8" Applicator rod 3/8 "Packing list

SKU
NB000021
Production process
wire-wound
WFT
54.9μm
diameter
9.52mm
Total length
400mm
application width
300mm
Grip Width
50+50mm
material
stainless steel
Wire diameter
0.61mm
24# 3/8"
Applicator rod 3/8 "
Wire-wound, wet film thickness 54.9μm, diameter 9.52mm, Total length 400mm, Spreader width 300mm, material stainless steel, Wire diameter 0.61mm.

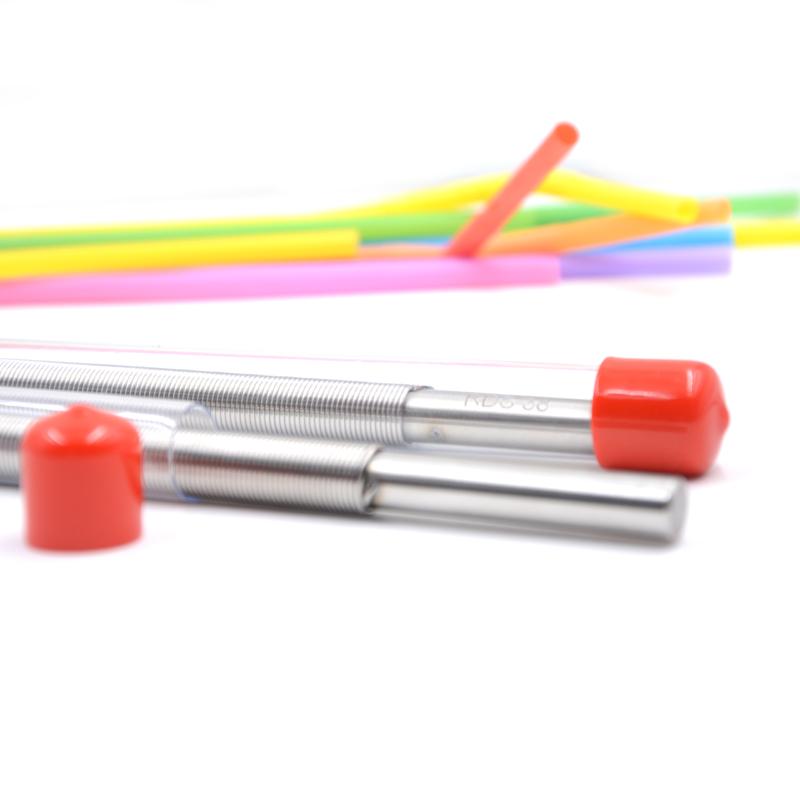

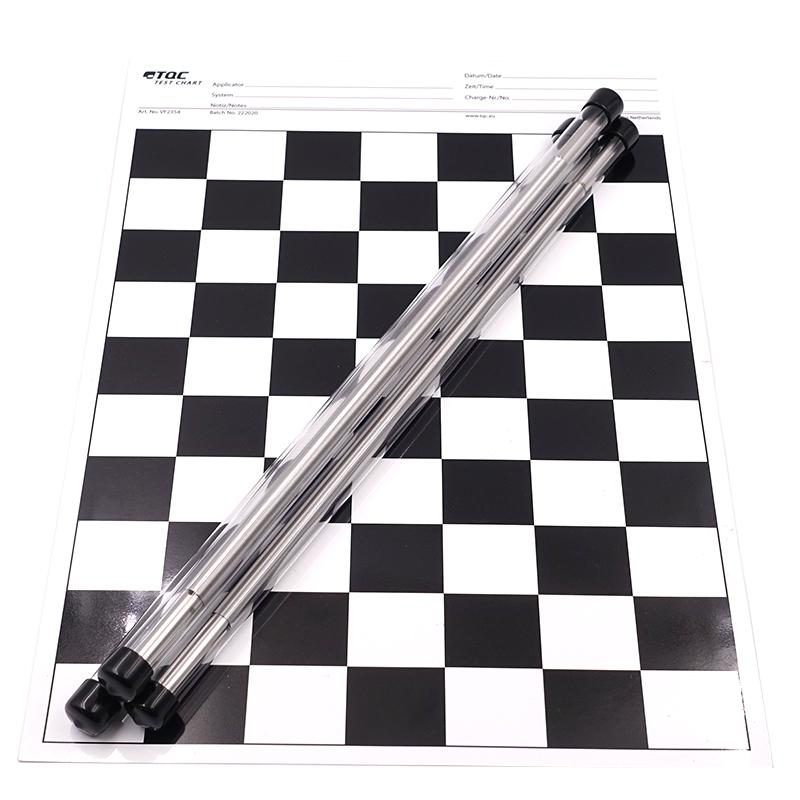

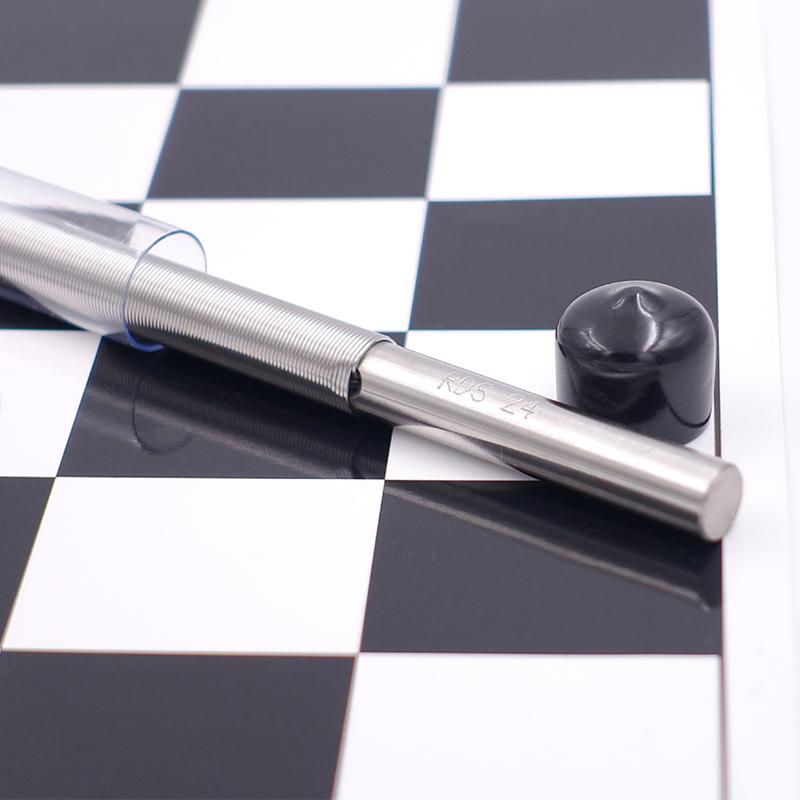

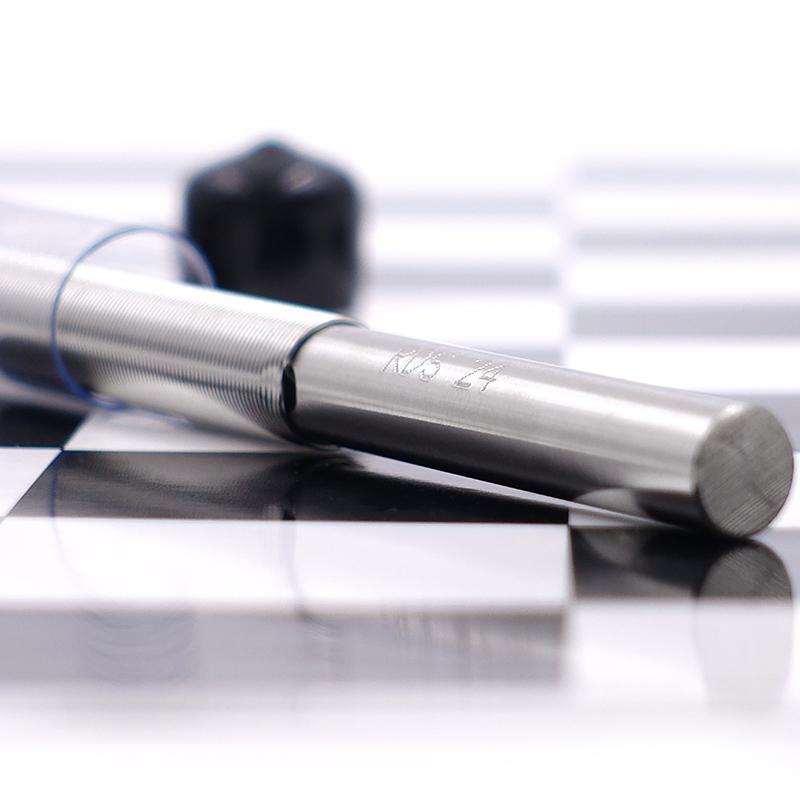

RDS 24 #3/8 "Mayer Rods WFT 54.9μm Length 400mm Picture

RDS coating Rods Figure 1

RDS coating Rods Figure 2

RDS coating Rods Figure 3

RDS coating Rods Figure 4

RDS coating Rods Figure 5

RDS coating Rods Figure 6

RDS coating Rods Figure 7

RDS coating Rods Figure 8

RDS coating Rods Figure 9

RDS coating Rods Figure 10



FAQ
QDo you have a 24 #Spreader Stick?
A Hello, 24 #is a stick number only available in the United States RDS, and the film Film thickness is 54.9μm.
QDoes the RDS Mayer Rods need to be scraped with a handle?
A Hello, the RDS Spreader stick does not need a handle, and there are 5cm grip parts at each end of the stick.
QHello, there are 3 different specifications for the diameter of the wire rod. Is there any difference between them?
A Hello, the Spreader effect of different diameters of RDS Mayer Rods is the same.
QIs your scraper imported?
A Hello, yes, this one is RDS imported from the United States, and we at NBchao. Com Mall are the Chinese general agent of RDS.
QDo you support customization? Such as wet film thickness and length?
A Spreader rod length and main rod diameter support customization, but wet film thickness RDS has provided dozens of specifications covering more than 200 microns, and in principle does not accept customization.
QI would like to ask, how much is the difference between wet film thickness and dry film? Is there a relationship between film thickness and diameter?
A Hello, the difference between wet film thickness and thickness of dry film is affected by the Coating solids. It depends on your Coating solids for conversion. Film thickness and diameter have nothing to do.
QCan you use this Rod Film Applicator to scrape TEMPO oxidation pulp? How to choose?
A Yes, there are already Cases. Select the appropriate film Film thickness according to your needs. If you don't know, you can refer to the Mayer Rods selector provided by NBchao or consult NBchao technicians. Thanks for the consultation.
QDo you have the Applicator rod involved in GB/T13217.1?
A The 24 #3/8 "Applicator rod will do
QI need an RDS24 wired Mayer-Rod. Is there any difference in the effect of different diameters?
A Diameter different wet film thickness is the same, the same film effect.
QCan you send us this No. 24 oil paint scraper quotation?
A Hello, the quotations of NBchao. Com Mall are all in electronic form. Customers can add the No. 24 oil paint scraper to the purchasing cart, and then click to generate a quotation. Thank you for your consultation!
