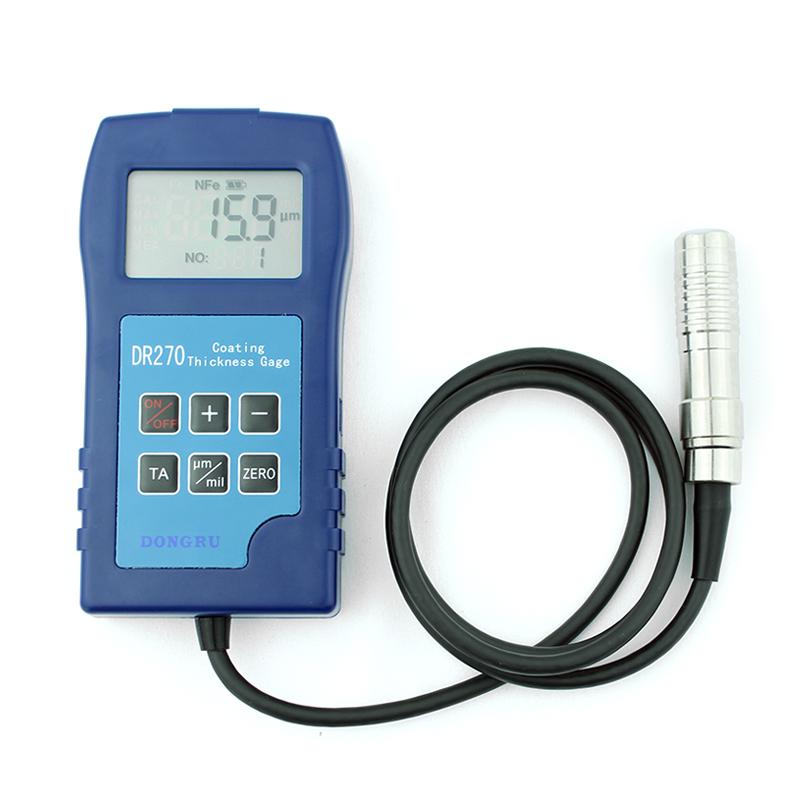

DONGRU DR270 Coating Thickness Gauge adopts eddy current thickness measurement principle nondestructive measurement nonmagnetic metal matrix

DR270

Coating Thickness Gauge

EDDY Current Coating Thickness Gauge, thickness range 0~1250μm, accuracy of +/- 3%, thinnest substrate 0.4mm, split NF probe, can store more than 800 measurement data, two and zero point calibrated.

Product Description

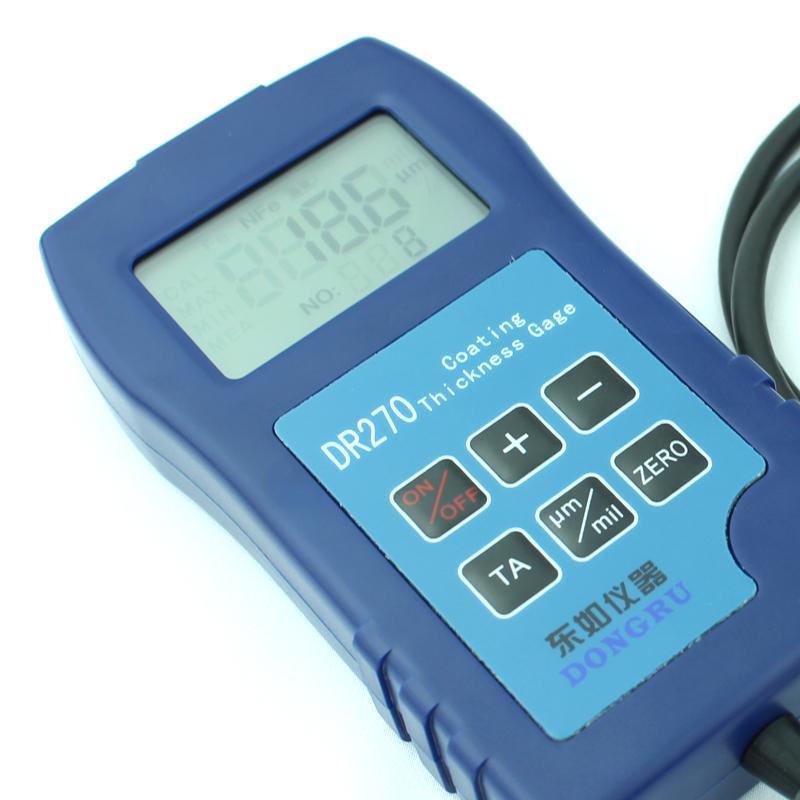

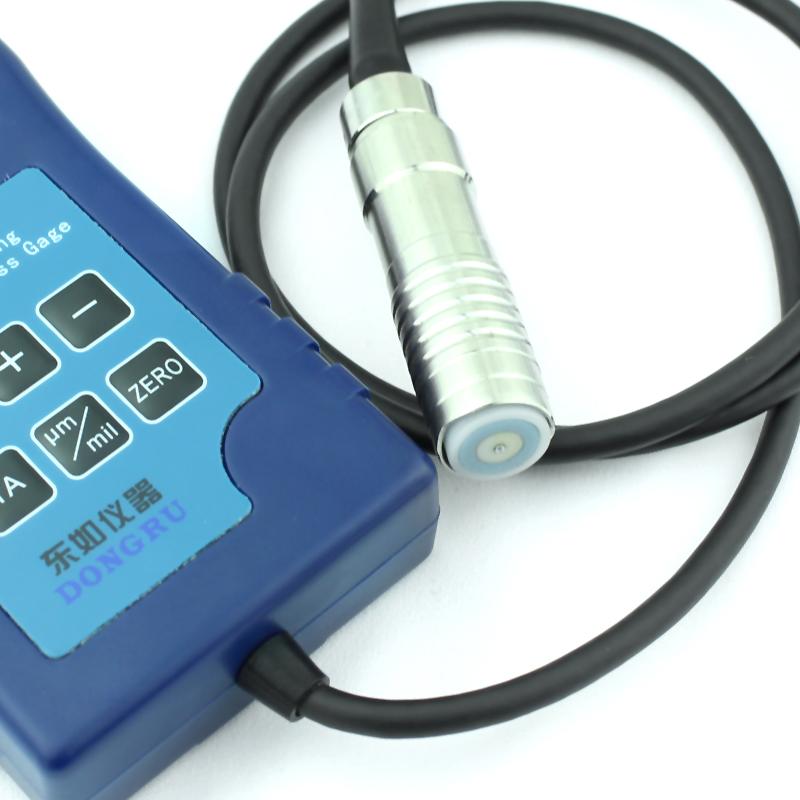

Dongru DR270 coating Thickness Gauge is a digital display eddy current Thickness Gauge without a built-in probe. It is easy to measure the thickness of the coating surface of the measured object at a long distance by connecting the probe and the thickness measuring host through a connecting line. The sensitivity of the probe High, and use high-quality components to ensure the stability and accuracy of the measurement. The DR270 coating Thickness Gauge has a data storage function and can be connected to a printer to print measurement data, which is convenient for subsequent data management.

Dongru DR270 coating Thickness Gauge adopts the principle of eddy current thickness measurement to realize non-destructive measurement of non-magnetic metal substrates, such as non-conductive coating thickness on aluminum, copper, and stainless steel. Widely used in paint, powder, rubber, electrophoresis, anti-corrosion layer, enamel, enamel, etc.

Features

Simple operation, fast test speed, good sensitivity and high measurement accuracy

Large capacity storage, can store more than 800 measurement data

Various testing methods:

Continuous (CONT INUE) and single (SINGLE) measurement methods

There are four statistical functions:

Maximum value (MAX), minimum value (MIN), average value (MEA), measurement times (No)

Provide intelligent operation process:

The operation process is marked with a buzzer (single measurement mode)

Automatic identification of ferrous and non-ferrous substrates

Metric and imperial conversion μm/Mil

Large screen display, backlight display mode, low Voltage indication

Manual/automatic shutdown function

Connect to a computer for communication, read out stored data for saving or printing (applicable to U-type host)

Two calibration methods are available:

Zero-point calibration and two-point calibration

Instructions for use

1) After the DR270 coating Thickness Gauge is installed with the battery, press the "ON/OFF" button to turn it on, and after the buzzer sounds, the LCD will display "0".

2) The DR270 coating Thickness Gauge automatically enters the measurement state, and directly presses the probe vertically and quickly onto the coating on the surface of the workpiece.

3) The DR270 coating Thickness Gauge automatically measures the coating thickness through the probe, and displays the thickness value on the display screen (note: keep the probe vertical when measuring)

Maintenance

1. Storage temperature of DR270 coating Thickness Gauge: 0℃~40℃, Relative Humidity ≤85%.

2. When the DR270 coating Thickness Gauge is not in use, the battery should be taken out, and the probe and diaphragm should be cleaned regularly.

3. Keep away from strong electromagnetic fields, oil, heavy dust, and humid places, and prevent collisions as a precision instrument.

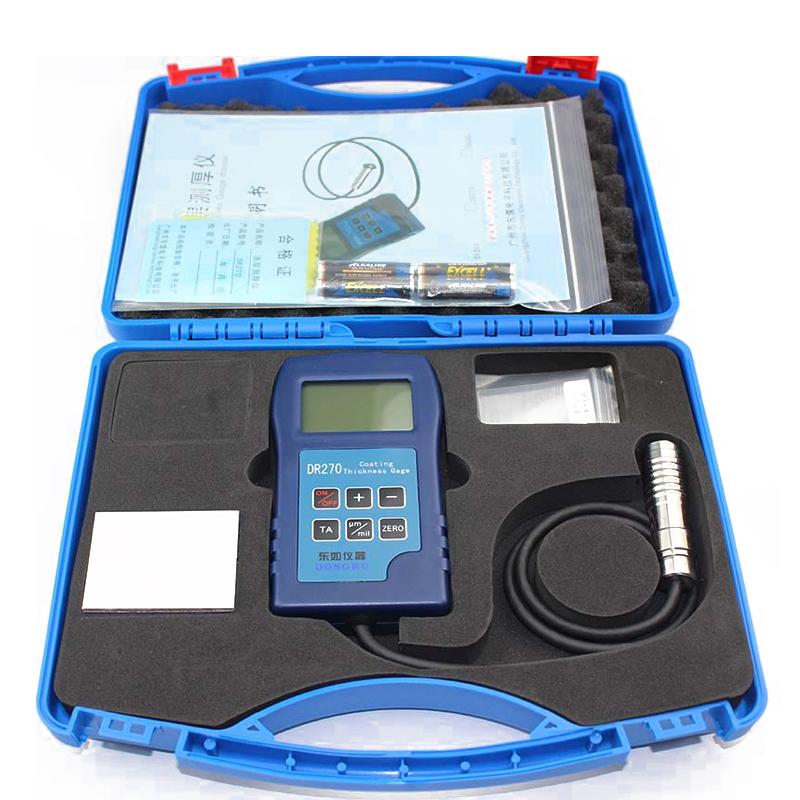

Packing list：host x1, standard sheet x1, aluminum substrate x1, battery x3, manual x1, certificate x1, cleaning cloth x1.

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
