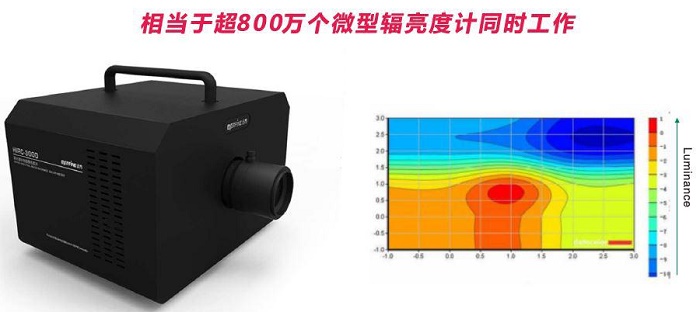

EVERFINE HIRC-3000 High Light spectrum image luminance meter

HIRC-3000

Light spectrum luminance meter

The HIRC-3000 hyperspectral image luminance meter draws inspiration from remote sensing technology in the aerospace field and adopts new hyperspectral design technology. HIRC-3000 completely subverts the traditional brightness and colorimetry measurement solution and can be called a "multifunctional brightness and Colorimeter". A revolutionary measurement solution that integrates image brightness and chromaticity distribution measurement.

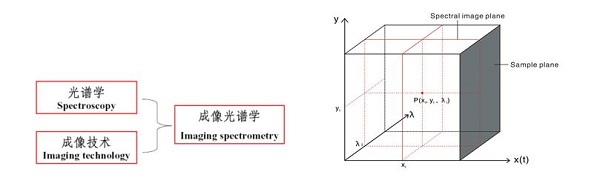

hyperspectral imaging

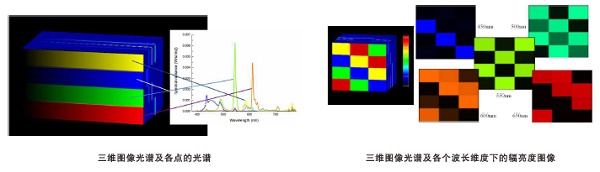

Data expression format L(x,y,λ)

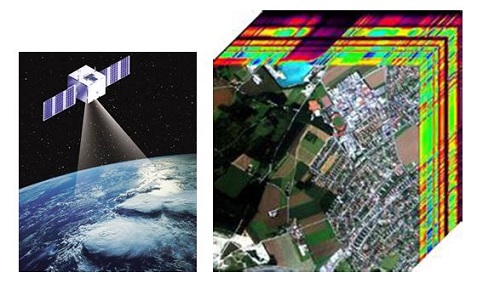

The main features of hyperspectral image measurement in the field of remote sensing
: 1) The richest data: Through the brightness of hyperspectral images, that is, the spectral radiance of any point or area in the field of view, the brightness and chromaticity parameters of each point can be obtained, and the Accurately analyze parameters such as brightness uniformity and chromaticity uniformity in the entire or any area. The richness of data is unmatched by any previous luminance meter.

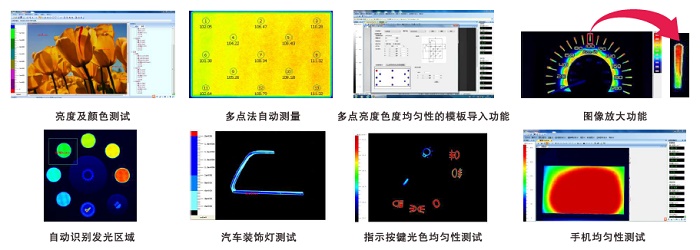

2) Very maneuverable: all parameters can be accurately obtained through one measurement. Using technology, HIRC's hyperspectral implementation can be achieved without mechanical scanning, with higher stability and repeatability. At the same time, powerful software functions enable all parameters to be automatically obtained.

3) High measurement accuracy: The relative spectrum and accurate color data of each small area of ​​the luminous surface can be obtained, avoiding the spectral mismatch problem of traditional tristimulus value luminance meters, and the brightness and color measurement accuracy is extremely high. It is especially suitable for precise analysis occasions such as LED displays, instrument panels, flat panel displays, and OLEDs.

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
