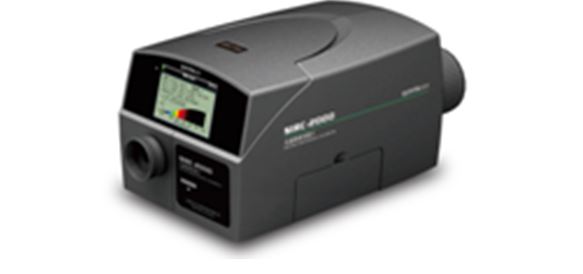

EVERFINE SIRC-2000 Light spectrum image luminance meter

SIRC-2000

Light spectrum image luminance meter

SIRC-2000 spectral image luminance meter is the world's new generation of luminance meter. It adopts a number of technologies to overcome the shortcomings of the original luminance meter. It can accurately analyze two-dimensional brightness images and obtain spectrum, color and other information at designated points.

Unique dual CCD design, integrating two-dimensional brightness image and spectral analysis functions

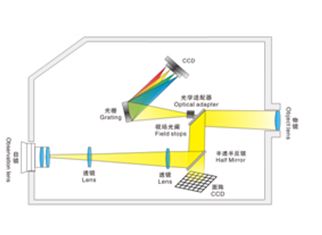

Design schematic

1) Unique dual CCD design to obtain the brightness of each point in the field of view and the spectral color information of the aiming point.
2) Patent number: ZL200910215557.6 ZL200920353426.X

Typical applications
can be widely used in brightness uniformity and chromaticity parameter testing in roads, landscapes, instrument panels, backlights, flat panel displays, touch screens, projection screens and other fields.

                                          Innovative brightness test solution: more functions and higher accuracy
to overcome the shortcomings of the original brightness measurement

Imaging photometer: can obtain analytical brightness images, but the measurement efficiency is higher.
Aiming point photometer: Although it can achieve high accuracy, surface measurement can only scan point by point.
The SIRC-2000 spectral image luminance meter
overcomes the above-mentioned shortcomings. The measurement is somewhat comprehensive, the parameters are very complete, and through correction, more accurate two-dimensional information can be obtained.

main feature

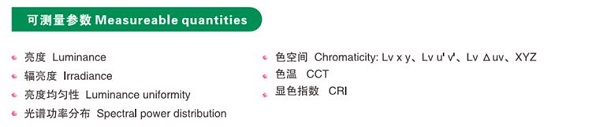

1) Rich measurement functions: brightness, brightness uniformity, spectral power distribution, chromaticity coordinates, color temperature, color rendering index and other parameters
2) Wide measurement range: brightness: 0.1~1,000,000cd/m2, color temperature: 1000K~100,000K, Wavelength: 380nm~1000nm
3) High measurement accuracy

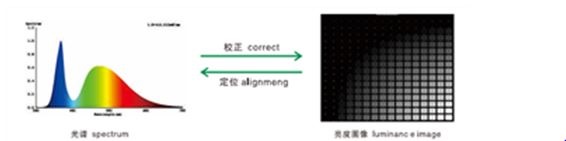

Through digital image positioning, the measured object has high alignment accuracy and good reproducibility.
Aiming point measurement has no spectral mismatch error, can achieve high brightness and chromaticity measurement accuracy, and can be used to correct the
measurement values ​​of other points.

1) FTF LCD and touch screen display interface, suitable for both laboratory and field testing

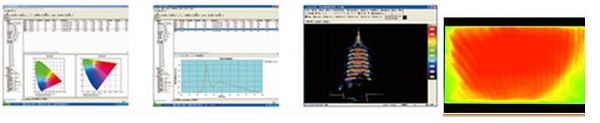

2) Rich software functions

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
