EVERFINE Spectrum color SRC-600 Light spectrum color luminance meter

SRC-600

Light spectrum color luminance meter

Achieve high-precision, high-repeatability, and high-contrast measurement of light color

Main features 1) It integrates spectrum, brightness, and color measurement functions.

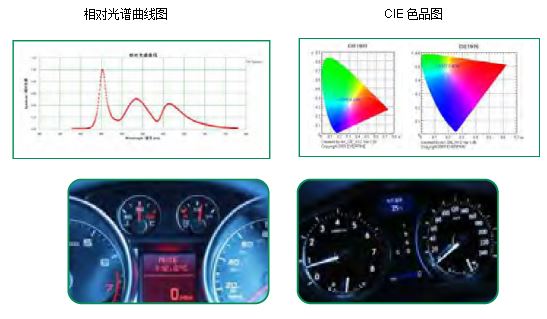

The measurable parameters of the instrument include: radiance, brightness, relative spectral power distribution, chromaticity coordinates, correlated color temperature, color rendering index, etc., covering the light of the measured object. , color parameters, truly making one machine multi-purpose.

2) The high-sensitivity
SRC-600 can achieve a measurement of 0.0001cd/m2, meeting the measurement requirements of extremely low brightness.
3) The ultra-wide measurement range
can achieve an ultra-wide range of the order of 10E9 without adding an attenuation film to meet the needs of high-contrast measurement.
4) High measurement accuracy
uses spectrometry (spectral method) to realize brightness and chromaticity parameters. There is no spectral mismatch error and can be used to calibrate measurement equipment using the color filter method.
5) High resolution
adopts good constant temperature cooling array Detector and high-performance grating, and the good matching of array Detector and grating makes the system have high spectral resolution (can be 0.6nm/pixel).
6) Low polarization error
adopts a unique design to eliminate the influence of polarized light and minimize depolarization (less than 0.2%), thereby ensuring measurement accuracy.
7) The intelligent human-computer interaction interface

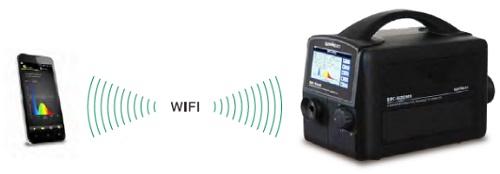

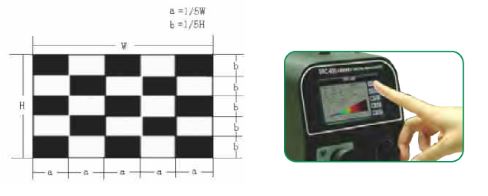

uses TFT liquid crystal and touch screen display interface, and can be tested through wireless remote operation, which is suitable for both laboratory and field testing.
8) Important software functions
support PC and two Operating Modes of remote control and local control,
support automatic spectrum calibration,
and provide users with the function of self-checking Wavelength Accuracy.

Storage function: SD card

Can store 200 sets of test data.

9) Brightness accuracy: ±2% reading + 1 digit (according to national metrology verification regulations JJG211-2005)

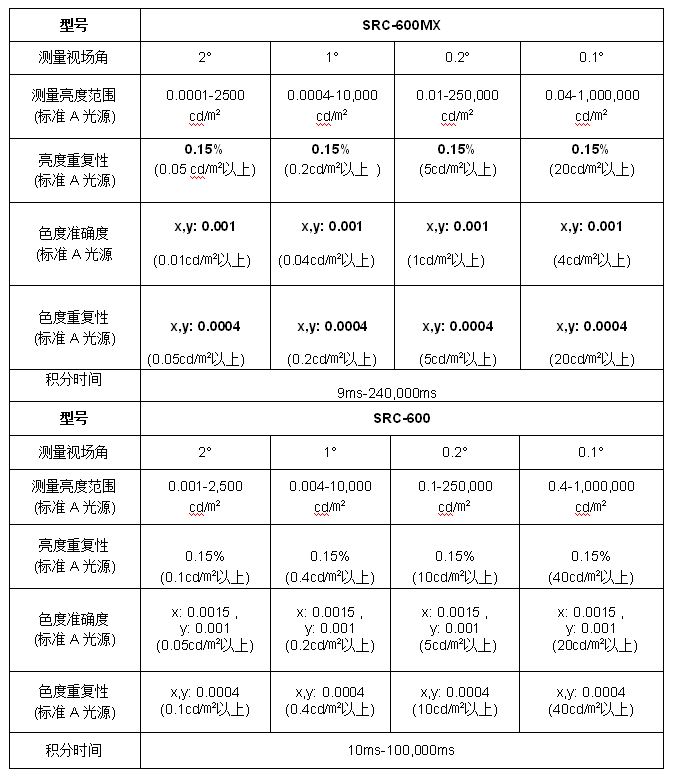

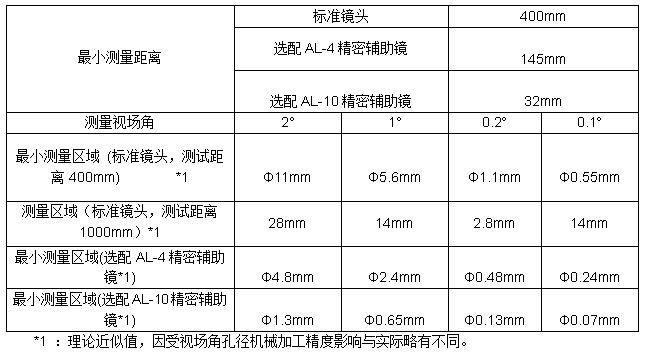

Technical indicators

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
