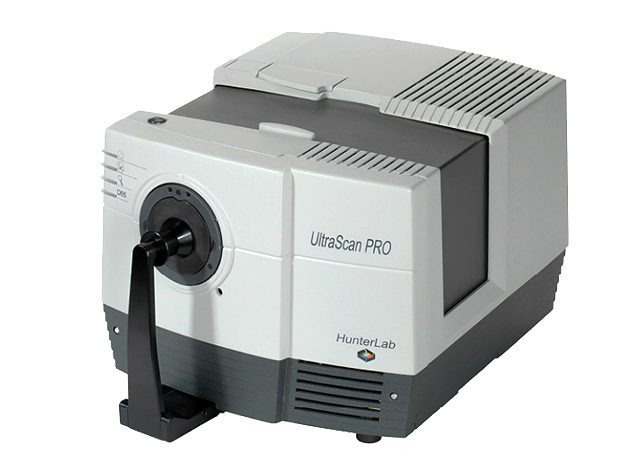

HJUNTERLAB hunterlab UltraScan PRO Colorimeter

UltraScan PRO

Colorimeter

UltraScan PRO is an ultra-high-precision professional Spectrophotometer for rigorous scientific research and quality control. It measures not only reflected and transmitted color, but also spectral reflectance, transmittance and haze. It complies with all CIE, ASTM and USP regulations for color measurement. Its robustness, accurate measurements, and compliance with international standards enable reliable color measurement results for solid, liquid, and transparent samples.

Product performance

Very good performance and long-lasting

The instrument adopts a streamlined housing design and is equipped with professional electronic components to provide stable and reliable service. High-intensity xenon lamps do not emit heat, reduce the effects of ambient light and do not require preheating. Quickly complete tests across the entire spectral range. The spectral data is detected at 2 nm intervals and reported at 5 nn intervals. High-grade stainless steel fixtures, rugged optical tables that eliminate optical partial buckling, and robust electronic components.

Versatility

In addition to the versatility of measurements, the UltraScan PRO has a variety of accessories to grip the sample, so that it will be handled appropriately and accurately measured, regardless of the sample shape. UltraScan PRO is used for rigorous scientific research and quality control. The UltraScan PRO is used to measure the spacing of the transmission section, has enough space for oversized samples, and is equipped with a grip for handling samples. It can measure liquids as small as 0.4 ml of volume, sample reflectance and transmittance down to 350 nm, as well as coated glass, solar eyes, and other objects that block UV rays. Measurement of solid, transparent and translucent samples;

3 reflectance measurement ranges to choose from;

Automatic specular removal and occlusion, which can include and eliminate the effects of gloss and texture when measuring reflected colors, and the position of the transmitted part for measuring is spacious, which can be opened and equipped with buttons for instant measurement;

accuracy

• UltraScan PRO dual-beam optics with a high-precision grating splitter system with an effective bandwidth of 5nm. The diffracted light is detected by a high-sensitivity infrared and 512 diode matrix. Three groups of high-intensity flash xenon lamps greatly improve the color rendering coefficient.

• The spherical geometry provides accurate transmission measurements for scattered objects and turbid liquids.

• Wavelength correction detection tools are available;

• 5nm optical bandwidth;

• The inner coating of the sample wells is machined to match the overall material of the instrument.

Features

• Fast measurement - 2 sec time measurement with 5 nm interval for comprehensive measurement (350 nm-1050 nm)

• Precise correction and control in the UV fraction using the D65 light source ensures accurate measurement of the color of fluorescent materials such as fluorescent brighteners

• 3 types of reflective viewing area: Large Area (LAV): 25mm aperture, Medium Area (SAV): 13mm aperture; Small Area (XSAV): 7mm aperture

• Configurable keys allow for easy testing

• Samples are ergonomically designed to support different types of sample status indicators to display the selected mode

• Professional software EasyMatch QC is used in conjunction with each other

Applications

Lenses, powders, preforms, oils, sphericals, translucent solids and liquids, detergents, resins, pigments, coated glass, carpets, blinds, opaque bottles, adhesives, tiles, fibers, breathable dishes, cloths, panels, lipsticks, dyes, dry chemicals, films, plastic sheets, paint sheets, metals, solids, laminates, etc.

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
