EVERFINE SRC-2A Light spectrum luminance meter

Light spectrum, luminance, Color measurement functions in one, with viewfinder window, built-in large-capacity SD card, to avoid the matching error of hand-held traditional color filter color luminance meter.
Model:

EVERFINE SRC-2A Light spectrum luminance meterSPEC

EVERFINE SRC-2A Light spectrum luminance meterDetails

EVERFINE SRC-2A Light spectrum luminance meterPacking list

SKU
NB002109
Wavelength range
380nm~780nm
Wavelength Accuracy
0.5nm
Luminance Accuracy
4% reading + 1 word
Chromaticity coordinate Accuracy
0.003 (under standard A Light source)
integration time
0.1ms~10000ms
stray light
≤0.5%
Measurement luminance range
0.1cd/m 2 ~20000cd/m2
Measurement distance
1M-Infinity
Communication interface
Type C
Screen size
5 "LCD touch screen
Camera aiming function
support
Power Supply
Lithium battery/power adapter
Dimensions
180mm×80mm×62mm
Weight
560g
SRC-2A
Light spectrum luminance meter
Light spectrum, luminance, Color measurement functions in one, with viewfinder window, built-in large-capacity SD card, to avoid the matching error of hand-held traditional color filter color luminance meter.
EVERFINE SRC-2A Light spectrum luminance meter Picture

Smart, portable, accurate and effective, the smallest visible spectrum color photometer

main feature

1) Integrating spectrum, brightness and color measurement functions into one, the software has powerful functions

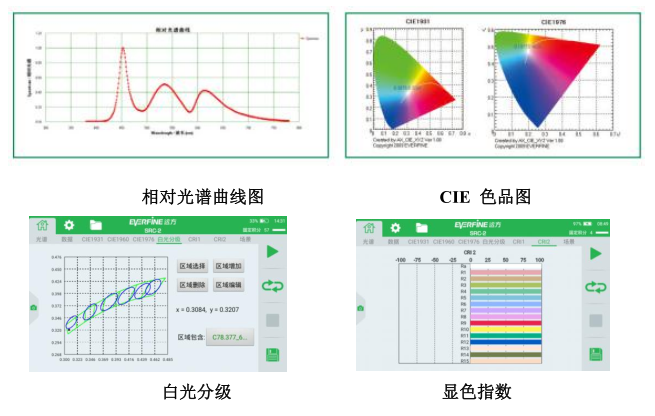

Measurable parameters include: radiance, brightness, relative spectral power distribution, chromaticity coordinates, correlated color temperature, color rendering index, etc., covering the light and color parameters of the measured object, truly achieving multiple uses in one machine.

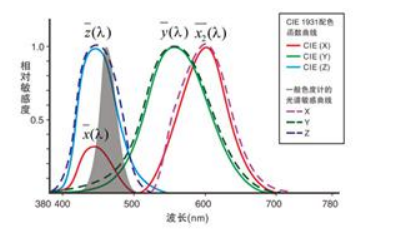

2) Avoiding the matching error of handheld traditional color filter type color luminance meters

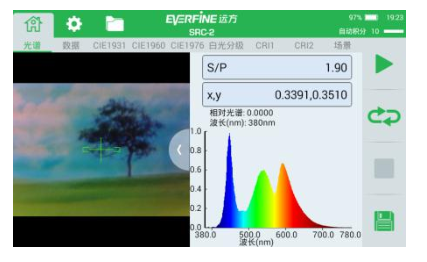

3) With viewfinder window, it is convenient to observe and take photos to record the test scene.

4) Flexible and portable, built-in lithium battery, especially suitable for field measurements

5) Various and convenient data storage and transmission methods

Built-in SD card with large capacity can directly store, view and copy files.

Equipped with USB, wireless WIF I and other communication methods;
