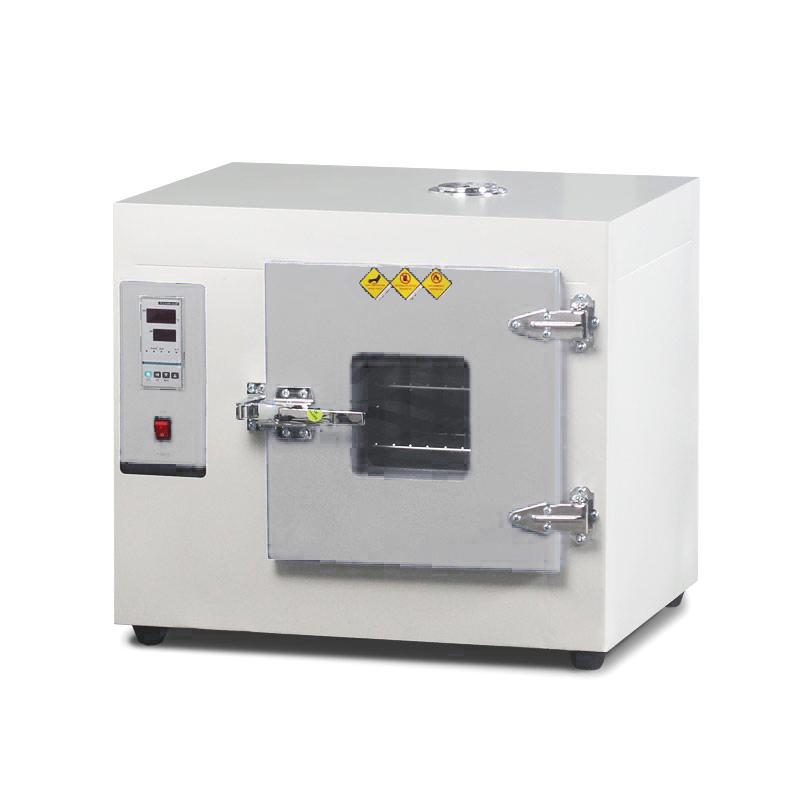

Kenton 101-1AS digital display electric Forced Air Drying Oven, stainless steel inner tank 300 ℃/70L

SE
Kenton 101-1AS digital display electric Forced Air Drying Oven (stainless steel inner tank) is designed with 450 × 450 × 350mm inner tank space, temperature range: room temperature + 5~ 300, 101-1AS has ± 1 ℃ Accuracy and ± 1% fluctuation, this series uses fan forced convection.
$411.00/set
PromotionLoading...
Coupon
Model:
Certificate

Kenton 101-1AS Digital display electric Forced Air Drying OvenSPEC

Kenton 101-1AS Digital display electric Forced Air Drying OvenDetails

Kenton 101-1AS Digital display electric Forced Air Drying OvenPacking list

SKU
NB021104
Temperature range
RT+5~300°C
Temperature fluctuation
±1%
Accuracy
±1℃
Interior size
450*450*350mm
Inner chamber material
stainless steel
Enclosure Material
Metallic paint spraying
thermostat
Microcomputer intelligent PID digital display
Viewing Window
Yes.
Power
220V
Input power
0.8 ~ 1.6Kw
Dimensions
690*760*520mm
101-1AS
Digital display electric Forced Air Drying Oven
Kenton 101-1AS digital display electric Forced Air Drying Oven, stainless steel inner tank 300 ℃/70L Picture



Detailed picture of electric Forced Air Drying Oven 3

Detailed picture of electric Forced Air Drying Oven 4

Detailed picture of electric Forced Air Drying Oven 5

Detailed picture of electric Forced Air Drying Oven 6


Detailed picture of electric Forced Air Drying Oven 8

Recommendations

It is suitable for routine testing in industrial and mining enterprises, basic laboratories and workshops. It is not recommended for long-term uninterrupted use. It is not recommended for samples with high temperature uniformity requirements and large moisture content. For more expensive samples, it is recommended to install an independent temperature limit controller.

Application

It is used for drying, baking, heat treatment, and heating by industrial and mining enterprises, laboratory scientific research units, etc., but it is not suitable for volatile, flammable, explosive and other items to avoid causing explosions.

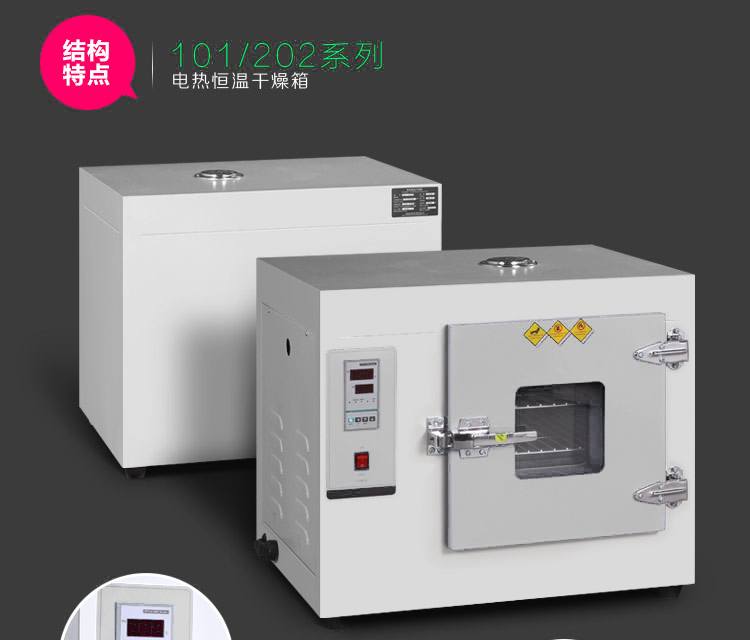

Structural features

1. The thermostat is divided into two types: Dial-Type and microcomputer intelligent PID digital display;

2. The outer casing is spray-painted with metallic paint, and the overall design is beautiful and elegant;

3. The hot air circulation system consists of low-noise fans and air ducts;

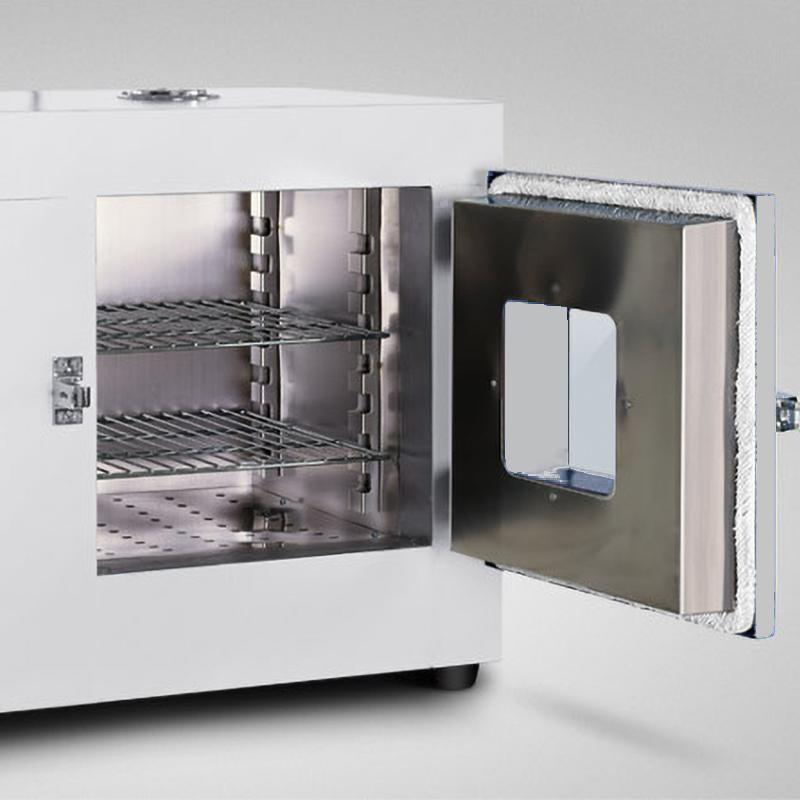

4. The inner tank is divided into two types: mirror stainless steel and galvanized steel plate;

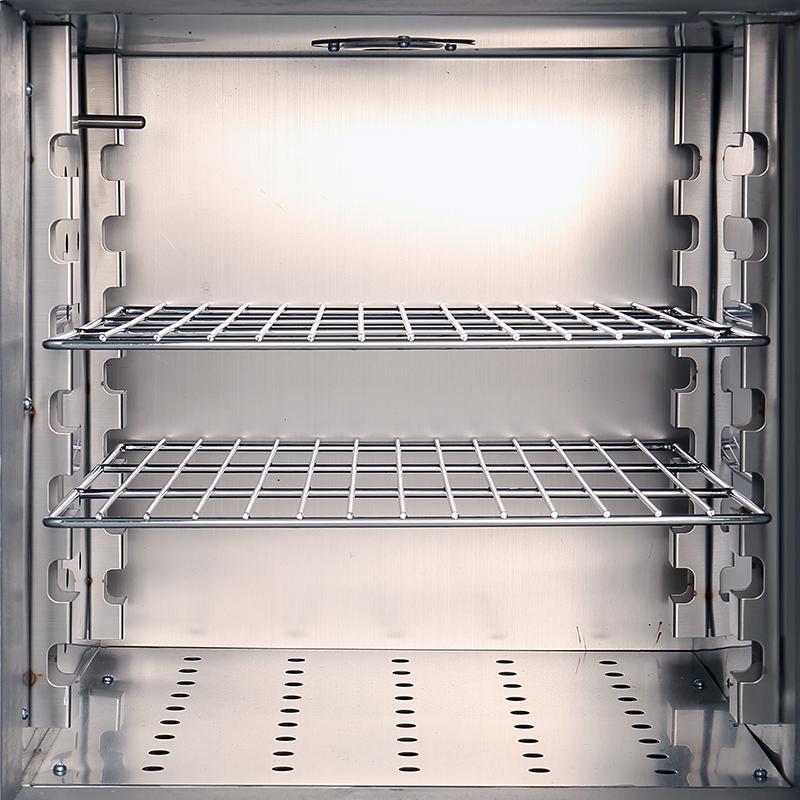

5. The height and number of shelves in the studio can be adjusted to facilitate access to samples of different specifications;

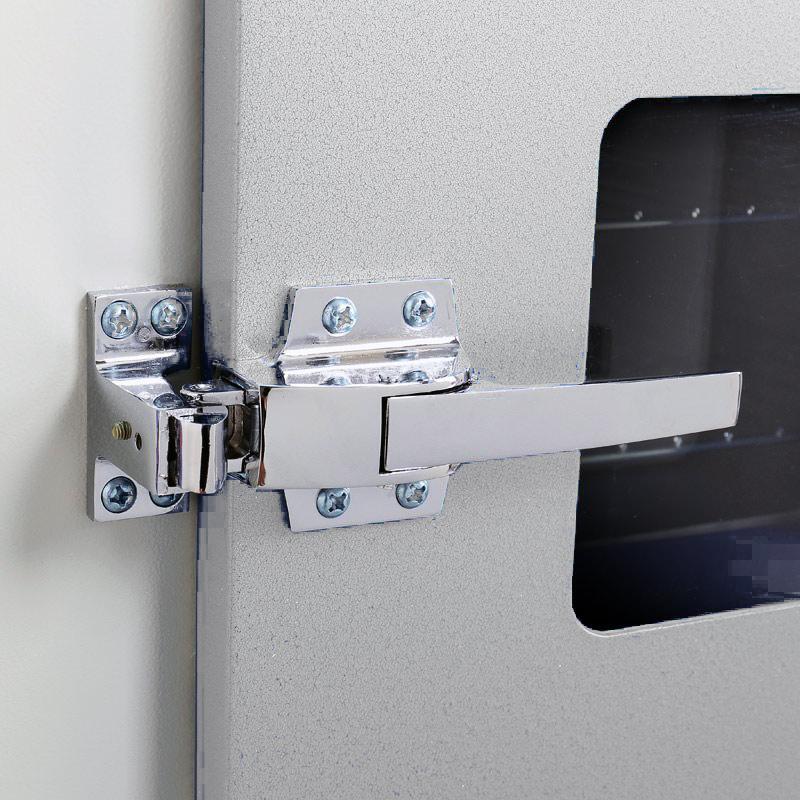

6. The box door is equipped with a double-layer tempered glass observation window, which can clearly observe the contents of the box.

Optional :

1. Intelligent digital display temperature controller with timing function;

2. Independent temperature limit controller.

product specifications

model

Studio specificationsmm

(Height × Width × Depth)

Voltage

power

Temperature control range

Accuracy

Volatility

Pointer type electric blast Drying Oven (galvanized inner tank)

101-0

350×350× 350mm

220V

0.8~1.6Kw

RT+5~300

±1

±1 %

101-1

450×450× 350mm

0.8~ 1.6Kw

101-2

550×550× 450mm

1.6~2.4 Kw

101-3

750×600× 500mm

2~ 3Kw

±2 %

101-4

1000×800× 800mm

380V

3~ 4.8Kw

101-5

1000×1000× 1000mm

4~6

Digital display electric Forced Air Drying Oven (galvanized liner)

101-0A

350×350× 350mm

220V

0.8~ 1.6Kw

RT+5~300

±1

±1 %

101-1A

450×450× 350mm

0.8~ 1.6Kw

101-2A

550×550× 450mm

1.6~2.4 Kw

101-3A

750×600× 500mm

2~ 3Kw

±2 %

101-4A

1000×800× 800mm

380V

3~ 4.8Kw

101-5A

1000×1000× 1000mm

4~ 6Kw

Pointer type electric Forced Air Drying Oven (stainless steel liner)

101-0S

350×350× 350mm

220V

0.8~ 1.6Kw

RT+5~300

±1

±1 %

101-1S

450×450× 350mm

0.8~ 1.6Kw

101-2S

550×550× 450mm

1.6~2.4 Kw

101-3S

750×600× 500mm

2~ 3Kw

101-4S

1000×800× 800mm

380V

3~ 4.8Kw

±2 %

101-5S

1000×1000× 1000mm

4~ 6Kw

Digital display electric Forced Air Drying Oven (stainless steel liner)

101-0AS

350×350× 350mm

220V

0.8~ 1.6Kw

RT+5~300

±1

±1 %

101-1AS

450×450× 350mm

0.8~ 1.6Kw

101-2AS

550×550× 450mm

1.6~2.4 Kw

101-3AS

750×600× 500mm

2~ 3Kw

±2 %

101-4AS

1000×800× 800mm

380V

3~ 4.8Kw

101-5AS

1000×1000× 1000mm

4~ 6Kw

FAQ
QThe workshop needs a drying oven for heat treatment of metal parts. What model is more suitable?
A It is recommended to choose 101-1AS stainless steel liner model. The workshop environment has high requirements for equipment durability, stainless steel liner corrosion resistance, hot air circulation system to ensure temperature uniformity, microcomputer PID temperature control accuracy +/- 1 ℃ can meet the heat treatment process requirements, and can adjust the shelf to facilitate the placement of parts of different sizes.
QKENTON Kenton 101-1AS digital display electric air blowing dryer is how much L?
A 70L
QIs this oven trending? Can it be connected externally?
A Hello, it is trending, but it cannot be connected externally.
QIs the 101 series fan forced convection or natural?
A 101 Series with forced convection
QThis electric blast oven can be applied to GB/T16592?
A OK
