Kenton 101-3AS digital Electric Forced Air Drying Oven stainless steel liner 300 ℃/225L
SE
101-3AS
-
Kenton 101-3 Pointer Electric Forced Air Drying Oven Galvanized liner 300 ℃/225L$ 388.00SE -
Kenton 101-3A digital display electric Forced Air Drying Oven, galvanized tank inner tank 300 ℃/225L$ 410.00SE -
RONGHUA DHG-9101-3A Electric thermostatic blast Drying Oven$ 694.00SE -
Kenton 101-3S pointer electric Forced Air Drying Oven, stainless steel inner tank 300 ℃/225L$ 627.00SE
Kenton 101-3AS Digital Electric Forced Air Drying OvenSPEC
Kenton 101-3AS Digital Electric Forced Air Drying OvenDetails
Kenton 101-3AS Digital Electric Forced Air Drying OvenPacking list
- SKU
- NB021106
- Temperature range
- RT+5~300℃
- Temperature Fluctuation
- ±2%
- Temperature Accuracy
- ±1℃
- Interior size
- 750*600*500mm
- Chamber material
- stainless steel
- Enclosure Material
- Metallic paint spraying
- Thermostat
- Microcomputer intelligent PID digital display
- Viewing Window
- Yes.
- Power supply Voltage
- 220V
- Input Power
- 2~3Kw
- Dimension
- 1050*980*700mm
- material
- steel plate
- principle
- Electric heating produces hot air circulation, forced convection accelerates water evaporation, and digital temperature control.
- function
- Drying, thermostatic, digital temperature control, for drying and heat treatment of materials.
Suggestions for use
It is suitable for routine testing in industrial and mining enterprises, basic laboratories and workshops, and is not recommended for long-term uninterrupted use. Samples with high temperature uniformity requirements and large water content are not recommended. For more valuable samples, it is recommended to install an independent temperature limiting controller.
Scope of application
It is used for drying, baking, heat treatment and heating of industrial and mining enterprises and laboratory scientific research units, but it is not suitable for volatile, flammable, explosive and other items to avoid explosion.
Structural features
1. The thermostat is divided into two types: Dial-Type, microcomputer intelligent PID digital display;
2. The shell is sprayed with metallic paint, and the overall design is beautiful and elegant;
3. The hot air circulation system is composed of a low-noise fan and an air duct;

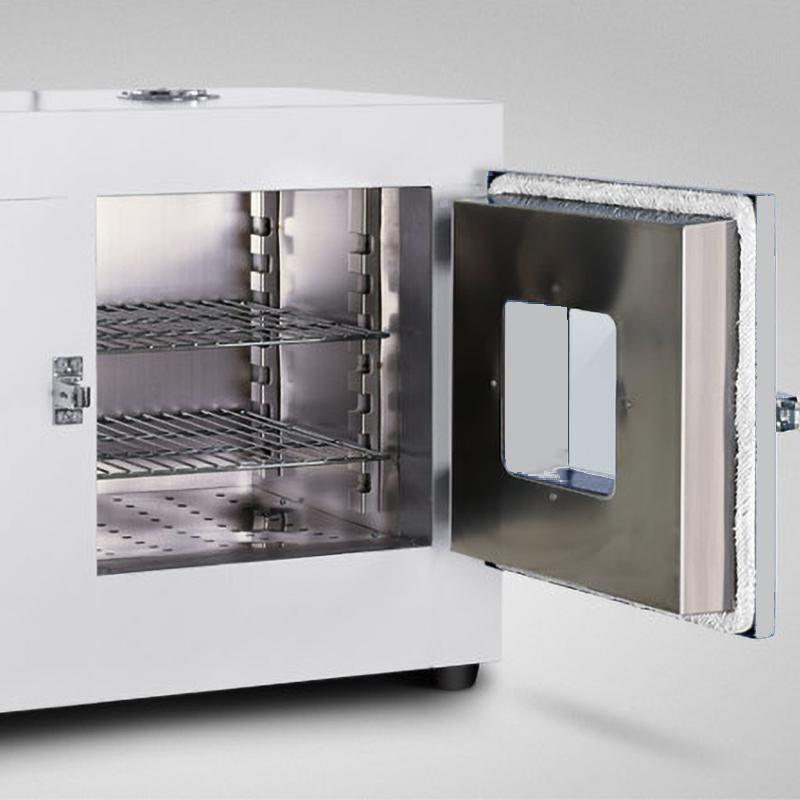

4. The liner is divided into two types: mirror stainless steel and galvanized steel plate;
5. The height and number of shelves in the workshop can be adjusted, which is convenient for accessing samples of different specifications.
6. The box door is equipped with a double-layer tempered glass observation window, which can clearly observe the contents of the box.
Optional accessories:
1. Intelligent digital display temperature controller with timing function;
2. Independent temperature limiting controller.
Product Specifications:
Model | Studio specification mm (Height× width× depth) | Voltage | power | Temperature control range | precision | Volatility |
Pointer type electric heating blowerDrying oven(Galvanized Tank Liner) | ||||||
101-0 | 350×350×350mm | 220V | 0.8~1.6Kw | RT+5~300℃ | ±1℃ | ±1% |
101-1 | 450×450×350mm | 0.8~1.6Kw | ||||
101-2 | 550×550×450mm | 1.6~2.4Kw | ||||
101-3 | 750×600×500mm | 2~3Kw | ±2% | |||
101-4 | 1000×800×800mm | 380V | 3~4.8Kw | |||
101-5 | 1000×1000×1000mm | 4~6 | ||||
Digital display electric heatForced Air Drying Oven(Galvanized Tank Liner) | ||||||
101-0A | 350×350×350mm | 220V | 0.8~1.6Kw | RT+5~300℃ | ±1℃ | ±1% |
101-1A | 450×450×350mm | 0.8~1.6Kw | ||||
101-2A | 550×550×450mm | 1.6~2.4Kw | ||||
101-3A | 750×600×500mm | 2~3Kw | ±2% | |||
101-4A | 1000×800×800mm | 380V | 3~4.8Kw | |||
101-5A | 1000×1000×1000mm | 4~6Kw | ||||
Pointer type electric heating Forced Air Drying Oven (stainless steel liner) | ||||||
101-0S | 350×350×350mm | 220V | 0.8~1.6Kw | RT+5~300℃ | ±1℃ | ±1% |
101-1S | 450×450×350mm | 0.8~1.6Kw | ||||
101-2S | 550×550×450mm | 1.6~2.4Kw | ||||
101-3S | 750×600×500mm | 2~3Kw | ||||
101-4S | 1000×800×800mm | 380V | 3~4.8Kw | ±2% | ||
101-5S | 1000×1000×1000mm | 4~6Kw | ||||
Digital display electric heating Forced Air Drying Oven(Stainless steel liner) | ||||||
101-0AS | 350×350×350mm | 220V | 0.8~1.6Kw | RT+5~300℃ | ±1℃ | ±1% |
101-1AS | 450×450×350mm | 0.8~1.6Kw | ||||
101-2AS | 550×550×450mm | 1.6~2.4Kw | ||||
101-3AS | 750×600×500mm | 2~3Kw | ±2% | |||
101-4AS | 1000×800×800mm | 380V | 3~4.8Kw | |||
101-5AS | 1000×1000×1000mm | 4~6Kw | ||||
- 1SL 144.7-2008《Calibration method of Electric Forced Air Drying Oven》
- 2GB/T 9995-1997《Determination of moisture content and moisture regain of textile--Oven-drying method》
- 3GB/T 6102.1-2006《Test method for moisture regain in raw cotton by oven drying》
- 4GB/T 6978-2007《Test method for the determination of scoured yield of greasy wool - Drying oven method》
- 5GB/T 10514-2012《Determination of free water for nitrophosphate - Oven method》
- 6GB/T 24131.1-2018《Rubber, raw—Determination of volatile matter content—Part 1:Hot-mill method and oven method》
- 7GB/T 30648.5-2015《Paints and varnishes—Determination of resistance to liquids—Part 5: Temperature-gradient oven methods》
- 8SL/T 144.7-2008《Calibration method of Electric Forced Air Drying Oven》
- 9GB/T 32710.10-2016《Safety requirements for environmental testing and conditioning equipment—Part 10: Electric gravity convection ovens and forced ventilation ovens》
- 10GB/T 30435-2013《Electric gravity convection and forced ventilation ovens》
