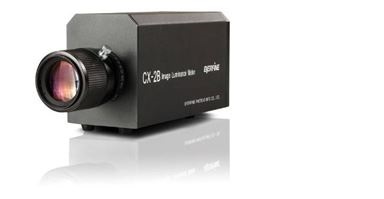

EVERFINE spectral color CX-2A/B imagery luminance meter

CX-2A/B

Imagery luminance meter

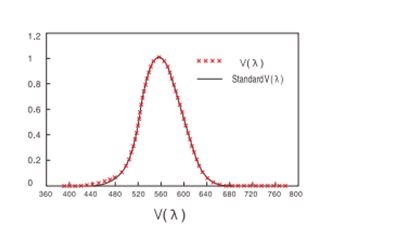

The main features of accurately and conveniently analyzing brightness/chromaticity uniformity:   the V(λ) matching of
high-precision
optical systems can reach national standard level or first-class level.

High dynamic range
adopts high dynamic range imaging technology (HDR), which can accurately measure measurement objects with large brightness differences.
The widest possible brightness measurement range is 0.001~200, 000cd/m2 (depending on the order).
High stability.
Some models adopt professional TE refrigeration and temperature control technology to achieve higher stability and repeatability.
High imaging quality
with large-diameter/high-quality internationally renowned objective lens enables measurement from macro to infinity.
Flexible application of
AC power grid or external DC 5V power supply, USB interface, suitable for both laboratory testing and field measurements.
The software is powerful and suitable for applications in various situations.
It has different professional analysis functions for different applications in different industries to meet the different needs of different industries.
Parameters:
Test functions: single point brightness, multi-point brightness, area (rectangle, ellipse, polygon, circle, etc.) brightness average, maximum value, minimum value, minimum value/maximum value, minimum value/average value, points BIN function, isoluminance color chart, etc.
Brightness range: 0.001~2,000~200,000~20,000,000 under A light source:
Linearity: ±3%
Repeatability: 0.8% or 0.5% (depending on model specifications)
Semiconductor refrigeration technology (function (Depending on model specifications)
Lens: ordinary lens and wide-angle lens are available. Customers can choose different lenses according to the size of the test object.
Measurement mode: single/multiple exposure
Communication interface: USB2.0
power supply: DC 5V
Standard configuration: host, AC adapter, USB data cable, software, aluminum box.
Optional : attenuator, tripod, special connecting cable for outdoor work.
Software functions:
The software has rich functions and good operability.
Versatile software provides excellent operability.
It has professional software analysis functions for small-sized luminous bodies such as instrument panels, backlights, flat panel displays, LED displays, road lighting, etc. to meet the different needs of different industries.

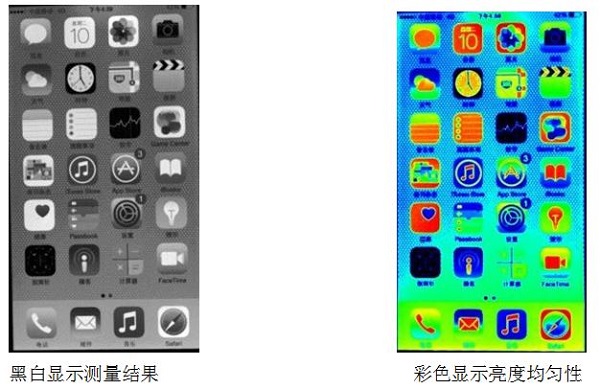

Examples of mobile phone screen measurement for small-sized screens

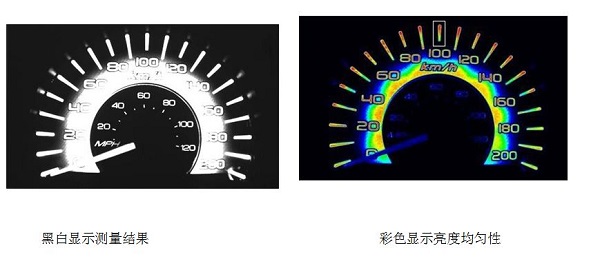

Testing of small luminous surfaces such as instrument panels, indicator lights, and digital tubes

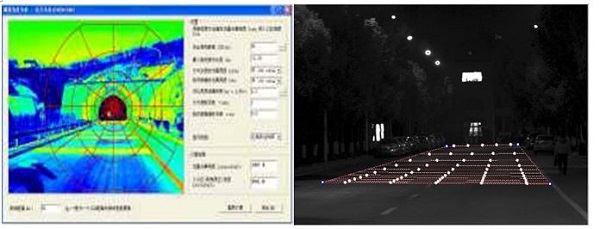

Test analysis of brightness and brightness uniformity of road and bridge projects

It fully complies with standards such as CIE 88-2004 "Lighting Design Guidelines for Tunnels and Underpasses" and GB/T5700 "Lighting Measurement Methods".

Application Guide:

Applications

Widely used in brightness testing of LEDs, LED displays, LCD displays, plasma screens, projectors, OLEDs, backlights, indicators, instrument panels, landscape lighting, traffic lights, car lights, bioluminescent bodies, etc.

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
