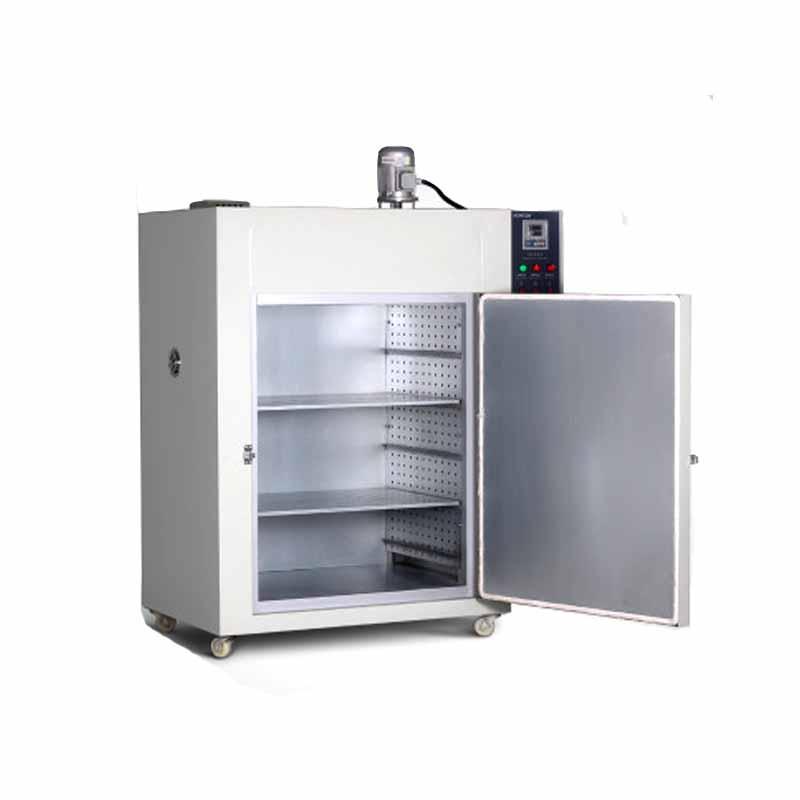

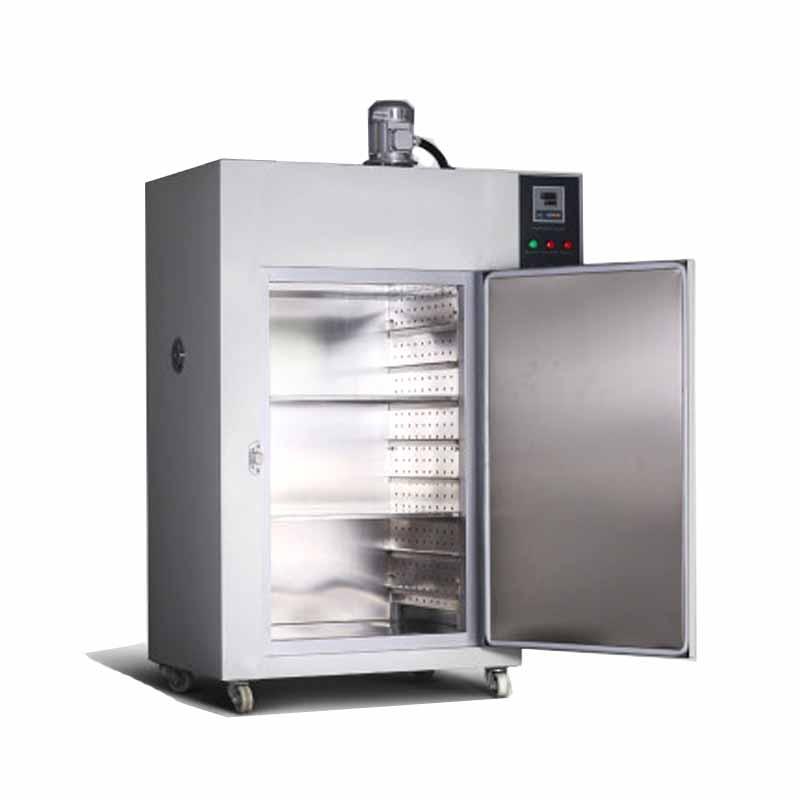

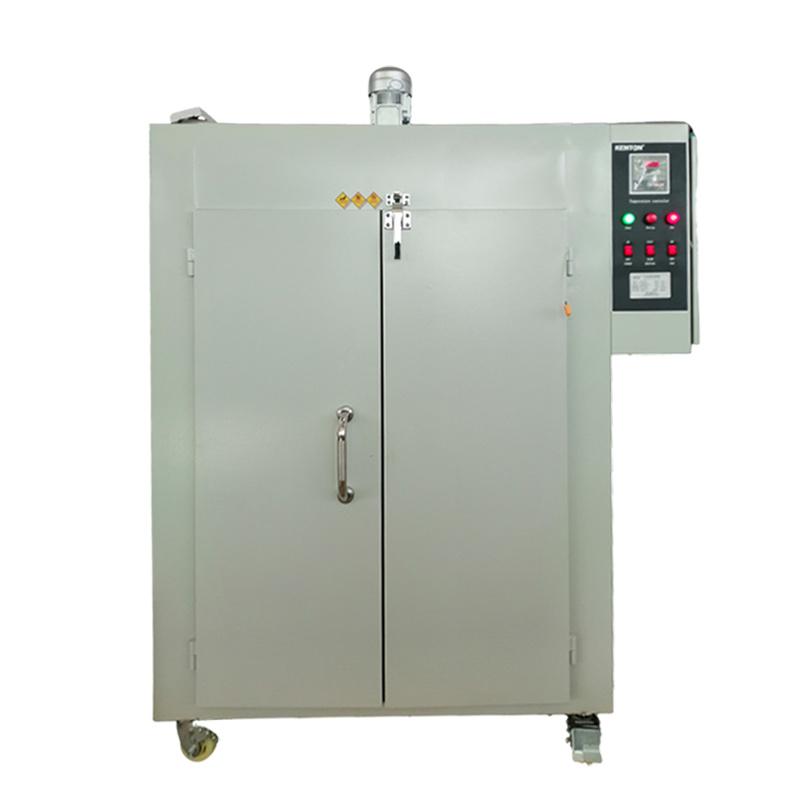

Kenton KH-120C digital display industrial air drying oven galvanized liner with timing

KH-120C

Digital display industrial air Drying Oven

Temperature range RT + 5~ 250 ℃, Temperature Fluctuation +/- 2%, Temperature Accuracy +/- 0.5 ℃, Inner chamber dimensions 1200 * 900 * 800mm, Inner chamber material galvanized steel plate, Timer Range 0~ 99h, Power supply voltage 380V, Input Power 8~ 12kW, Dimension 2000 * 1450 * 1000mm, Enclosure Material Metallic paint spray.

Introduction

KH series industrial Large-capacity Forced Air Circulation Oven is a digital display with intelligent PID self-tuning temperature control, large storage capacity, large diameter centrifugal wind wheel, high power motor, multiple sets of electric heating tubes, rapid heating, optimized air supply and circulation air duct, uniform heat flow , can be used for a long time, with high baking efficiency. Among them, the configuration of model "A" is better than that of model "C", as follows:

1 "A" is equipped with an aluminum casing motor as standard, and "C" is equipped with an iron casing motor (the aluminum casing dissipates heat quickly and is more durable than the iron casing);

2 "A" comes standard with high temperature silicone door seal, "C" asbestos fiber door seal (silicone door seal has better sealing effect and no pollution);

3 "A" is equipped with progressive locking latches as standard, and thicker hinged doors. "C" snap king latch (progressive latch has a better sealing effect);

4 "A" box structure and steel plate materials are thicker.

5 "A" uses high temperature resistant material heating tube, familiar with brand electrical components, more durable.

Application: Batch dehydration and drying of industrial products, which can work for a long time. It is suitable for mass production in industrial and mining enterprises and workshops, and can be used continuously for a long time.

Application

It is used for dehydration and drying of products, such as electroplating industry, electronics industry, alloy jewelry dripping oil, food and plastic industry, leather industry, hardware and other production industries, but it is not suitable for highly volatile, flammable and explosive items, so as not to cause explode. (If there is an explosion-proof requirement, safety facilities such as explosion-proof locks and explosion-proof doors need to be installed).

warn! It is strictly forbidden to put flammable, explosive and volatile items into the box for heating and drying. For high-value materials, it is better to install an independent temperature limiter to set the upper limit of the maximum temperature. Double insurance ensures that the materials will not fail due to the electronic components of the box. Excessive heating can lead to damage.

Structural features

1. Digital display intelligent temperature controller, with microcomputer intelligent PID self-tuning and timing functions;

2. According to the size of the box, single door or double door design, practical and generous;

3. Large-diameter centrifugal wind wheel is adopted to ensure uniform heat circulation;

4. The shell is sprayed with metallic paint, and the overall design is beautiful and novel;

5. The inner tank can be galvanized steel plate or stainless steel plate;

6. This series of products has the characteristics of large storage capacity and fast heating time.

Optional :

1. Sound and light alarm system;

2. Independent temperature limit controller;

3. Explosion-proof locks and explosion-proof doors;

4. Intelligent digital display temperature controller with timing function.

Packing list：host X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
