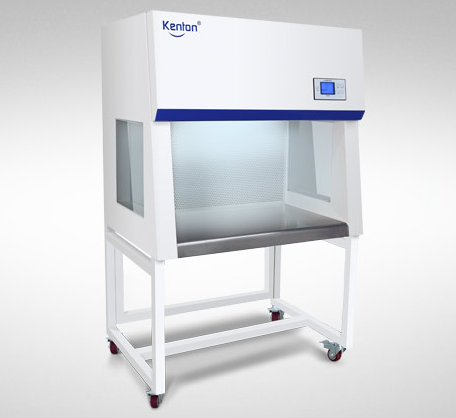

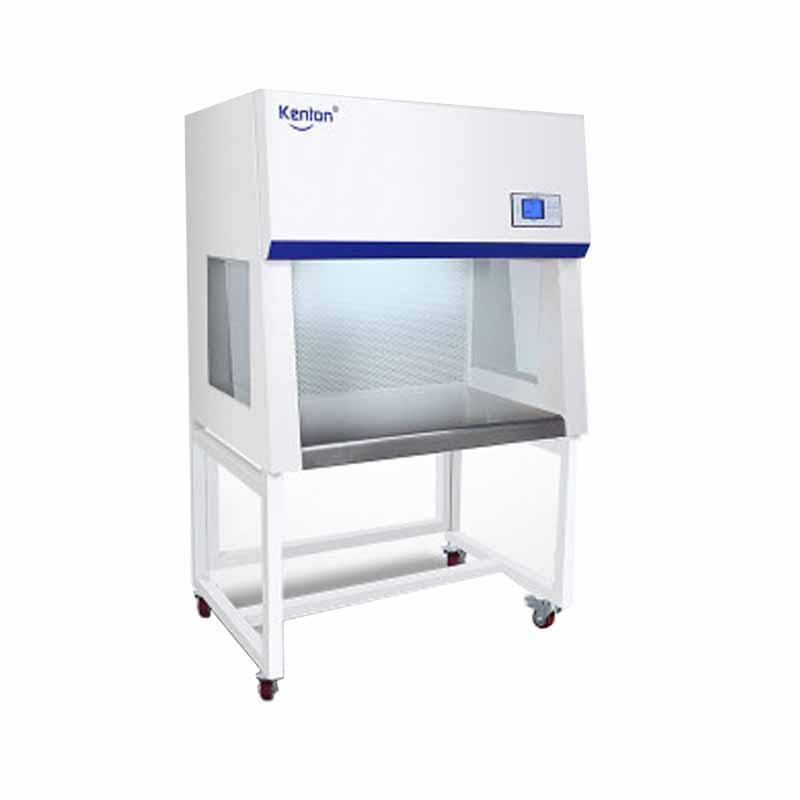

HENGLI JHP-1 LCD Laminar Flow Cabinet single person level
SE
JHP-1
HengLi JHP-1 Laminar flow cabinetSPEC
HengLi JHP-1 Laminar flow cabinetDetails
HengLi JHP-1 Laminar flow cabinetPacking list
- SKU
- NB021291
- cleanliness grade
- ISO Level 5, Level 100 (LIANBANG 209E)
- average wind speed
- 0.1~0.6m/s
- noise
- ≤62dB(A)
- Vibration Half-Amplitude
- ≤3μm
- Filter efficiency
- Efficiency 99.99%
- Illumrination degree
- ≥300Lx
- Dimensions
- 1585*990*735mm
- Workspace size
- 500*830*550mm
- Operating Environment
- Ambient Temperature 10~30 ℃, Relative Humidity below 70%, no obvious vibration and dust around
- Nominal Power
- 200W
- Power
- AC single phase 220V/50HZ
product description
Use in fields requiring product protection such as biotechnology, pharmaceuticals, life sciences and precision electronics;
CLEANFLOW-JH series ultra-clean workbench combined with good airflow mechanics design creates a partially purified Operating Environment for operators, so that experiments can be carried out smoothly;
Conforms to the Australian AS1386.5 and European Union EN12469 standards, and the cleanliness level reaches the international ISO14644.1 standard CLASS 5 (US Federal 209E, 100 class);
Can provide Chinese/English IQ, OQ, PQ. And can provide a variety of verification services;
This series of products has passed the EU CE safety certification and enjoys a 2-year quality warranty period.
SANGMA microcomputer control technology:
Integrated LCD dot-matrix large-screen liquid crystal display, real-time display of lighting, sterility, air volume and other parameter status.
Humanized design, with sterilizing and lighting interlock functions, protecting operators from being burned by ultraviolet lamps and ensuring safe operation.
The wind speed is multi-level adjustable, and the appropriate air volume can be adjusted according to the user.
CLEANFLOW clean air flow technology:
Centrifugal wind wheel low energy consumption motor is adopted, based on the principle of airflow mechanics, the arc-shaped large-diameter air inlet is designed to reduce turbulent flow and ensure low-noise operation of the system.
Reasonable air duct design, optimized net pressure box, combined with micro-mesh designed laminar flow air plate, no convex surface, no dead angle, to ensure the uniformity and stability of air flow.
It is equipped with primary and effective double filter elements as standard. The primary filter can prevent the airflow and dust particles from entering and prolong the effective filter life. The effective filter uses HEPA without partitions, and the retention efficiency is 99.99%.
According to the customer's requirements, the CLEANFLOWTM series is equipped with two types of vertical airflow and horizontal airflow
Ergonomic structural design:
Modern laboratory classic product color matching, international popular design, arc-shaped design concept adds highlights to the laboratory and increases operating comfort;
The unique integrated design of the outer door and LCD control panel conforms to the ergonomic structure, comfortable Viewing Angle, and the opening of the outer door and the interface operation are convenient and simple;
Movable mesh partitions, the interval and quantity can be adjusted according to customer needs, and the maximum capacity can meet various experiments and culture items;
Humanized vertical classic structure design, maximizing the use of the working cavity;
The double door design (equipped in the Incubator series) allows real-time control of the sample status in the inner cavity, and at the same time makes the insulation performance better.
Easy to clean:
The concept of clean liner and easy cleaning is reflected, and the minimal splicing design is convenient for cleaning and maintenance;
The movable removable multi-layer shelf design, less metal parts in the cavity are easy to clean.
Easy maintenance:
The liquid crystal microelectronic controller has a diagnostic function, and actually displays various working states and stores historical operation and temperature data;
The main control of electrical control components is separated from the control panel, and they are all installed at the rear of the cabinet, which is convenient for equipment maintenance and maintenance.
Safe and effective protection concept:
Multiple over-temperature protection functions, sound and light alarm to remind customers;
Automatic double over-temperature safety protection function;
All electronic components are UL certified;
All over-temperature protection devices are designed to meet the German DIN 12880 Class 3.1 standard
Pro-Bright professional lighting system:
The inner cavity is equipped with a specially developed Pro-BrightTM lighting system, which can simulate natural lighting during the day and night to meet specific lighting conditions.
According to the heat generated by the light, the system makes effective compensation through a sophisticated control system to ensure a constant temperature.
The three-dimensional light source is adopted, and the illumination distribution is uniform. The mirror stainless steel in the cavity is used as the reflective material, so that the illumination effect is better, and the illuminance is adjustable in grades.
>Optimized lighting system, the lamp tube and the inner tank are effectively insulated by double-layer glass, and there are ventilation holes for heat dissipation.
With the ALLIGENTM humidification system (artificial climate chamber only), various climate simulations can be performed on the samples.
