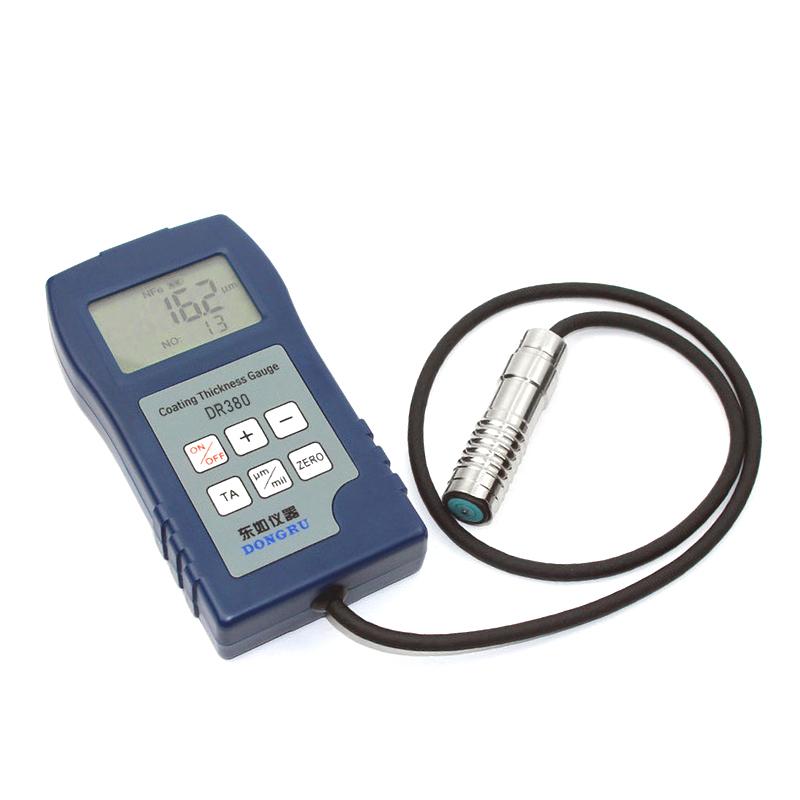

DONGRU DR380 portable Film Thickness Gauge magnetic and eddy current Thickness Gauge

DR380

Coating Thickness Gauge

Magnetic eddy current dual-use Film Thickness Gauge, thickness range 0~1250 microns, error accuracy +/- 1~ 3%, with zero, two, multi-point calibrated, can store 2000 data, using imported high-quality metal probe.

Introduction

Dongru DR380 Portable Paint Thickness Gauge is a magnetic eddy current dual-purpose coating Thickness Gauge. It has the characteristics of fast measurement, high-sensitivity probe, LCD display, and data storage function. ~1250 microns, the measurement accuracy is ±(1%-3%)H+1.5μm, using imported high-quality metal probes, high sensitivity, can quickly measure the coating thickness of the measured object, and has continuous measurement and single There are two measurement methods for each measurement.

Principle

DR380 is a dual-purpose portable paint Film Thickness Gauge, which can measure different metal substrates. The portable paint Film Thickness Gauge uses different measurement principles.

A. Magnetic thickness measurement method, which can non-destructively measure the thickness of non-magnetic coatings (such as: galvanized, chromium, indium, enamel, rubber, powder, paint, electrophoresis, enamel) on magnetic metal substrates (such as: steel, iron) , anti-corrosion layer, coating, etc.)

B. Eddy current thickness measurement method, which can non-destructively measure the thickness of non-conductive coatings (such as: paint, powder, plastic, rubber, enamel, enamel, electrophoresis, anti-corrosion layer) on non-magnetic metal substrates (such as: aluminum, copper, stainless steel) , spray layer, etc.)

Standards

DR380 Portable Paint Film Thickness Gauge is a dual-purpose Thickness Gauge. It is a professional non-destructive testing instrument for measuring the thickness of coated and coated objects on the surface of metal materials according to the national industry: GB/T 8393-1996 standard. It is easy to use and easy to carry. Super-large LCD, large font size, clearer backlight direct reading, imported high-quality metal probe, precise and firm structure, better repeatability, and excellent performance.

Features

• Simple operation, fast test speed, good sensitivity and high measurement accuracy

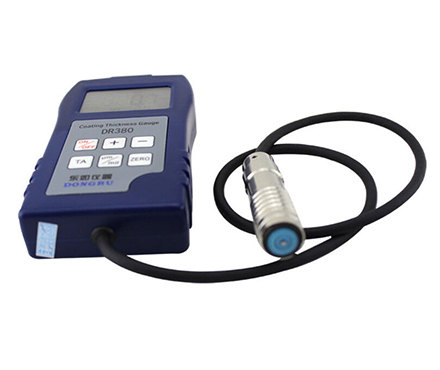

• Alloy probe, durable and precise

• Imported 32-bit high-precision processing chip and high-speed data processing technology, temperature compensation technology

• There are two measurement methods: continuous measurement and single measurement

• There are four statistical functions: maximum value (MAX), minimum value (MIN), average value (MEA), measurement times (No)

• Large-capacity storage, can be stored in 10 groups, 200 in each group, and can store 2000 data in total

• Stored data store view delete function

• Three calibration methods: zero point calibration, two-point calibration, multi-point calibration

• Upper and lower limit alarm function (can be set in single measurement mode)

• The operation process is marked by a beep (in single measurement mode)

• Automatic identification of ferrous and non-ferrous substrates

• Metric and imperial conversion μm/Mil

• Sunlight mode (used under strong light)

• Chinese and English bilingual version

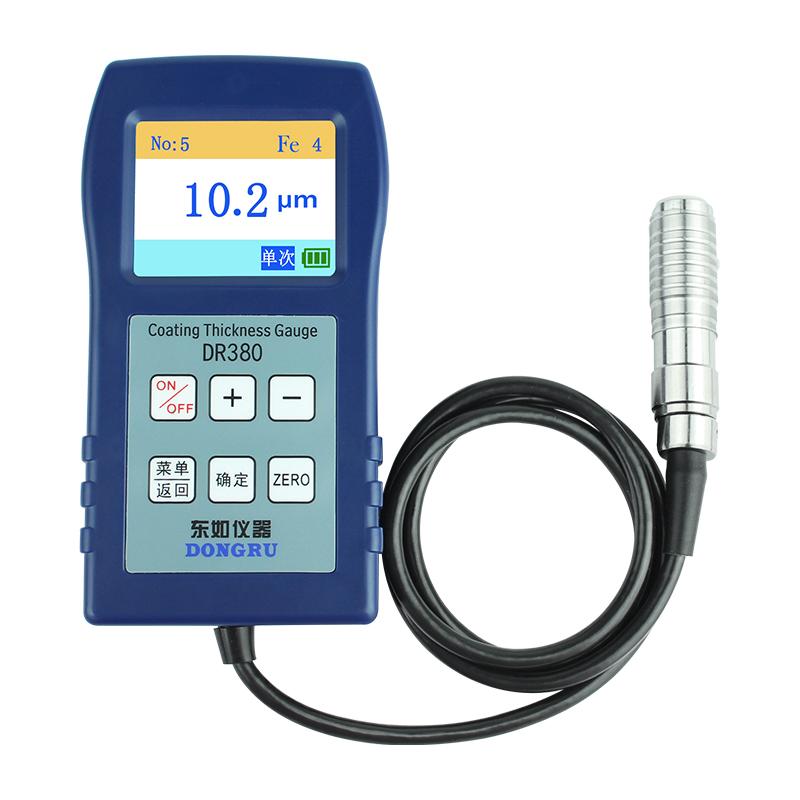

• 2.3-inch large color screen large font size display

• Manual/automatic shutdown function

• Bluetooth synchronous data transmission function (customized)

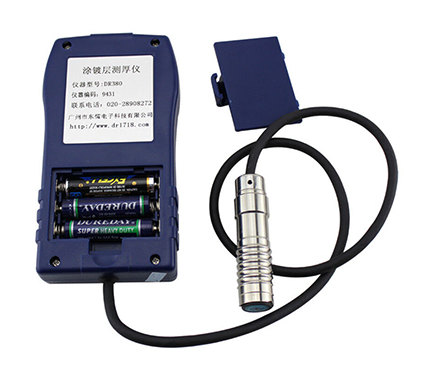

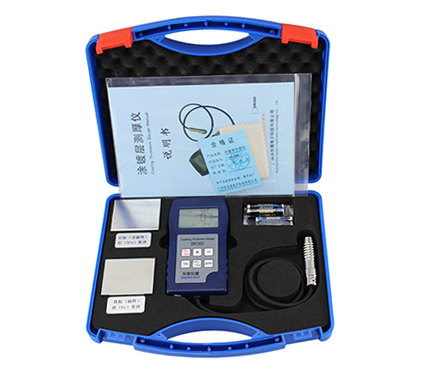

Packing list：Thickness gauge x1, calibrated diaphragm (50, 100, 250, 370 μm) x4, iron matrix x1, aluminum matrix x1, ABS instrument Encasement box x1, battery x1, manual x1, certificate x1, cleaning cloth x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
