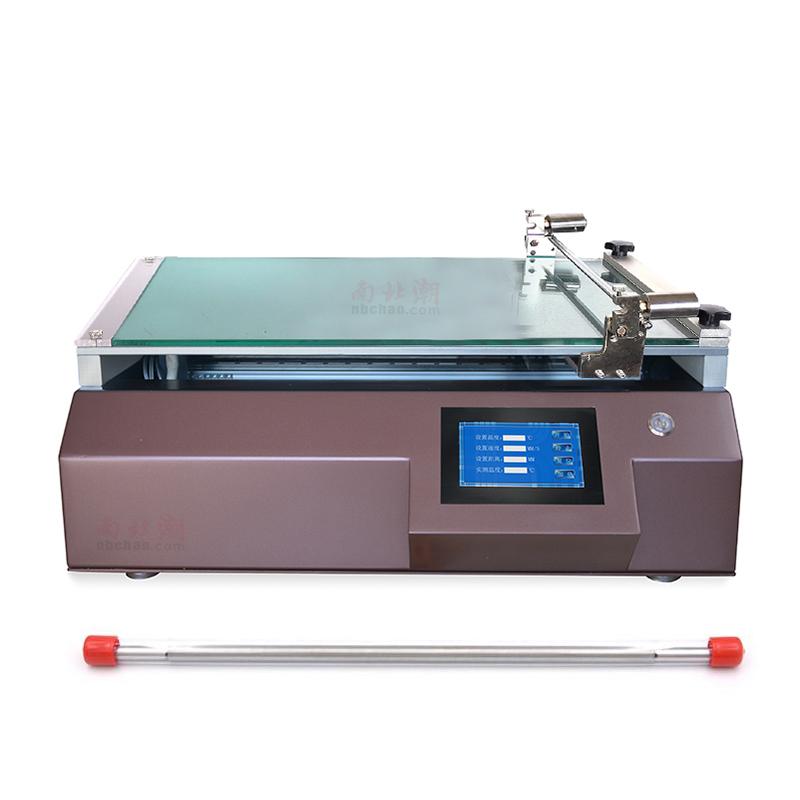

Liquid foundation Special Film Applicator Wire Bar Automatic Film Applicator TBJ-A1-XB + cardboard
Dedicated to liquid foundation film, testing hiding power and concealer, wire rod Spreader, Coating table size 300 * 400mm, standard high-precision wire rod and Paint Chart.
Model：
TBJ-A1-XB + cardboard
zy
Manufacturer authorization
Similar products
-
HuiNuo TM1000 Automatic Film Applicator Bar Coater effective coating area 40 * 30cm$ 1470.00SE -
HUINUO TM1000 High-precision Wire Bar Film Applicator with 3 imported wire rods$ 1625.00SE -
HUINUO TM1000pro High-accuracy Wire-rod Film Coating Apparatus$ 1936.00SE -
China bar type Automatic Film Applicator TBJ-A1-XB with imported bar$ 1283.00SE -
China TBJ-A1-DJ8 high-precision bar Lab Film Applicator Servo Motor Film Applicator$ 1936.00SE
zy TBJ-A1-XB + cardboard Automatic Film ApplicatorSPEC
zy TBJ-A1-XB + cardboard Automatic Film ApplicatorDetails
zy TBJ-A1-XB + cardboard Automatic Film ApplicatorPacking list
- SKU
- NB002134
- Coating method
- Wire rod
- Wire Rod Coating Thickness Range
- 1-571.5 μm (Spreader thickness determined according to rod model)
- Spreader Accuracy
- ±0.001mm
- Coating speed
- 5-200Mm/s (< 5mm/s can be customized)
- Coating size
- 300 * 400Mm (Miscellaneous size can be customized)
- Spreader distance control
- The number can be set arbitrarily within the range of 1-400mm
- Substrate clamping method
- Mechanical fixture
- Control mode
- Touch screen control
- Power supply Voltage
- 220V 50HZ
- Dimension
- 650 * 410 * 520Mm (length * width * height)
- Net Weight
- 45KG
- speed control
- Infinitely variable speed
- Bottom plate material
- Glass
- Optional Accessories
- Leakage tank, substrate fixture, trimming horizontal height support foot device, Glass plate, silicone pad and Weight (for applications with uneven thickness of Spreader substrate), application width control baffle
- customizable function

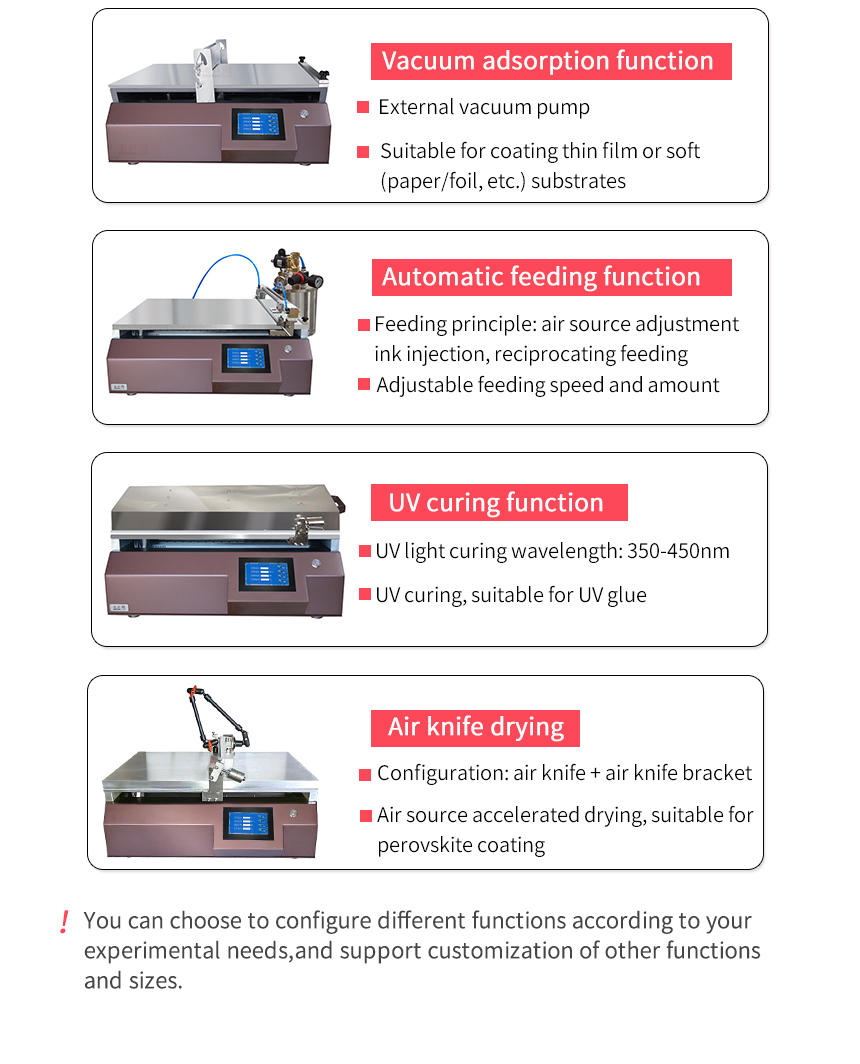

- Automatic lame plating device, UV curing device, automatic inking system, air knife drying, remote control, upper infrared heating, double extrusion Spreader
TBJ-A1-XB + cardboard
Automatic Film Applicator
Dedicated to liquid foundation film, testing hiding power and concealer, wire rod Spreader, Coating table size 300 * 400mm, standard high-precision wire rod and Paint Chart.

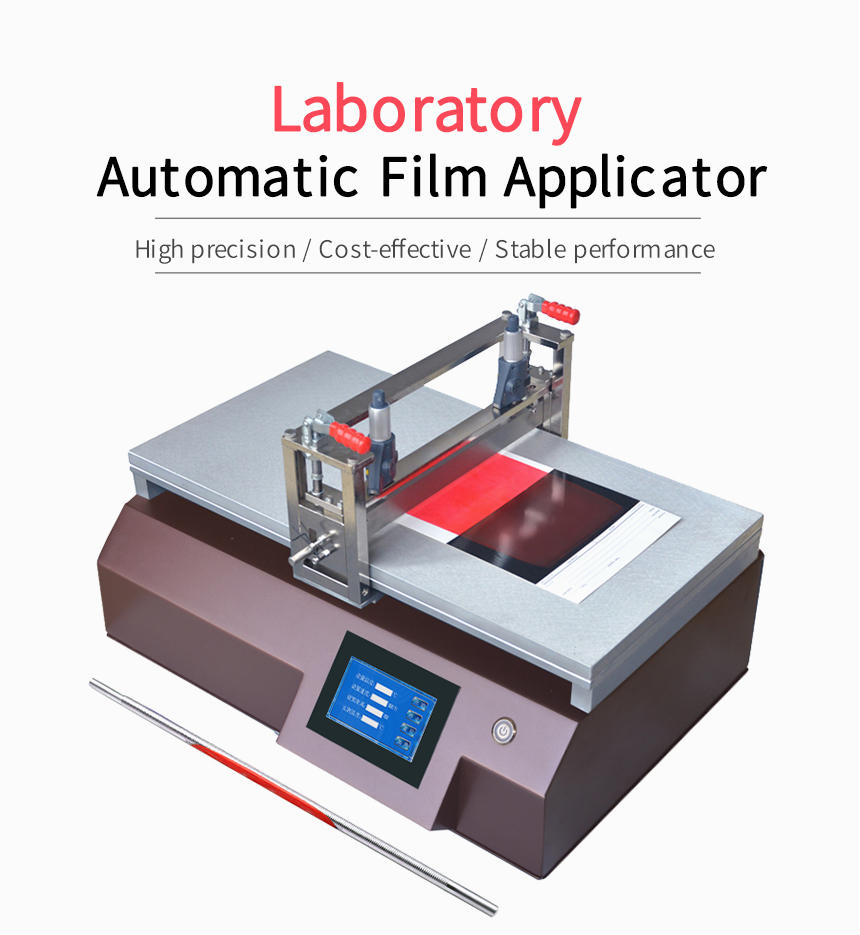

This wire rod automatic coating machine is a small laboratory coating machine dedicated to liquid foundation. It tests the hiding power and concealer of liquid foundation through experiments. It adopts wire rod coating method and comes standard with 1 high-precision wire rod and 1 box of hiding power test cardboard.

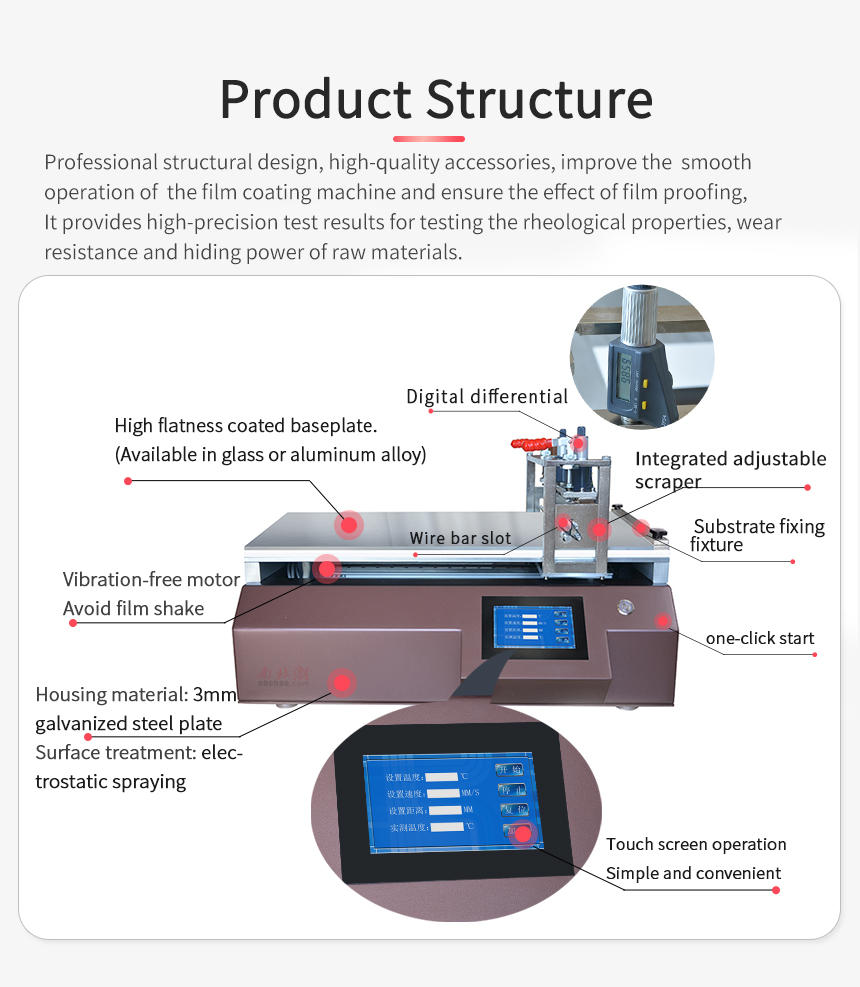

The experimental automatic coating machine adopts touch screen control, which can freely adjust the scraping speed and scraping length. The coating size is 300 * 400mm, the high flatness glass baseplate, and the standard mechanical fixture can quickly fix the coating cardboard.
This automatic coating machine comes standard with a box of coating test cardboard and an imported wire rod with a precision of up to 1μm.
Optional
|
|
|
FAQ
QIs the price listed on the website the final cost for overseas purchases?
ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
QWhat is the specific process for purchasing the product?
AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
QWhat should I do if the instrument I purchase needs repair?
AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
