LINSHANG LS121 UV energy meter

LINSHANG LS121 UV energy meter Light spectrum range 320nm-390 nm λ p = 365nm, Power measurement range 0-2000 mW/cm2, Power resolution 0.1 mW/cm2, Energy measurement range 0 --- 999999mJ/cm2, Energy measurement accuracy +/- 10 % , +/- 5% Typical, sampling speed 2048 times/second.
Model：
Certificate
Contact
Details SPEC
Similar products

LinShang LS121 UV energy meterSPEC

LinShang LS121 UV energy meterDetails

LinShang LS121 UV energy meterPacking list

SKU
NB002140
Light spectrum range
320nm~390nm，λp = 365nm
Power Measurement Range
0~2000mW/cm²
Power resolution
0.1mW/cm²
Energy Measurement Range
0~999999mJ/cm²
Energy measurement Accuracy
+/- 10 % , +/- 5% Typical
Sampling speed
2048 times/second
Instrument Power
2 AAA alkaline dry batteries
show
240 * 160 dot matrix LCD
Instrument size
Diameter 120mm * Thickness 13mm
Instrument Weight
327 g
LS121
UV energy meter

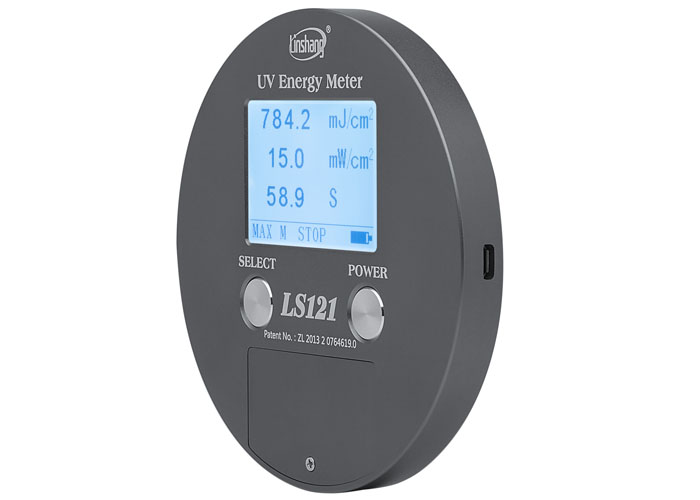

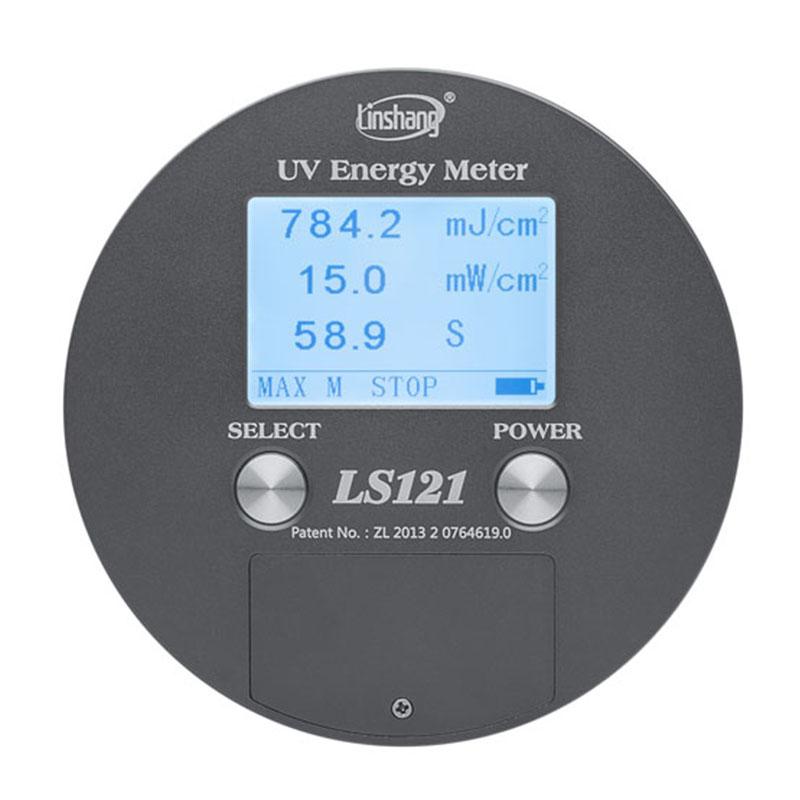

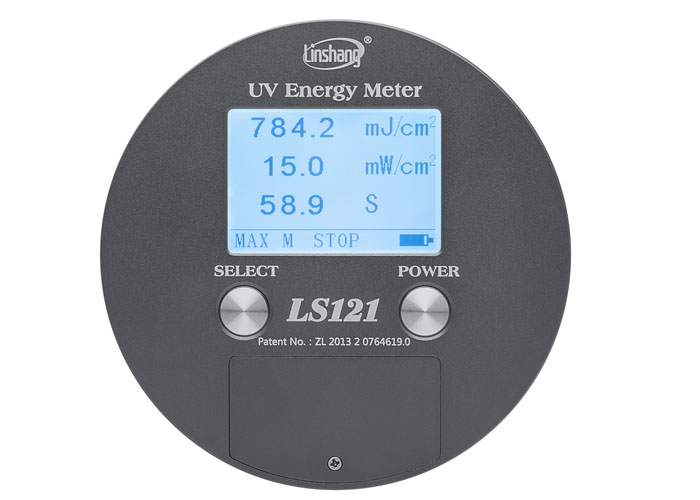

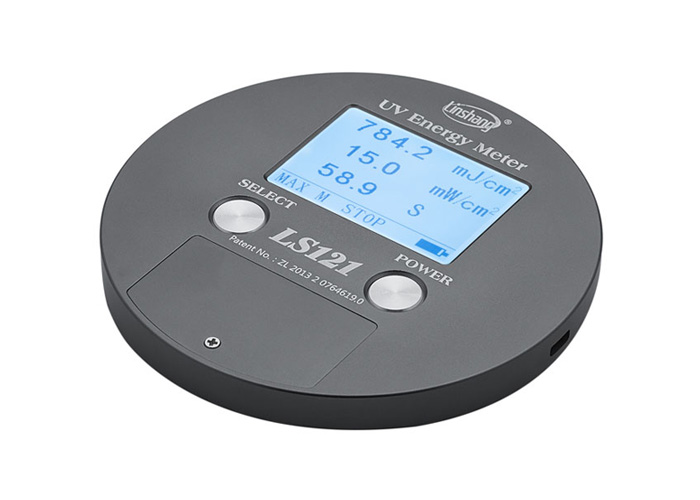

LINSHANG LS121 UV energy meter Picture

LS121UV energy meter parameters


    1. Applicable instrument: used to measure light intensity and energy measurement during ultraviolet curing process

    2. Spectral range: 320nm --- 390 nm λp = 365nm

    3. Power measurement range: 0 ---2000 mW/cm2

    4. Power resolution: 0.1 mW/cm2

    5. Energy measurement range: 0 --- 999999mJ/cm2

    6. Energy measurement accuracy: ± 10%, ± 5% typical

    7. Sampling speed: 2048 times/second

    8. Instrument power supply: 2 AAA alkaline dry batteries

    9. Display: 240*160 dot matrix LCD

    10. Instrument size: diameter 120mm * thickness 13 mm

    11. Instrument weight: 327 g

Features of LS121 UV energy meter

    1. UV energy meter, simultaneously measures UV intensity and UV energy value, large LCD display

    2. Built-in heat insulation sheet, high temperature resistant design, can operate in an environment of 100 degrees Celsius for a long time

    3. The stored data will not be lost when the power is turned off. The last test data will be automatically displayed when the computer is turned on. The test data needs to be deleted manually.

    4. High accuracy, passed and obtained testing certificates from multiple trusted testing agencies

    5. Built-in timer can accurately record the length of UV curing time

    6. USB interface, computer software can read test data and print out test reports
