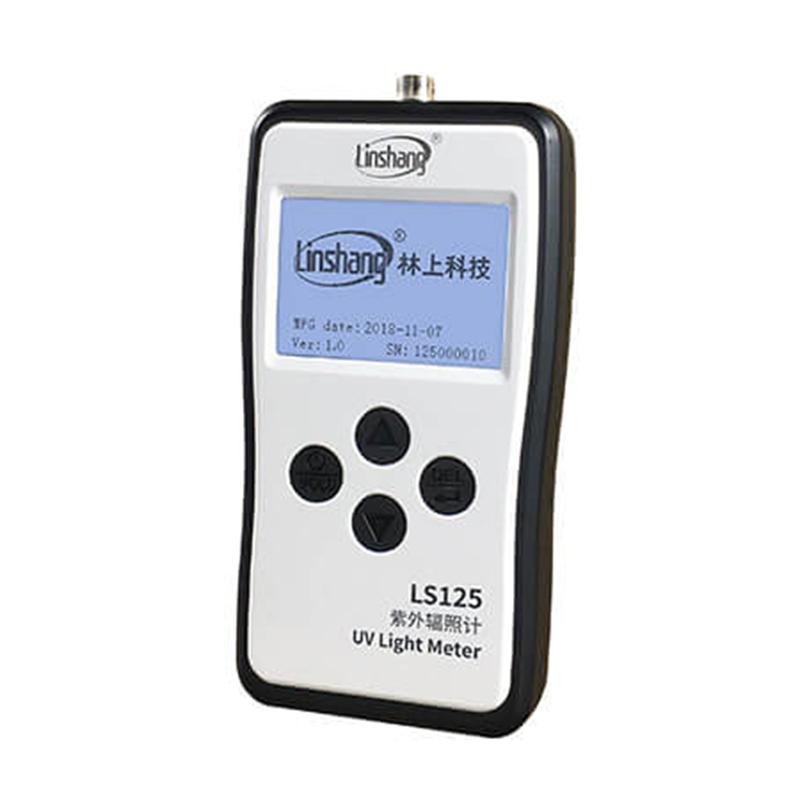

LINSHANG LS125 Multi-probe UV Irradiometer

LS125

Multi-probe UV irradiometer

 LS125 multi-probe UV irradiatIon Meter adopts digital probes and plug-in design, and the instrument intelligently determines the probe model. It can support 6 different UV probes at the same time.

LS125 UV irradiatIon Meter host parameters

    1. Instrument weight: about 320 grams

    2. Host size: length 125mm × width 72mm × height 14.5mm

    3. Battery: 2 AAA alkaline dry batteries.

    4. Probe connection method: push-pull self-locking (buckle type)

Parameters of probes supported by LS125 UV light meter

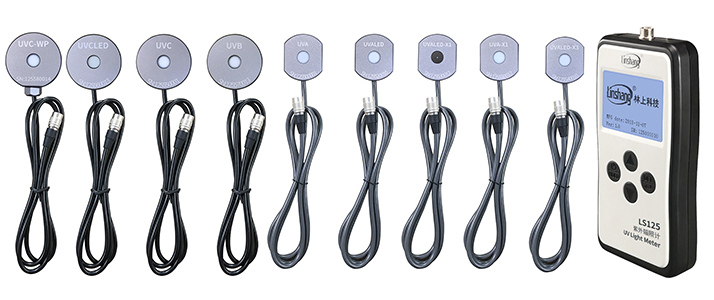

   Currently, LS125 provides six types of probes to choose from according to the measurement needs of different industries:

    1.P254 probe

 1) Spectral response: 230nm-280nm; λp = 254nm

 2) Measuring range: 0 -200000 uW/cm2

 3) Resolution: 0.1μW/cm2

 4) Measurement accuracy: ±10%

 5) Test aperture diameter: ï¿ 10

 6) Probe size: diameter 46mm × thickness 16.1mm

    2.P297 probe

 1) Spectral response: 280nm-320nm; suitable for UVB light source measurement of 297nm, 308nm, 313nm and other wavelengths.

 2) Measuring range: 0-200000uW/cm2

 3) Measurement accuracy: ±10%

 4) Resolution: 0.1 uW/cm2

 5) Test aperture diameter: ï¿ 10

 6) Probe size: diameter 46mm × thickness 16.1mm

    3.P365L probe

 1) Spectral response: 260nm-400nm; λp =365nm

 2) Measuring range: 0-200000uW/cm2

 3) Measurement accuracy: ±10%

 4) Resolution: 0.1 uW/cm2

 5) Test aperture diameter: ï¿ 10

 6) Probe size: diameter 46mm × thickness 12.2mm

    4.P420L probe

 1) Spectral response: 340nm-420nm; λp= 395nm

 2) Measuring range: 0-200000uW/cm2

 3) Measurement accuracy: ±10%

 4) Resolution: 0.1 uW/cm2

 5) Test aperture diameter: ï¿ 9.2

 6) Probe size: diameter 46mm × thickness 14.6mm

    5.E365 probe

 1) Spectral response: 320nm-400nm; λp =365nm

 2) Power range: 0 - 10000mW/cm2

 3) Energy measurement range: 0--- 999999mJ/cm2

 4) Measurement accuracy: ±10%

 5) Resolution: 0.1 mW/cm2

 6) Test aperture diameter: ï¿ 9.2

 7) Probe size: diameter 46mm × thickness 14.6mm

    6.E395 probe

 1) Spectral response: 340nm-420nm; λp= 395nm

 2) Measuring range: 0-20000mW/cm2

 3) Energy measurement range: 0--- 999999mJ/cm2

 4) Measurement accuracy: ±10%

 5) Resolution: 0.1 mW/cm2

 6) Test aperture diameter: ï¿ 9.2

 7) Probe size: diameter 46mm × thickness 14.6mm

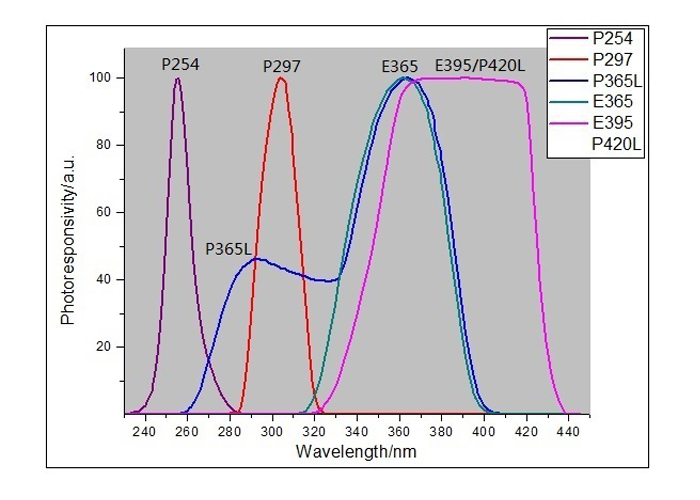

LS125 multi-probe UV radiometer spectral response curve

Packing list：machine x1, certificate of conformity x1, manual x1, warranty x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
