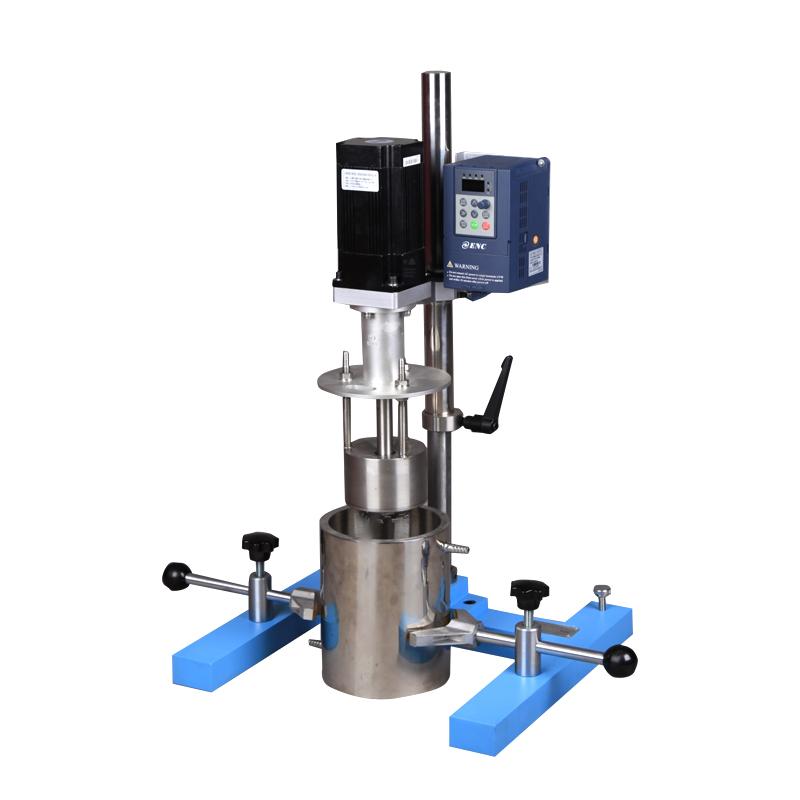

MODERNER LSM-550 Laboratory Basket Sand Mill, Brushless DC/2.9L
MODERNER LSM-550 basket sand mill is a 2.9L brushless DC basket sand mill specially designed for laboratories, with a manual 230mm lift stroke and a maximum Rotation speed of 4000rpm.
Model：
LSM-550
Moderner LSM-550 Basket sand millSPEC
Moderner LSM-550 Basket sand millDetails
Moderner LSM-550 Basket sand millPacking list
- SKU
- NB021413
- Motor Power
- 550w
- Speed regulation range
- 50~4000rpm
- Lifting stroke
- 230mm
- Lifting method
- manual
- Dimensions
- 450*420*550mm
- Weight
- 32kg
- Ground medium particle size
- Φ1.4~1.6mm
- Sand disc diameter
- Φ68mm
- Dispersing disc diameter
- Φ60mm
- Barrel Volume
- 2.9L
- Power
- 220V 50Hz/60Hz
LSM-550
Basket sand mill
Basket sand mill is used for rapid dispersion of coatings, paints, inks and other chemical laboratories. Both the sanding basket and barrel are equipped with cooling interlayers, which help control the grinding temperature and prevent overheating.
Series model
| model | LSM-2.2D | LSM-2.2B | LSM-370 | LSM-550 | LSM-750 |
| motor | Brushless DC | AC explosion-proof | Brushless DC | Brushless DC | AC frequency conversion |
| power | 2.2Kw | 2.2Kw | 550W | 550W | 750W |
| Spindle speed | 50~4000rpm | 0~4000rpm | 50~4000rpm | 50~4000rpm | 0~4000rpm |
| Lifting method | electric | Manual | Manual | Manual | Manual |
| Lifting stroke | 400mm | 420mm | 230mm | 230mm | 200mm |
| sanding disc | Φ95mm | Φ90mm | Φ44mm | Φ68mm | Φ68mm |
| Dispersion disk | Φ120mm | Φ120mm | Φ60mm | Φ60mm | Φ80mm |
| Zirconium beads | Φ1.8~2mm | Φ1.8~2mm | Φ1.4~1.6mm | Φ1.4~1.6mm | Φ1.8~2.0mm |
| bucket | 20L | 20L | 1.25L | 2.9L | 2.9L |
| power supply | 220V 50Hz/60Hz | ||||
FAQ
QIs the price listed on the website the final cost for overseas purchases?
ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
QWhat is the specific process for purchasing the product?
AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
QWhat should I do if the instrument I purchase needs repair?
AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
