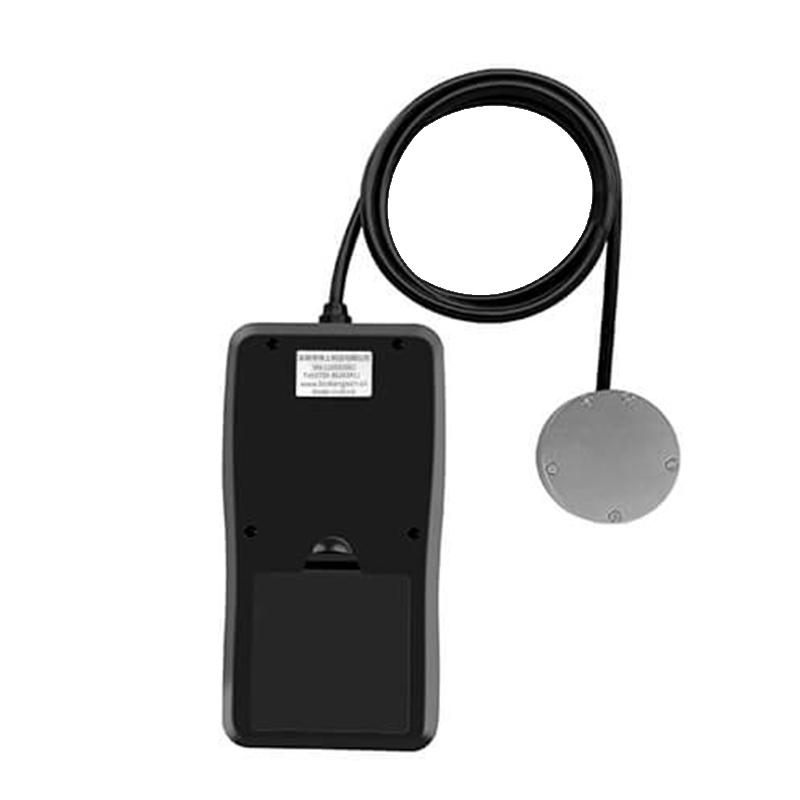

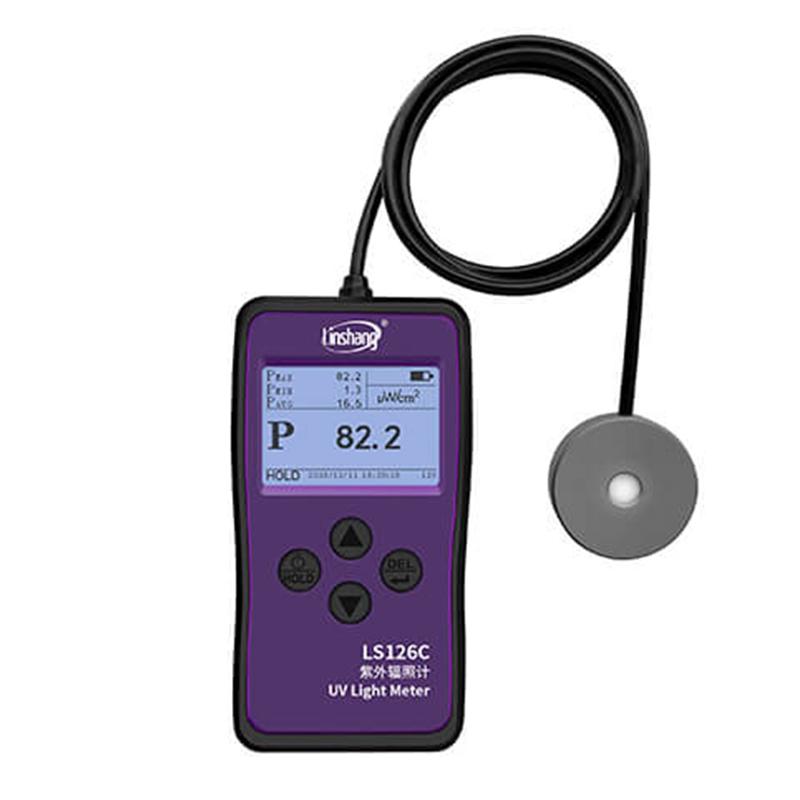

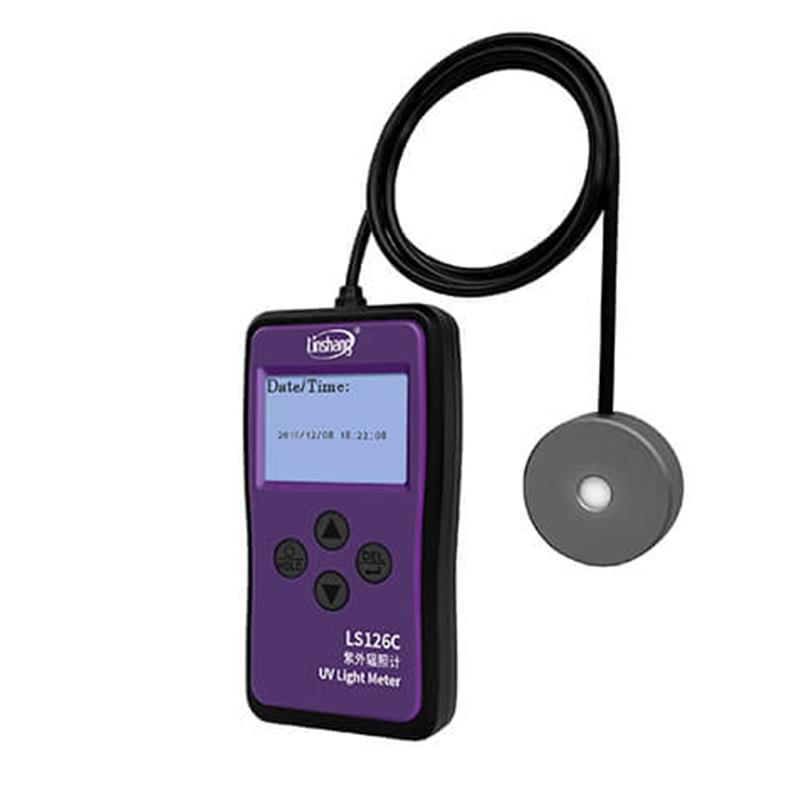

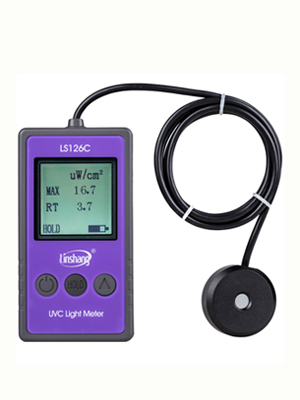

Linshang LS126C UV Irradiometer

LS126C

UV Irradiometer

LS126C UV irradiometer, specializing in UVC ultraviolet germicidal lamp intensity detection, dedicated to 254nm germicidal lamp detection, mobile APP can realize unattended monitoring

LS126C UV light meter parameters

    1. Measurement accuracy: ± 10%

    2. Resolution: 0.1 uW/cm2

    3. Spectral response: center point 254nm, bandwidth 230nm - 280nm

    4. Measuring range: 0-8000 uW/cm2

    5. Host size: length 130mm * width 70mm * height 28mm

    6. Probe size: diameter 45mm * height 16mm

    7. Probe cable length: 1 meter

    8. Instrument weight: about 250 grams

    9. Batteries, 4 AAA alkaline dry batteries

Features of LS126C UV Light Meter

    1. Suitable for short-wave sterilization ultraviolet intensity measurement

    2. 254nm wavelength ultraviolet measurement

    3. Dedicated UVC probe with correction filter to eliminate the influence of UVA and UVB

    4. Data memory and viewing of maximum value and real-time value

,

LS126C UV Tester measures optional accessories

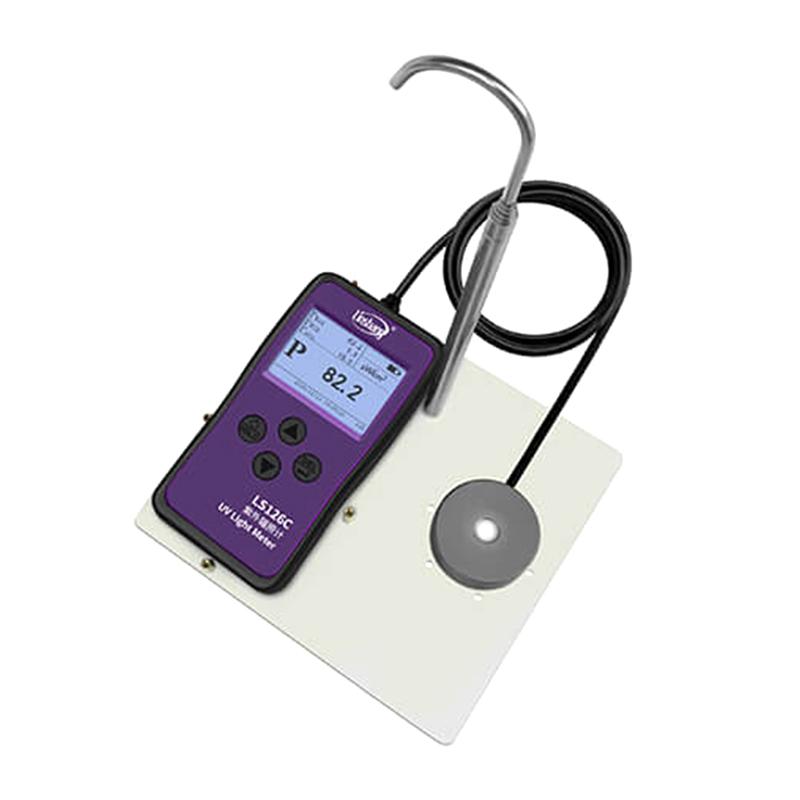

    According to WS/T 367-2012 "Technical Specifications for Disinfection of Medical Institutions", the measurement is to ensure that the UVC ultraviolet radiatIon Meter is located at the center of 1 meter below the lamp tube, and the new lamp tube is qualified if it is greater than 90uw/cm2, and the old lamp tube in use is lower than 70uw/cm2 is unqualified. Our company also produces a UV ruler hook for purchase to facilitate on-site UV intensity measurement.

LS126C ultraviolet radiatIon Meter spectral response graph

Packing list：completeness-built unit x1, certificate of conformity x1, manual x1, warranty x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
