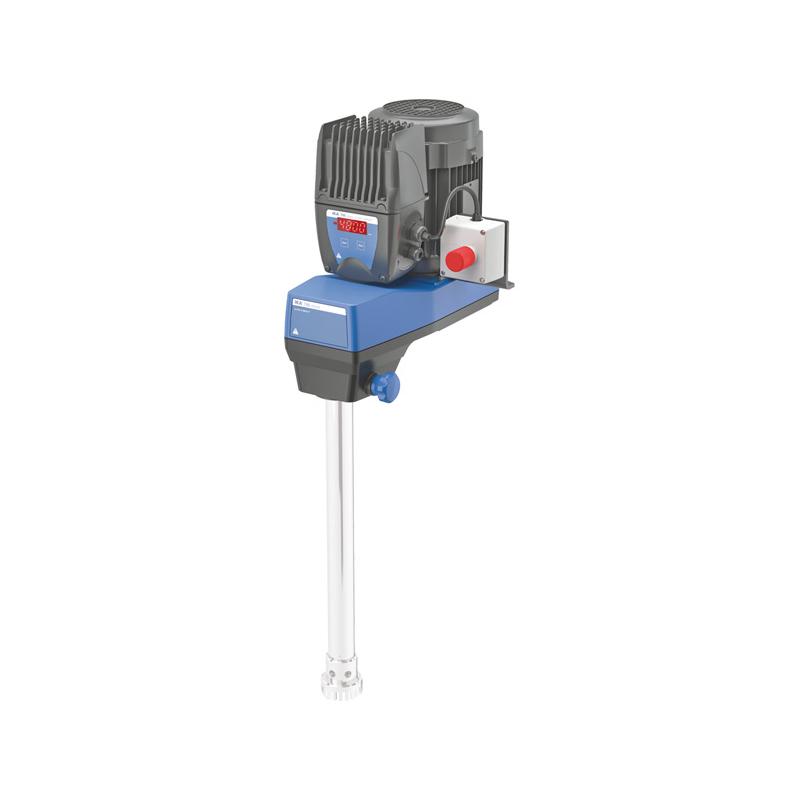

Germany IKA T65 Disperser Digital Display Kit 50L/9500rpm
T65 digital set
IKA T65 digital set DisperserSPEC
IKA T65 digital set DisperserDetails
IKA T65 digital set DisperserPacking list
- SKU
- NB021433
- Motor Input Power
- 2600W
- Motor output power
- 2200W
- Processing Capacity
- 2~50L
- Max. Processing Viscosity
- 5000mPa.s
- Speed regulation range
- 1000~9500rpm
- Display mode
- LED
- Speed regulation mode
- stepless speed regulation
- Noise level
- 75dB (A) when no-load
- Extension arm diameter
- flange
- Extend arm length
- flange
- Process type
- batch processing
- Dimension
- 300*400*390mm
- Weight
- 29kg
- Environmental temperature
- 5~40℃
- Allowable Relative Humidity
- 80%
- Protection level
- IP54 DIN EN 60529
- Power supply Voltage
- 3×400V 50/60Hz
The T series dispersers are used to mix and disperse a variety of samples of different viscositiesProduct. This range of dispersers makes any application possibleVery good effect, and improve product quality and stability.
T65 digital ULTRA-TURRAX disperser
High-power disperser with a capacity of 2 - 50 l (H2O) for pilot plants with a digital display of speed. The wide speed range (1000 – 9,500 rpm) ensures that users can work at high linear speeds, even with small diameter rotors. Three stator-rotor combinations to suit different applications. The rotational speed is constant even when the viscosity changes, which effectively guarantees the repeatability of the operation.
Features
Digital display of rotational speed
Electronically controlled speed
Electronic overload protection
The cord and plug are not included in the accessories and should be ordered separately if needed
The dispersion tool adopts the plug-in connection method, which is easy to disassemble
Stainless steel dispersing knives can be used in vacuum or pressure environments
Error code display function
