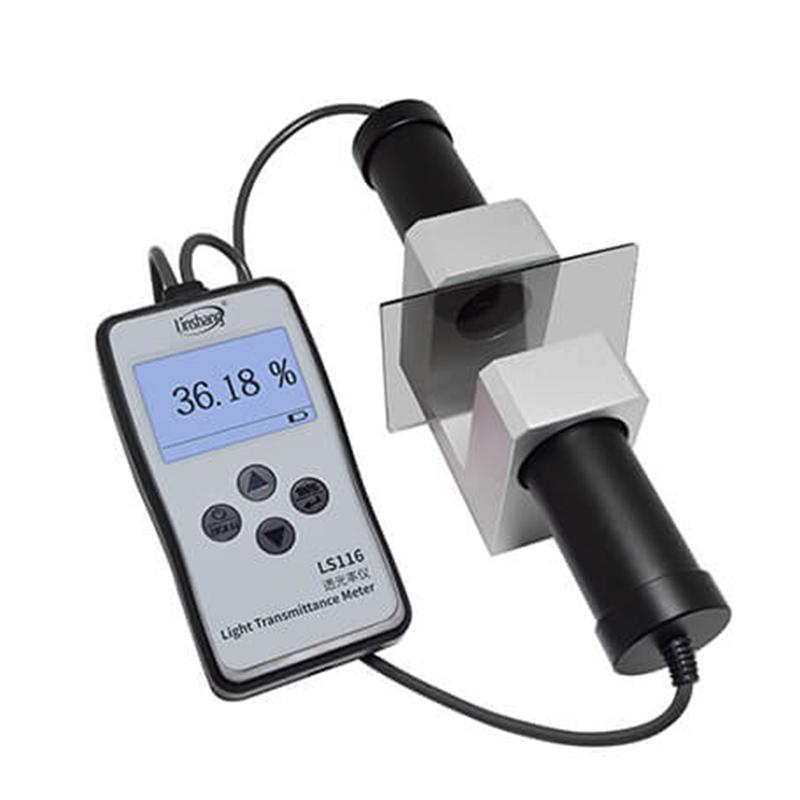

Linshang LS116 Transmittance meter upgraded version

LS116

Transmittance meter

Introduction

Light transmittance is an important technical index of many optical products, such as glass, solar film, film glass and so on. The test principle of the light transmittance Tester is to use a visible light source to irradiate the measured substance, and the sensor detects the incident light intensity of the light source and the light intensity after passing through the measured substance, and the ratio of the transmitted light intensity to the incident light intensity is the transmittance. Overrate, expressed as a percentage. The LS116 light transmittance Tester adopts parallel optical path design, which is suitable for detecting large-thickness materials, and the accuracy can reach within ±1%.

Features

1. The light transmittance Tester adopts the parallel optical path of the light source and the light-condensing design of the receiver, so that it can measure materials with large thickness.

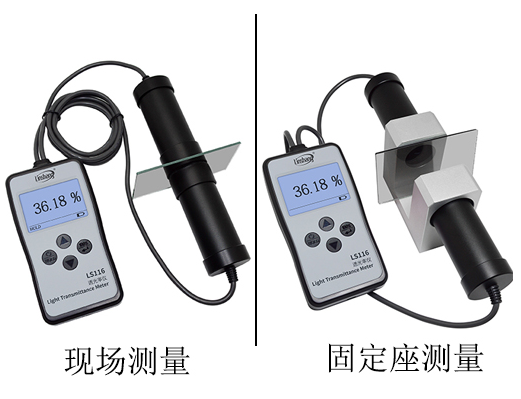

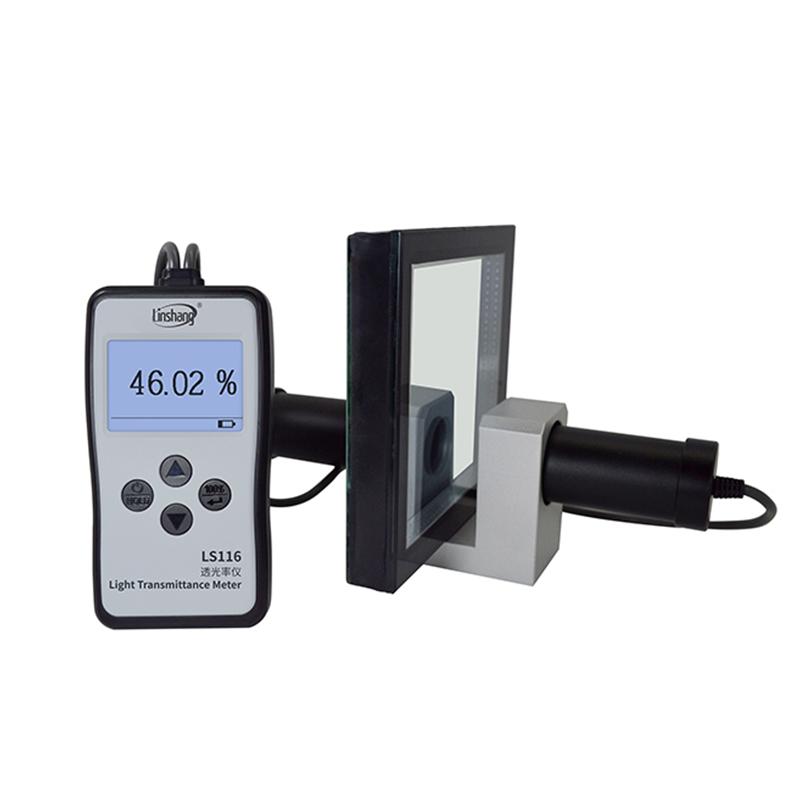

2. Equipped with a fixed seat, it has two measurement methods; it is suitable for testing such as the on-site measurement of the front Wind Shield of the car, and it is also suitable for the fixed-point light transmittance measurement of the fixed station in the factory.

3. Adopt high-precision data acquisition, high measurement accuracy; fast speed, simple operation.

4. The transmittance measurement range of the instrument is 0.001%-99.8%, which can test the transmittance of high transmittance materials.

5. It is suitable for the light transmittance test of glass products, solar film, film glass, coating materials, organic material panels and other materials. The highest resolution can reach 0.001%.

6. Linshang LS116 light transmittance Tester is suitable for various occasions such as exhibitions, production, quality inspection, and inspection.

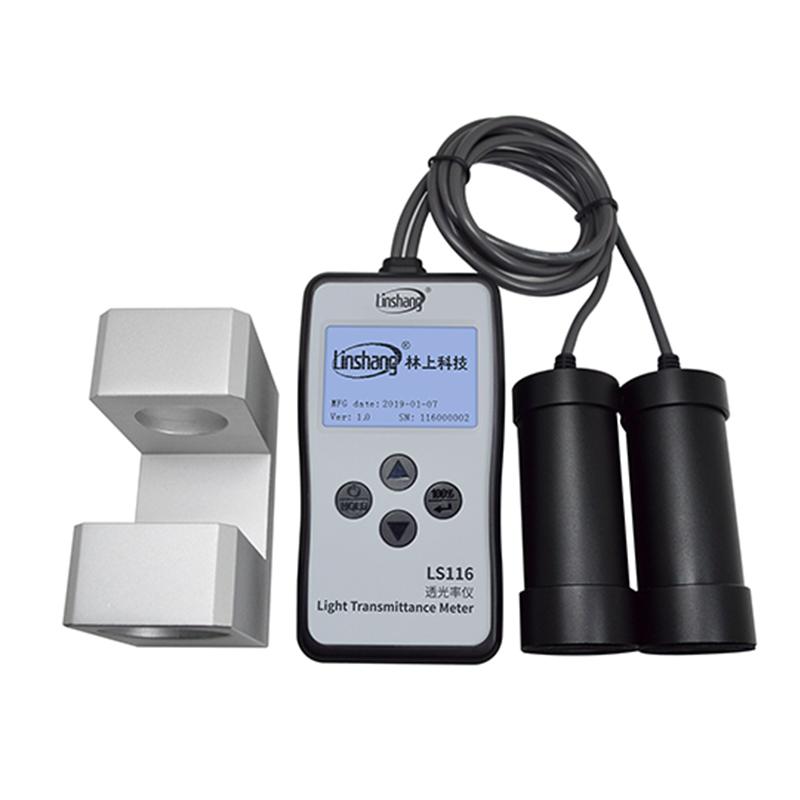

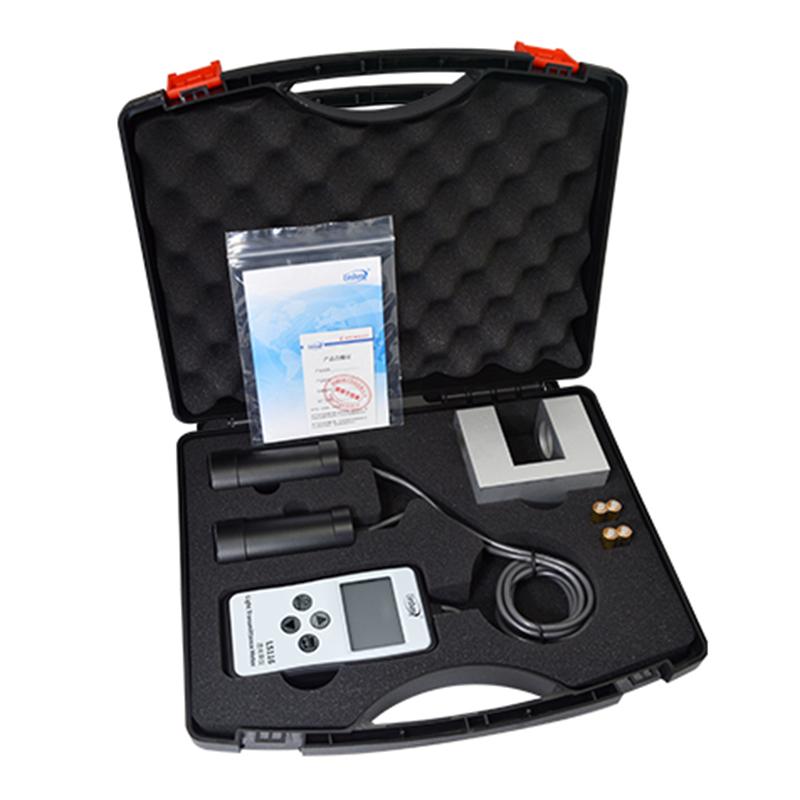

Packing list：Transmittance meter x1, certificate of conformity x1, manual x1, warranty card x1, AAA battery x1, fixed measurement seat x1, plastic engineering box x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
