IKA RH digital white heating Magnetic Stirrer white enamel plate 15L

IKA heating Magnetic Stirrer RH digital white is a digital display magnetic heating Stirrer with white enamel work plate, RH digital white conforms to DIN12878 standard and can be connected to a contact Digital Thermometer.
Contact
Details SPEC CAT

IKA RH digital white Magnetic StirrerSPEC

IKA RH digital white Magnetic StirrerDetails

IKA RH digital white Magnetic StirrerPacking list

SKU
NB021463
station number
1 station
Max. Capacity of stirring
15L
Stirring speed
100~2000rpm
Speed regulation mode
button
Temperature range
50~320℃
Input Power
620W
Mixer size
20~80mm
Pan size
Φ135mm
Panel Material
Technical enamel
Dimensions
160*100*250mm
Power
230/115/100V 50/60 Hz
Machine Weight
3.845kg
Protection level
IP21
Ambient Temperature
5~40℃
Allowable Relative Humidity
80%
External temperature transducer interface
ETS-D5
RH digital white
Magnetic Stirrer

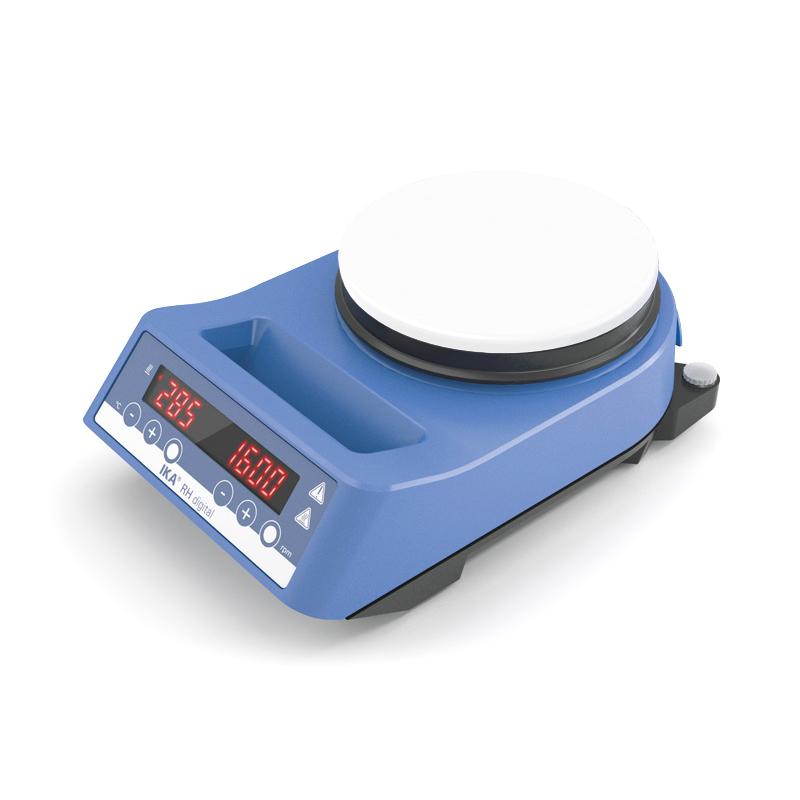

IKA RH digital white heating Magnetic Stirrer white enamel plate 15L Picture

Introduction

Innovatively designed digital display type magnetic stirrer with heating. Heating bushings in accordance with DIN 12878 can be connected to electronic contact thermometers such as ETS-D5. A temperature sensor placed in the sample can be connected for high-precision temperature control. The heating output power is up to 600W, and the stainless steel-copper composite Heating Plate is an effective guarantee for rapid heating. Adjustable Heating Plate safety temperature (100 – 360 ℃)

  • Digital display of temperature and speed

  • Motor starts softly

  • The strong magnetic field and wide speed range can achieve a mixing volume of up to 15 liters!

  • Error code display function

  • Touch keys for easy operation

Product Structure

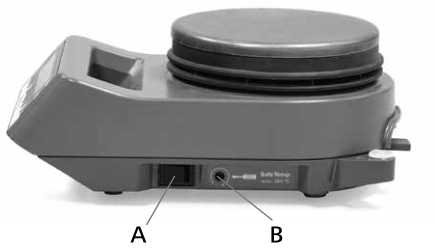

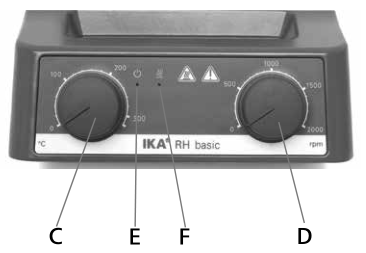

IKA RH digital white digital heating magnetic stirrer side viewIKA RH digital white digital heating magnetic stirrer front structure diagram

A Power switch; B Safety temperature setting screw; C Temperature adjustment knob; D Speed ​​adjustment knob; E Power display

F Heating display; M Thermometer socket; N Thermometer short-circuit connector; O Power socket; P Rod screw hole; R Threaded socket protective cover

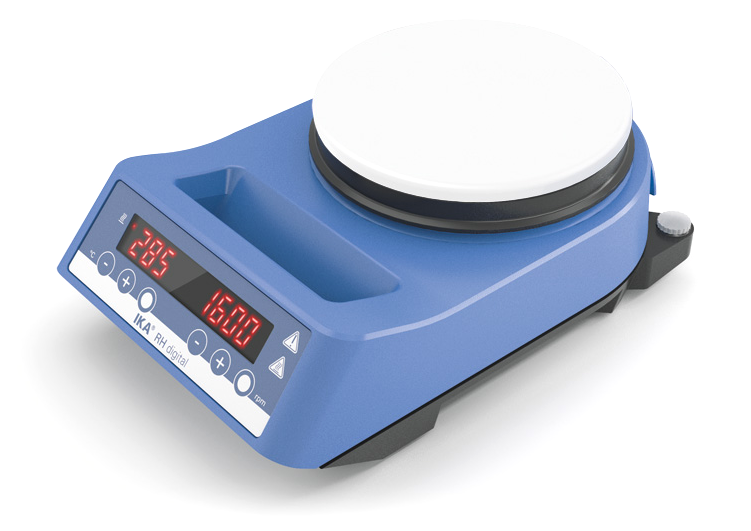

IKA heating magnetic stirrer RH digital white display diagram
