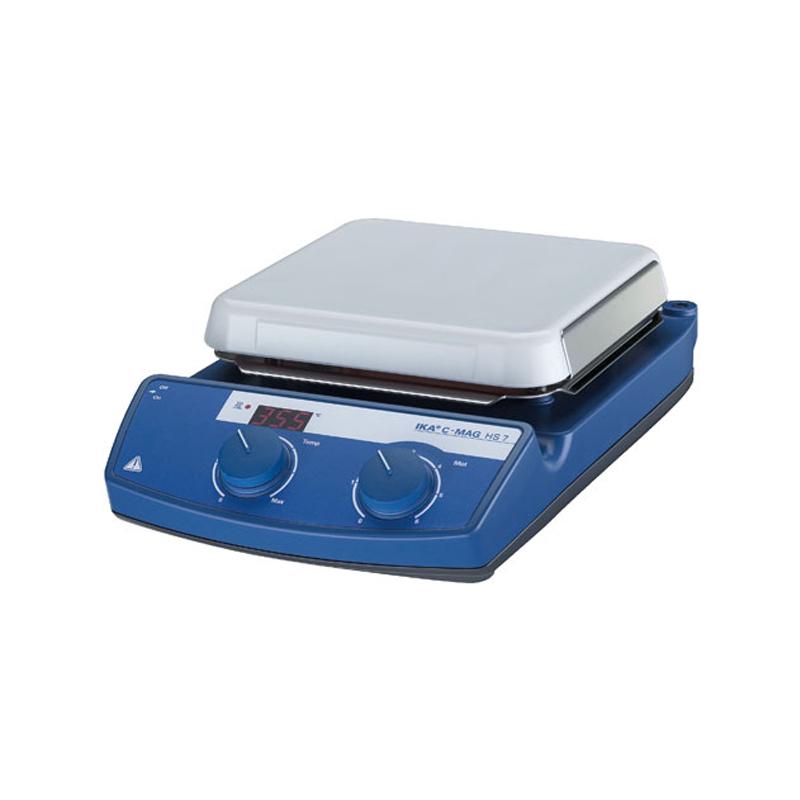

IKA C-MAG HS 7 heating Magnetic Stirrer 10L

IKA heating Magnetic Stirrer C-MAG HS 7 is a laboratory Magnetic Stirrer with a stirring capacity of 10L. The C-MAG HS 7 Magnetic Stirrer uses a uniformly formed ceramic plate with a Temperature range of 50~500 ℃.
Model：
Contact
Details SPEC CAT

IKA C-MAG HS 7 Magnetic StirrerSPEC

IKA C-MAG HS 7 Magnetic StirrerDetails

IKA C-MAG HS 7 Magnetic StirrerPacking list

SKU
NB021465
station number
1 station
Max. Capacity of stirring
10L
Stirring speed
100~1500rpm
Speed regulation mode
Scale 0 - 6
Temperature range
50~500℃
Safety protection temperature
550℃
Heating power
1000W
Input Power
1020W
Pan size
180*180mm
Panel Material
ceramics
Dimensions
220*105*330mm
Power
230/120/100V 50/60 Hz
Machine Weight
5kg
Protection level
IP21
Ambient Temperature
5~40℃
Allowable Relative Humidity
80%
Heating speed
5 K/min
C-MAG HS 7
Magnetic Stirrer
IKA C-MAG HS 7 heating Magnetic Stirrer 10L Picture

Introduction

Fixed safety temperature: heating will stop when the temperature exceeds 550℃

Thermal warning display: The indicator light flashes during heating, warning the user that the Heating Plate is too high and cannot be touched.

Digital display: for precise control or repeated temperature setting

Powerful motor: stirs viscous materials, the maximum stirring volume is 10L (water)

Strong magnetism: effectively prevent jumps

Microprocessor control: motor speed and Heating Plate signal feedback to ensure constant speed operation and maintain the set temperature

Ceramic disk: one-piece seamless disk with excellent chemical corrosion resistance

Temperature controller: Connect the contact electronic thermometer ETS-D5 to accurately control the solution temperature (applicable to HS 7 and HS 10)

Elevated control panel: Minimizes the chance of solution splashing onto the panel, making it easier to read numbers and control the speed

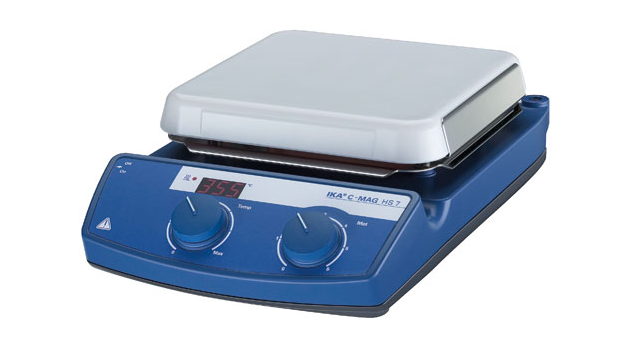

IKA heating magnetic stirrer C-MAG HS 7 display diagram

FAQ
QExcuse me, does the IKA C-MAG HS 7 digital have the bracket with the temperature probe?
A The host does not include it, it needs to be equipped separately.
