Germany

German IKA Tube Mill control Grinder

The German IKA Tube Mill controlled testtube Grinder is a batch processing Grinder that uses disposable grinding cups, and the Tube Mill can be used to grind hard (maximum processing Hardness of 5Mohs), dry and brittle samples.
Contact
Details SPEC CAT

IKA Tube Mill control GrinderSPEC

IKA Tube Mill control GrinderDetails

IKA Tube Mill control GrinderPacking list

SKU
NB021470
Motor Power
80W
Speed regulation range
5000 ~ 25000 rpm
Effective Volume of sand grinding basket
40 ml
Dimension
180*170*300 mm
Power supply Voltage
220 - 240 / 100 - 120
Weight
2.7 kg
Process type
batch processing
Working principle
Shear/Impact
Motor Input Power
100W
Velocity deviation
2 ±%
Maximum Feed Hardness
5Mohs
Maximum feed particle
10mm
Impact/shear cutter head material
Stainless steel 1.4034
Grinding chamber material
Stainless steel 1.4301
material
PTFE
Working time
3min
Grinding materials can be chilled down with dry ice in the grinding chamber
Yes
Environmental temperature
5 - 40 ℃
Allowable Relative Humidity
80 %
Type of protection
IP 30
USB port
Yes
Frequency
50/60 Hz
Input Power
100 W
Maximum circumferential velocity
65 m/s
Tube Mill control
Grinder

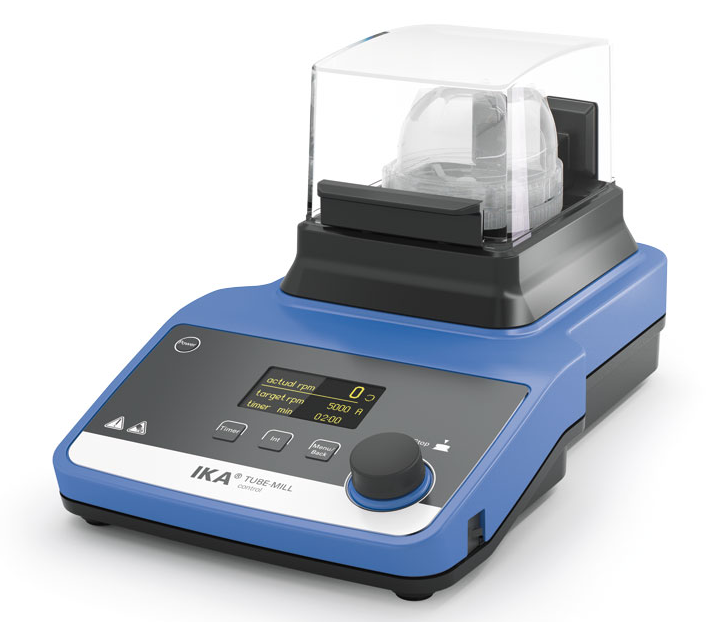

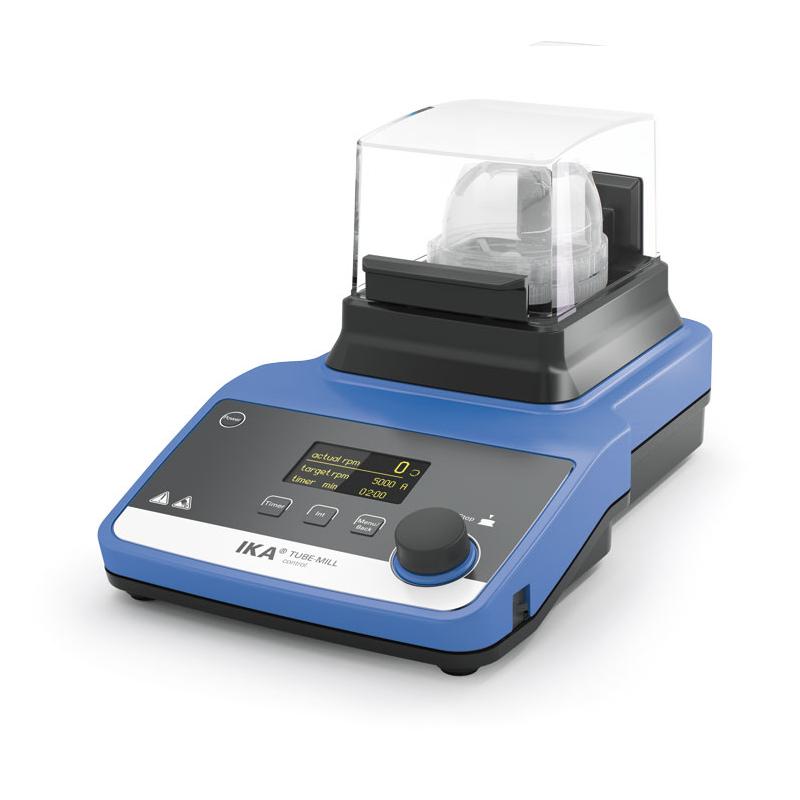

German IKA Tube Mill control Grinder Picture

Introduction

The IKA® Tube Mill is a batch Grinder that uses disposable grinding cups. Single-use grinding cups eliminate the possibility of cross-contamination and save cleaning costs and time. The grinding cup and top lid are made of transparent material, so the user can see the grinding process at any time. It can be used to grind hard (maximum processing hardness of 5Mohs), dry and brittle samples. Ideal for grinding seed samples such as corn and wheat. During the development process, the developers paid special attention to the user safety of this test tube Grinder! The Grinder will only start running with the protective cover closed. If the grinding cup is not installed or closed correctly, the main machine displays an error message and the Grinder does not start running. The grinding cup cannot be opened during the grinding process. A curved ring seal between the motor and the grinding cup prevents dust from flying out of the grinding cup or into the motor.

IKA Tube Mill control Grinder, Germany

Features

Clear, multi-language OLED LCD display

Timer: The Timer Range is 5 s - 3 min

USB interface for remote control and data logging

Intermittent operation is possible

Infinitely variable speed range from 5000 to 25,000 rpm

A variety of operating modes are available

Adjustable safety speed

Adjustable safety time

Programmable and storable of test conditions

Error code display function

Reproducible test results

The touch buttons are easy to operate

Hermetically sealed dustproof housing

Runs silently
