German IKA M20 Universal mill Grinder

The German IKA M20 Universal mill Grinder is suitable for drying ground of hard, brittle substances. The M20 Grinder can be used with two grinding chambers alternating with a motor.
Contact
Details SPEC CAT

IKA M20 Universal mill GrinderSPEC

IKA M20 Universal mill GrinderDetails

IKA M20 Universal mill GrinderPacking list

SKU
NB021476
Motor Power
225W
Speed regulation range
20000 rpm
Dimension
170*350*170 mm
Power supply Voltage
230 / 115 / 100 V
Weight
6.6kg
Process type
batch processing
Working principle
Shear/Impact
Motor Input Power
450W
Maximum circumferential velocity
72m/s
Maximum usage Volume
250ml
Maximum Feed Hardness
5Mohs
Maximum feed particle
7mm
Impact/shear cutter head material
Stainless steel 1.4034
Grinding chamber material
Stainless steel 1.4301
Working time
7min
Working time
10 min
Grinding room, chilled down with water
Yes
Grinding materials can be chilled down with dry ice in the grinding chamber
Yes
Environmental temperature
5 - 40 ℃
Allowable Relative Humidity
80 %
Type of protection
IP 21
Frequency
50/60 Hz
M20 Universal mill
Grinder

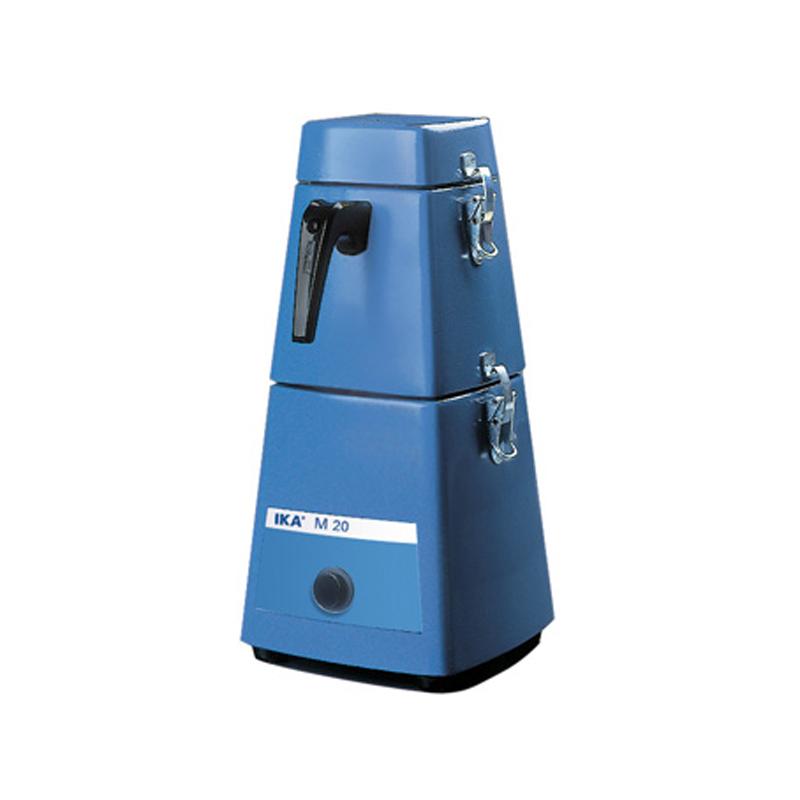

German IKA M20 Universal mill Grinder Picture

Introduction

Universal grinding machine, suitable for dry grinding of hard, brittle substances.

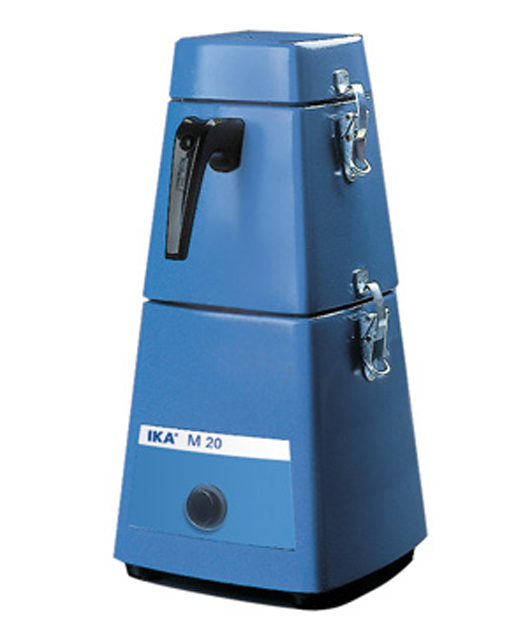

IKA M20 Universal mill grinding machine

Features


The grinding chamber is jacketed and the cooling water can be connected via a pipe fitting

The grinding chamber is removable, easy to clean, and grinding is more convenient

Two grinding chambers can be used, alternating with one motor

The grinding head M 21 has been installed in the grinding machine
