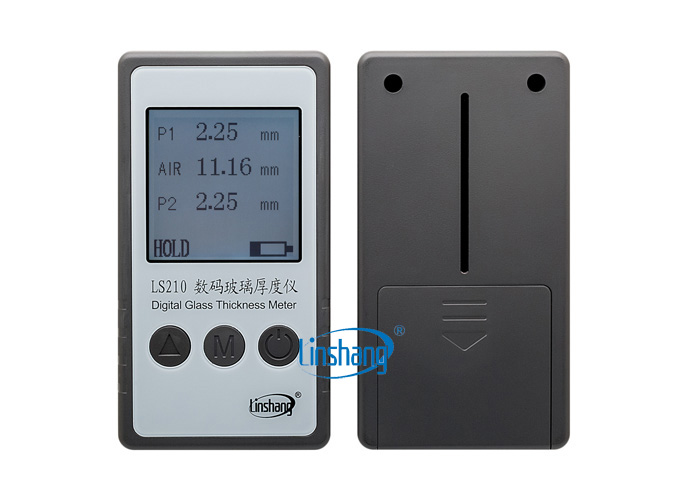

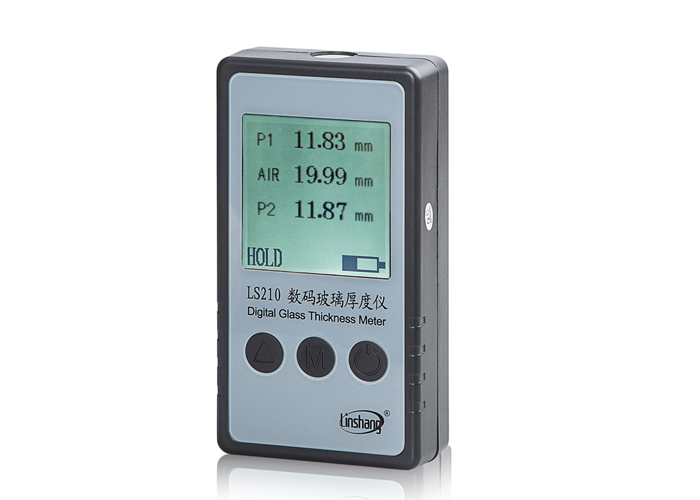

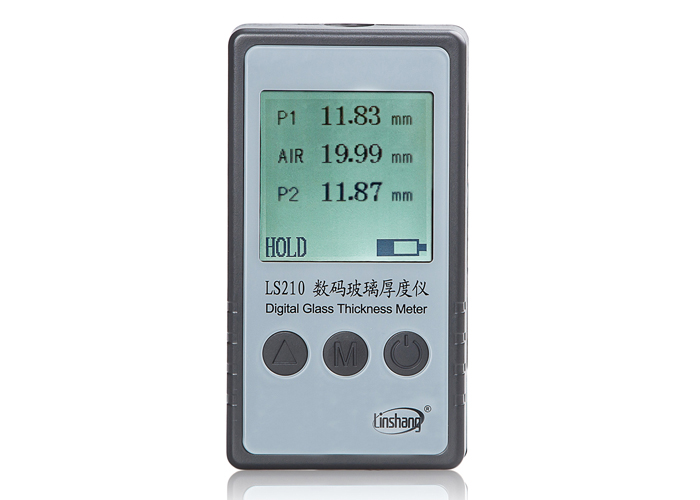

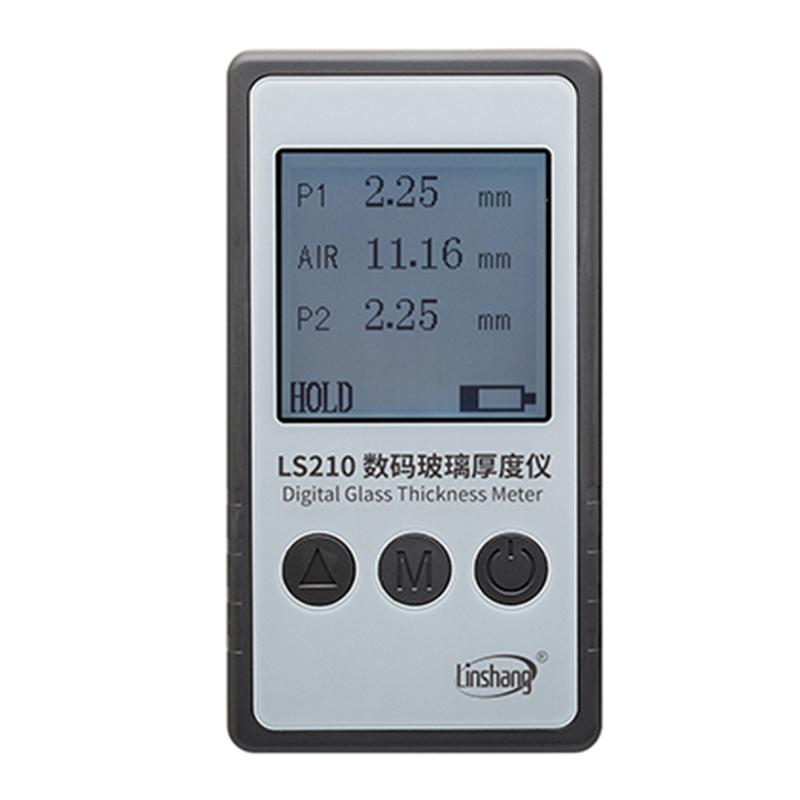

LINSHANG LS210 Digital Glass Thickness Meter

LS210

Digital Glass Thickness Meter

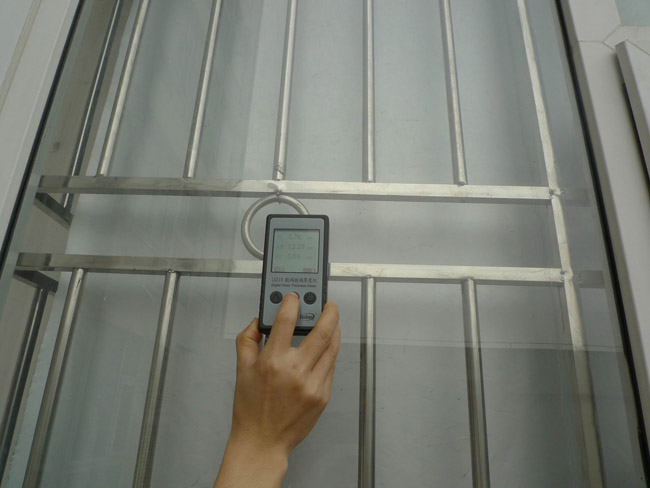

The LS210 digital glass thickness meter uses the principle of optical reflection to measure the thickness of glass on one side of the glass. It is especially suitable for measurement occasions where general measuring tools such as scales or calipers cannot or are difficult to operate, such as building laminated glass (insulating glass) windows. Thickness measurement. For the measurement of air laminated glass, the thickness of the two layers of glass and the middle air layer can also be obtained simultaneously. The instrument uses CCD detection and LCD display, which is simple to operate and makes measurement fast and reliable.

LS210 insulating glass thickness meter parameters

    1. Overall dimensions: length 130mm * width 70mm * height 28mm

    2. Instrument weight: 200 grams

    3．Measurement accuracy: ±0.2mm

    4．Measuring range: glass thickness 1mm~60mm, air sandwich 0.6mm~35mm

    5. Batteries: 4 AAA alkaline dry batteries

Features of LS21 0 digital insulating glass Thickness Gauge

    1. Laser reflection principle, single-sided measurement, digital display

    2. Insulated glass, simultaneously measuring air interlayer thickness and glass thickness

    3．It has the characteristics of simple and convenient operation, fast measurement, light and portable, energy saving and environmental protection.

    4．Suitable for quality inspection, supervision, teaching, production, sales, engineering construction and other occasions

Packing list：Digital Glass Thickness Meter x1, Certificate of Conformity x1, Manual x1, Warranty Card x1, Plastic Engineering Box x1, AAA Battery x4

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
