Germany IKA C-MAG HS 7 digital Magnetic Stirrer

The German IKA C-MAG HS 7 digital Magnetic Stirrer features a seamless ceramic disk with built-in heating function, and the C-MAG HS 7 digital has three different operation modes with a stirring capacity of 10L.
Contact
Details SPEC CAT

IKA C-MAG HS 7 digital Magnetic StirrerSPEC

IKA C-MAG HS 7 digital Magnetic StirrerDetails

IKA C-MAG HS 7 digital Magnetic StirrerPacking list

SKU
NB021494
station number
1 station
Max. Capacity of stirring
10L
Stirring speed
100~1500rpm
Speed regulation mode
Scale 0 - 6
Temperature range
50~500℃
Safety protection temperature
550℃
Heating power
1000W
Input Power
1020W
Mixer size
80mm
Pan size
180*180mm
Panel Material
ceramics
Dimensions
215*105*330mm
Power
230/120/100V 50/60 Hz
Machine Weight
5kg
Protection level
IP21
Ambient Temperature
5~40℃
Allowable Relative Humidity
80%
Heating speed
5 K/min
C-MAG HS 7 digital
Magnetic Stirrer
Germany IKA C-MAG HS 7 digital Magnetic Stirrer Picture

product description

The new heating magnetic stirrer has a seamless ceramic plate with super strong resistance to chemical corrosion.

- Powerful motor, stirring volume 10 l (H2O)

- LCD display of set temperature and actual temperature simultaneously

- Can be directly connected to PT 1000 temperature sensor to achieve precise temperature control (PT 1000 temperature sensor is randomly configured)

- Medium (solution) temperature control accuracy up to +/- 0,5 K (with PT 1000 temperature sensor)

- Using the PT 1000 temperature sensor, the actual temperature of the medium (solution) is displayed with an accuracy of up to 0,1 K

- 3 operating modes available (standard, safety, locking adjustment)

- Fixed safety temperature 550℃

- Thermal warning display: The indicator light flashes during heating to warn the user that the Heating Plate is too high and cannot be touched!

- Digital display of error codes

- The control panel is elevated to minimize the chance of solution splashing onto the panel

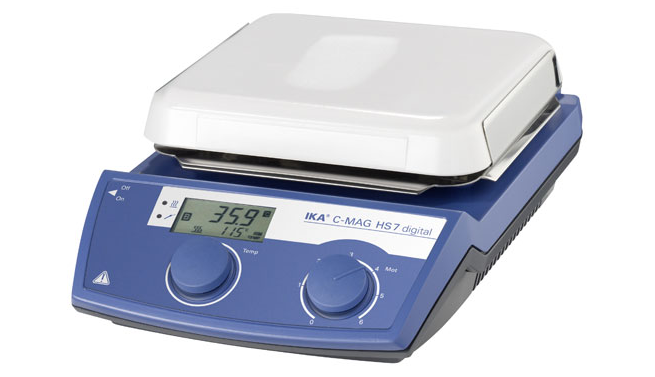

German IKA C-MAG HS 7 digital magnetic stirrer display

IKA C-MAG HS series model comparison

modelC-MAG HS 4 C-MAG HS 7C-MAG HS 10C-MAG HS 4 digitalC-MAG HS 7 digitalC-MAG HS 10 digital
Display methodDigital tube displayLCD digital display
Number of stirring points1
Maximum stirring volume (H2O)5L10L15L5L10L15L
Motor output power1.5 W
turn aroundLeft
Speed ​​controlScale 0 - 6
speed range100-1500rpm
Maximum length of stirrer30mm80mm80mm30mm80mm80mm
Heating output power250W1000W1500W250W1000W1500W
Heating temperature range50 - 500℃
Heating temperature controlledledledSteplessLCDStepless
Heating speed2.5 K/min5K/mi5K/min2.5 K/min5K/min5K/min
External temperature sensor interface-ETS-D5ETS-D5PT1000
Fixed safety temperature circuit550℃
Work plate materialceramics
Overall dimensions of work plate100 x 100mm180x180mm260x260mm100 x 100mm180x180mm260x260mm
Dimensions150x105x260mm215x105x330mm300x105x415mm150x105x260mm215x105x330mm300x105x415mm
weight3kg
5kg6kg3.566kg5kg8.308kg
allowable ambient temperature5-40℃
allowed Relative Humidity80%
DIN EN 60529 protection methodsIP 21
Voltage230/120/100V
frequency50/60 Hz
Instrument input power270W1020W1520W270W1020W1520W
