Germany

IKA RT 5 digital heating Magnetic Stirrer 5 stations

The IKA RT 5 digital heating Magnetic Stirrer has five stations for simultaneous stirring and heating, and uses touch buttons. The working plate of the RT 5 is aluminum alloy and measures 110x495mm.
Model：
Contact
Details SPEC CAT

IKA RT 5 Magnetic StirrerSPEC

IKA RT 5 Magnetic StirrerDetails

IKA RT 5 Magnetic StirrerPacking list

SKU
NB021499
station number
5 stations
Max. Capacity of stirring
400mL
Stirring speed
0~1000rpm
Speed regulation mode
10 RPM Steps
Temperature range
RT+~120℃
Safety protection temperature
50~150℃
Heating power
175W
Input Power
200W
Mixer size
25~30mm
Pan size
110*495mm
Panel Material
aluminum alloy
Dimensions
120*60*610mm
Power
230/115/100V 50/60 Hz
Machine Weight
4kg
Protection level
IP40
Ambient Temperature
5~40℃
Allowable Relative Humidity
80%
Mixing point spacing
90mm
Temperature control mode
LED
Heating speed
3 K/min
RT 5
Magnetic Stirrer

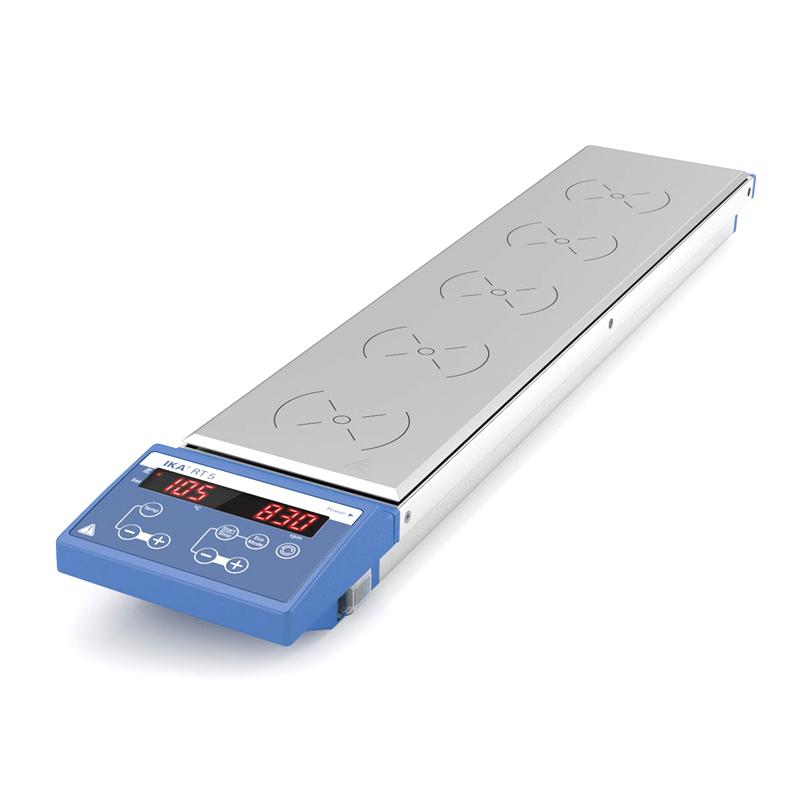

IKA RT 5 digital heating Magnetic Stirrer 5 stations Picture

Introduction

5-point digital heating magnetic stirrer, suitable for simultaneous stirring and heating applications. Magnetic coil technology provides consistent, noiseless stirring at multiple points. Consistent reproducibility is achieved at all sites. The temperature of the Heating Plate is infinitely adjustable up to 120 ℃, allowing the sample temperature to be heated up to 70 ℃ (depending on the container type). The rotational speed is constant, even if the load capacity changes.

  • The temperature of the Heating Plate is evenly distributed

  • Adjustable forward and reverse operation

  • Economic mode Heating Plate can automatically heat at low temperatures

  • Wear-free magnetic coil

  • Error code display function

  • Touch keys for easy operation

  • Suitable for continuous operation

  • The speed is adjustable in steps of 10 rpm

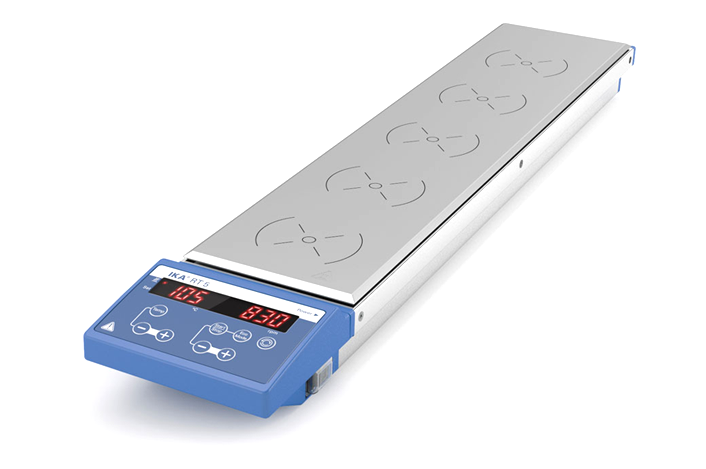

IKA RT 5 digital heating magnetic stirrer display

IKA RT series magnetic stirrer model comparison

modelRT 5RT 10RT 15
Number of stirring points51015
Stirring point spacing90 mm
Rotation speed deviation of a single stirring point0%
Maximum stirring volume (H2O)0.4 l
Speed ​​control10 RPM Steps
speed range0-1000rpm
Stirrer length25-30mm
Heating output power175W375W580W
Heating temperature rangeRoom temperature - 120 ℃
Heating temperature controlled
Heating speed3 K/min
Adjustable safety temperature circuit min.50-150℃
Work plate materialAluminum alloy
Overall dimensions of work plate110x495mm
Dimensions120x60x610mm
weight4kg7.5kg10.5kg
allowable ambient temperature5-40℃
allowed Relative Humidity80%
DIN EN 60529 protection methodsIP 40
Voltage230/115/100V
frequency50/60 Hz
Instrument input power200W410W620W
