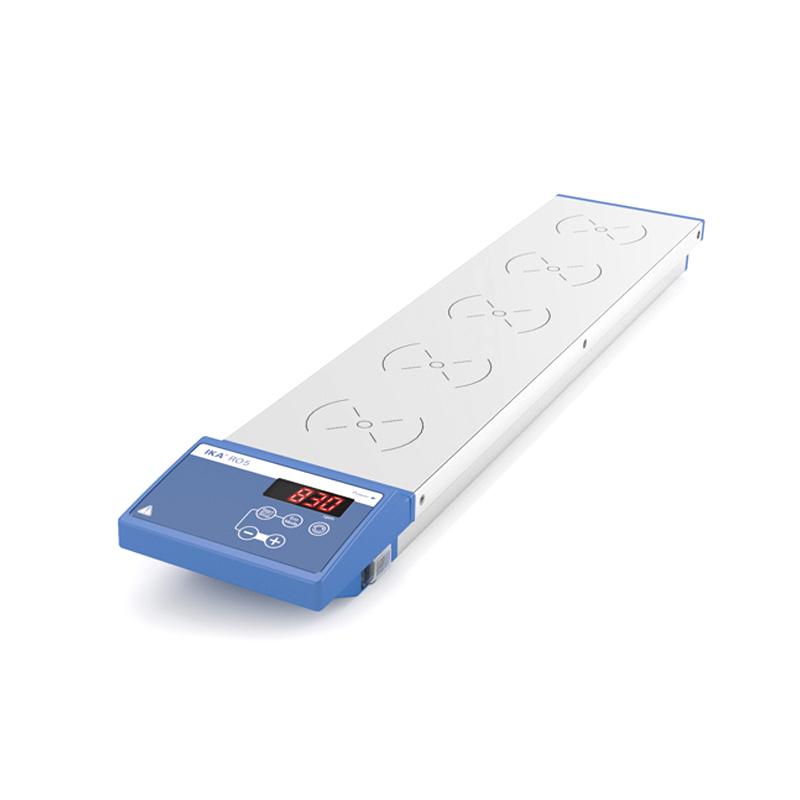

IKA RO 5 Point Digital Magnetic Stirrer Stainless Steel Disc

IKA RO 5 5-point digital Magnetic Stirrer has 5 stations that can perform stirring work at the same time, without heating function. The stirrer length used in RO 5 is 25~ 30mm, which can be adjusted for positive and reverse.
Model：
Contact
Details SPEC CAT

IKA RO 5 Magnetic StirrerSPEC

IKA RO 5 Magnetic StirrerDetails

IKA RO 5 Magnetic StirrerPacking list

SKU
NB021504
station number
5 stations
Max. Capacity of stirring
400mL
Stirring speed
0~1200rpm
Speed regulation mode
10 RPM Steps
Input Power
13W
Mixer size
25~30mm
Pan size
120*470mm
Panel Material
Stainless steel 1.4301
Dimensions
120*60*570mm
Power
100~240V 50/60 Hz
Machine Weight
3.66kg
Protection level
IP40
Ambient Temperature
5~40℃
Allowable Relative Humidity
80%
Mixing point spacing
90mm
DC Voltage
12V=
current consumption
500mA
RO 5
Magnetic Stirrer
IKA RO 5 Point Digital Magnetic Stirrer Stainless Steel Disc Picture

Introduction

5-point digital magnetic stirrer without heating function, designed for simultaneous stirring. Lossless magnetic coil technology enables noiseless and continuous operation at all stirring points. Even if the load changes, the speed remains constant. The enclosed, compact design makes cleaning easy and protects the device from liquid penetration. Additionally, a removable clear non-slip mat is included.

  • Adjustable forward and reverse

  • No wear magnetic coil

  • error code display

  • Easy to operate with touch buttons

  • Suitable for continuous operation

  • Speed ​​range: 0 - 1200 rpm

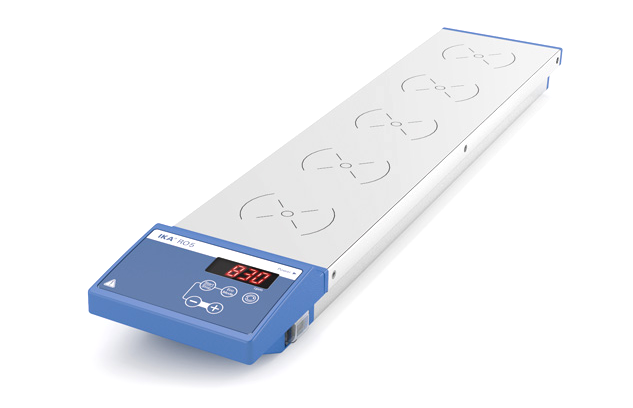

IKA RO 5 5-point digital magnetic stirrer display

IKA RO series magnetic stirrer model comparison

modelRO 5RO 10RO 15
Number of stirring points51015
Stirring point spacing90 mm
Rotation speed deviation of a single stirring point0%
Maximum stirring volume (H2O)0.4 l
Speed ​​control10 RPM Steps
speed range0-1200rpm
Stirrer length25-30mm
Work plate materialStainless steel 1.4301
Overall dimensions of work plate120x470mm190x470mm280x470mm
Dimensions120x60x570mm190x60x570mm280x60x570mm
weight3.66kg5kg8.627kg
allowable ambient temperature5-40℃
allowed Relative Humidity80%
DIN EN 60529 protection methodsIP 40
Voltage100-240V
frequency50/60 Hz
Instrument input power13W25W40W
DC Voltage24V=
Current consumption500mA1000mA1500 mA
