KSJ MG268-F2 Intelligent Gloss Meter 20 °/60 °/85 ° Gloss + Haze + reflectance

SE
Three-angle measurement, including haze and reflectance measurement, MG268-F2 boot self-calibration and self-diagnosis, 10,000 measurement data storage capacity, support for deleting data, standard Gloss data processing software.
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

KSJ MG268-F2 Intelligent Gloss MeterSPEC

KSJ MG268-F2 Intelligent Gloss MeterDetails

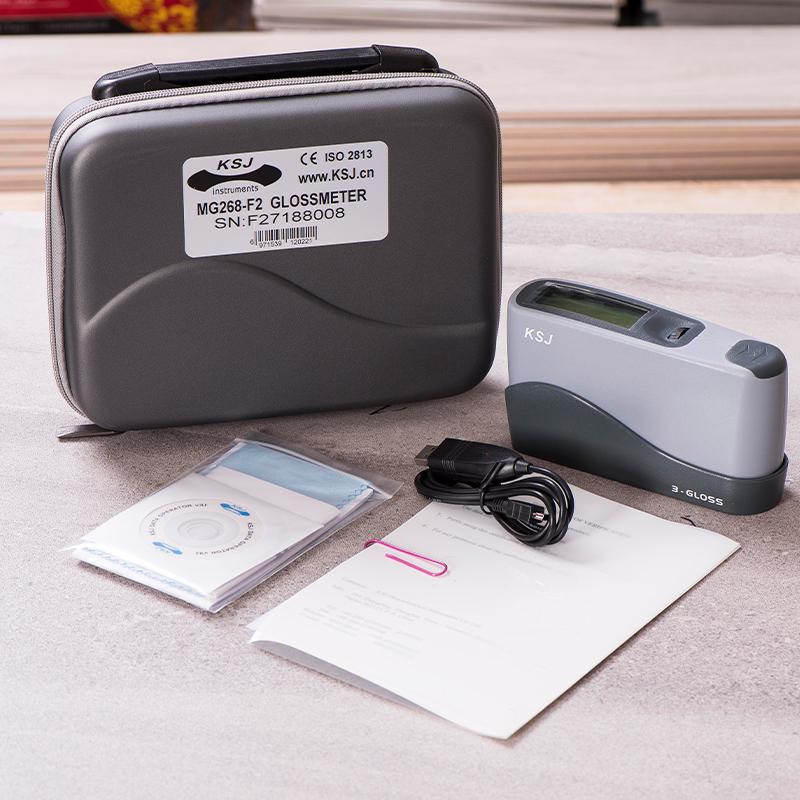

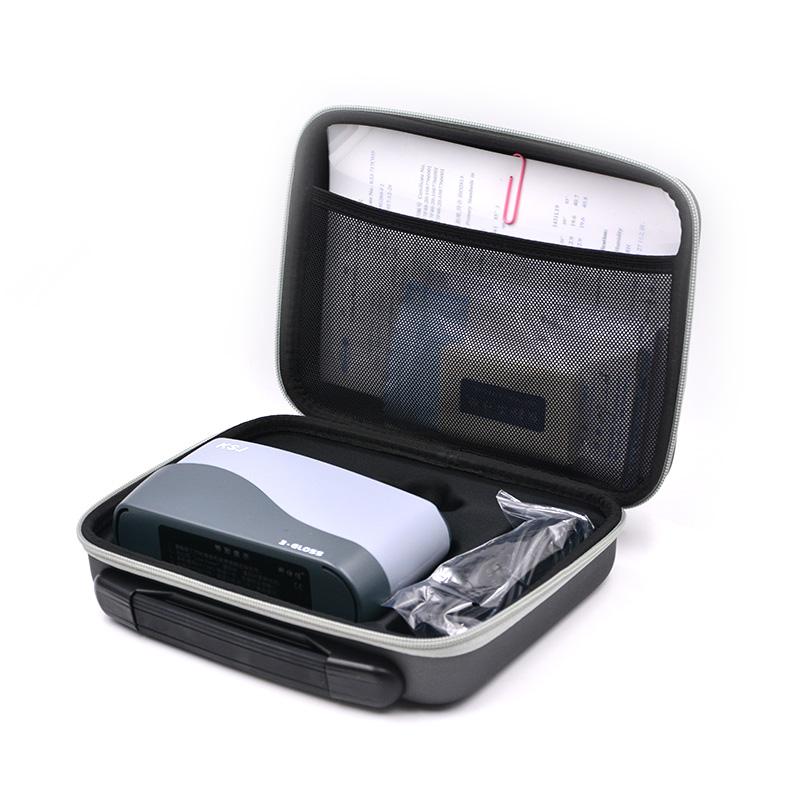

KSJ MG268-F2 Intelligent Gloss MeterPacking list

SKU
NB002155
Geometry
20°/60°/85°
Measuring range
Gs(20°)：0~119.9、 Gs(60°)：0~119.9、 Gs(85°)：0~119.9；Gs(20°)：120~2000、 Gs(60°)：120~1000 、Gs(85°)：120~160
Repeatability
0.2GU；0.2%
Reproducibility
0.5GU|0.5%
Measuring Areas
9*10mm(20°)；9*16mm(60°)；5*39mm(85°)
Error of indication
±1.5; ±1.5%
Division Value
0.1GU|1GU
Standards
ASTM D523、GB/T13891、GB7706、GB8807、JJG 696-2002
Dimensions
155 * 48 * 75mm (without base)
Weight
400G (including battery and base)
Power
One AA (or LR6) alkalinity dry or rechargeable battery
Operating Temperature
10~40℃
Storage temperature
-10℃~60℃
Operating Time
One alkalinity dry battery can support more than 20,000 measurements
Zero Error
0.2GU
MG268-F2
Intelligent Gloss Meter
Three-angle measurement, including haze and reflectance measurement, MG268-F2 boot self-calibration and self-diagnosis, 10,000 measurement data storage capacity, support for deleting data, standard Gloss data processing software.
KSJ MG268-F2 Intelligent Gloss Meter 20 °/60 °/85 ° Gloss + Haze + reflectance Picture

product description

KSJ MG268-F2 intelligent gloss meter is a gloss measuring instrument designed and manufactured according to the international standard ISO2813 and Chinese national standard GB/T9754. The Specifications of the intelligent gloss meter meet the requirements of ASTM D523, GB/T13891, GB7706, and GB8807 standards. All performance indicators meet the requirements of the first-class working machine in the national JJG 696-2002 "Specular Gloss Meter and Gloss Board" metrological verification regulations.

The gloss value of the intelligent gloss meter can be traced back to the national glossiness benchmark of Shanghai Institute of Metrology and Testing Technology (SIMT).

The main function

  • Multi-angle one-key to complete the measurement

  • Optional angle mode

  • Power-on self-diagnosis, self-calibration

  • Practical and rich display interface: Simultaneously display each current measurement value, average value, group sequence number and measurement sequence number

  • The measurement data is pre-grouped, and each measurement group can contain a maximum of 99 measurements

  • The unit of measurement defaults to Gloss Units (GU), and can also be switched to Percent Reflectance (%)

  • Grouped measurement data can be browsed by specifying the group number

  • Immediate deletion of invalid measurements

  • Comes with USB adapter and Glossy data processing software

  • It has the functions of low power prompt and full storage prompt

  • Has haze value calculation and percentage reflectance unit conversion function

  • Massive storage, can store 10,000 measurement data or 999 group data

Application

MG268-F2 intelligent gloss meter is widely used in materials and products in many fields such as paint coatings, decoration materials, building materials, plastic materials, bamboo and wood products, ceramic products, leather products, film paper, printing ink, automobile maintenance, molding molds, etc. Gloss measurement of surfaces.

structure diagram

KSJ MG268-F2 intelligent gloss meter is the front structure diagram

Back structure diagram of KSJ MG268-F2 intelligent gloss meter

Structural diagram of KSJ MG268-F2 intelligent gloss meter working board

Structural diagram of the battery compartment of KSJ MG268-F2 intelligent gloss meter

Structural diagram of KSJ MG268-F2 intelligent gloss meter calibration work board

plan

KSJ MG268-F2 Intelligent Gloss Meter Display

FAQ
QCan the diameter of this glossmeter sample be measured at 3mm?
A No, the measuring port of the MG268-F2 is 12mm * 60mm.
QCan KSJ's glossmeter measure the average?
A Yes, all four models of the F2 Smart Series can be automatically averaged.
QIs there a recommended instrument for measuring aluminum coating glossmeters?
A This one suits you.
QIs this a haze and Gloss reflectance machine? Can you measure the haze and Gloss of Plastic film?
A Sure
QWhich product can measure haze Glossiness, Plastic film material
A This one can measure Gloss, haze and reflectance
QGlossiness of lame plating parts after painting
A This three-angle fit
QWhere is this MG268-F2 glossmeter generally used?
A Gloss measurement of surfaces of materials and products in many fields such as paints Coatings, decoration materials, building materials, plastic materials, bamboo and wood products, ceramic products, leather products, film paper, Printing ink, automobile maintenance, molding molds, etc
QMainly detect abnormal Gloss of film products
A This one is ok.
QPlastic film can this gloss instrument detect?
A Hello, it's OK.
QWill the strong light environment affect the measurement of glossmeters? How to solve?
A Strong light environment will affect the measurement of glossmeter, it is recommended to avoid strong light environment measurement, if you want to avoid external light leakage, you can use black flannel around the measuring port to block the rays of light.
