IKA MINISTAR 40 digital display cantilever Stirrer 25L

IKA MINISTAR 40 digital display cantilever Stirrer can achieve 25L stirring volume, using LED display Rotation speed, MINISTAR 40 Speed range is 50~1000rpm, stirring viscosity of 30000mPas.
Contact
Details SPEC

IKA MINISTAR 40 digital Cantilever StirrerSPEC

IKA MINISTAR 40 digital Cantilever StirrerDetails

IKA MINISTAR 40 digital Cantilever StirrerPacking list

SKU
NB021557
Rated Voltage
100~240V
Rated Frequency
50/60Hz
Input Power
60W
output power
46W
drive type
Brushless DC motor
Max Torque
40N.cm
Speed range
50~1000rpm
Speed regulation mode
Control knob
Timer
without
Rotation speed display
LED
Impeller fixing method
Collet
Max Torque
40N.cm
Rotary collet clamping range
Φ0.5~8mm
Processing Capacity
25L
maximum viscosity
30000mPa·s
Interface
USB port
Environmental temperature
5~40℃
Allowable Relative Humidity
≤80%
Dimensions of the whole machine
70*193*147mm
Machine Weight
1.72kg
Shell material
Cast aluminum coating/thermal plasticity polymer
MINISTAR 40 digital
Cantilever Stirrer

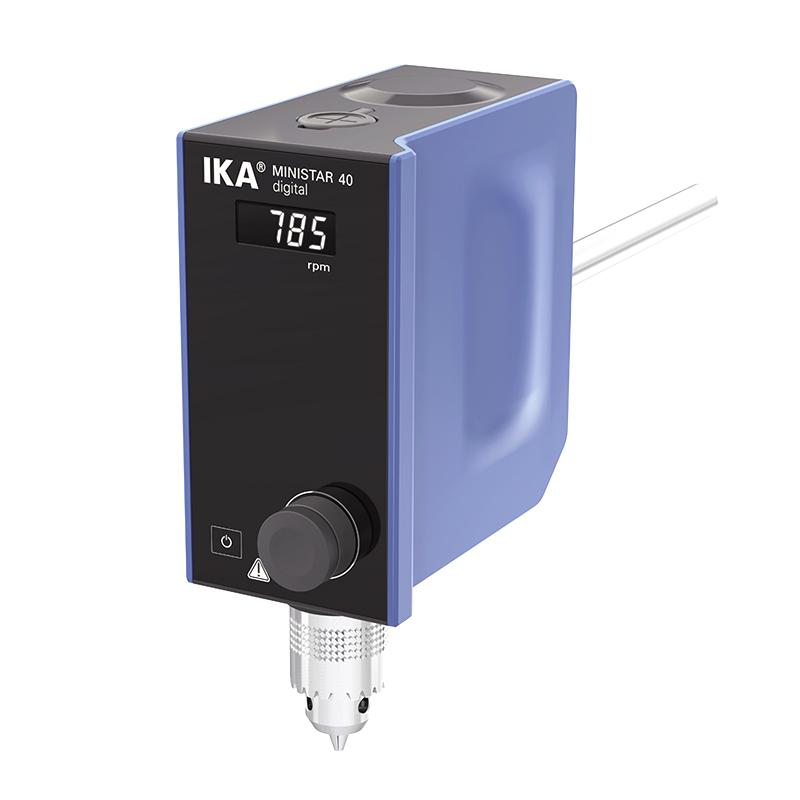

IKA MINISTAR 40 digital display cantilever Stirrer 25L Picture

Introduction

The high-performance IKA MICROSTAR and MINISTAR series complete the IKA family of overhead agitators, with the new digital display still in a space-saving design, offering good basic functionality and ease of use.

Features

1) Small and compact shape

With a focus on core functionality and a streamlined product design, the new IKA MICROSTAR and MINISTAR digital overhead stirrers are your reliable experimental partner.

2) The performance is still strong

All models of the IKA MICROSTAR and MINISTAR series ensure strong performance in the speed range, as well as a constant operating speed. The new 6 models with a maximum speed of up to 2000 rpm and a maximum torque of up to 80 Ncm.

3) Easy to operate

It can be easily adjusted with the rotary knob, and the operation experience is smooth. The display shows the rotational speed and is clear and easy to read.

4) Get updates quickly

Quickly access and upgrade your device software via the USB interface.

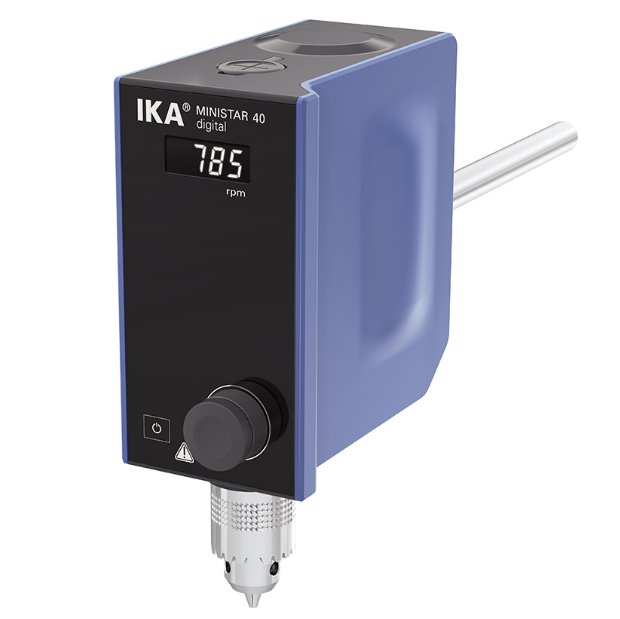

Illustration of the IKA MINISTAR 40 digital cantilever agitator

Comparison of models of the IKA MINISTAR series

ModelMINISTAR 20 digitalMINISTAR 40 digitalMINISTAR 80 digital
Maximum stirring capacity (H2O)15 l25 l50 l
Motor input power60 W
Motor output power46 W
Motor principleBrushless DC motor
Rotational speed displayLED
Minimum speed50 rpm
Minimum speed0/50 rpm
Maximum rotational speed2000 rpm1000 rpm500 rpm
Maximum viscosity10000 mPas30000 mPas60000 mPas
Maximum output power of the stirring shaft42 W
Continuous operation time is allowed100%
Maximum torque of the stirring shaft20 Ncm40 Ncm80 Ncm
Maximum shaft torque (overload) at 60 rpm20 Ncm40 Ncm80 Ncm
At 100 rpm, the maximum torque of the mixing shaft20 Ncm40 Ncm80 Ncm
At 1000 rpm, the maximum torque of the stirring shaft20 Ncm40 Ncm80 Ncm
Maximum torque I20 Ncm40 Ncm80 Ncm
Speed range I (50 Hz)50 -2000 rpm50 - 1000 rpm50 - 500 rpm
Speed Range I (60 Hz)50 -2000 rpm50 - 1000 rpm50 - 500 rpm
Rotational speed controlControl knobs
Rotational speed setting accuracy1 ±rpm
n > Deviation of speed measurement at 300 rpm1 ±%
N < speed measurement deviation at 300 rpm3 ±rpm
The impeller is fixedRotary chuck
Plug connection (Ø)5.5 mm
The minimum diameter of the rotor chuck clamping range0.5 - 8 mm
Hollow shaft, inner diameter8.5 mm
Hollow shaft (stop-state can be inserted)be
Bracket fixationExtension arm chuck fixation
Extension arm diameter13 mm
Extend the arm length160 mm
Rated torque0.075 Nm0.4 Nm0.8 Nm
Timer displaynot
Housing materialCast aluminium coating / thermoplastic polymer
Dimensions70 x 193 x 147 mm
weight1.56 kg1.72 kg1.72 kg
Allowable ambient temperature5 - 40 °C
Relative Humidity is allowed80%
DIN EN 60529 protection methodIP 54
USB interfacebe
Voltage100 - 240 V
frequency50/60 Hz
Instrument input power69 W
Instrument input power standby0.5 W
DC Voltage24 V=
Current consumption2900 mA


FAQ
QIs the price listed on the website the final cost for overseas purchases?
ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
QWhat is the specific process for purchasing the product?
AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
QWhat should I do if the instrument I purchase needs repair?
AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
