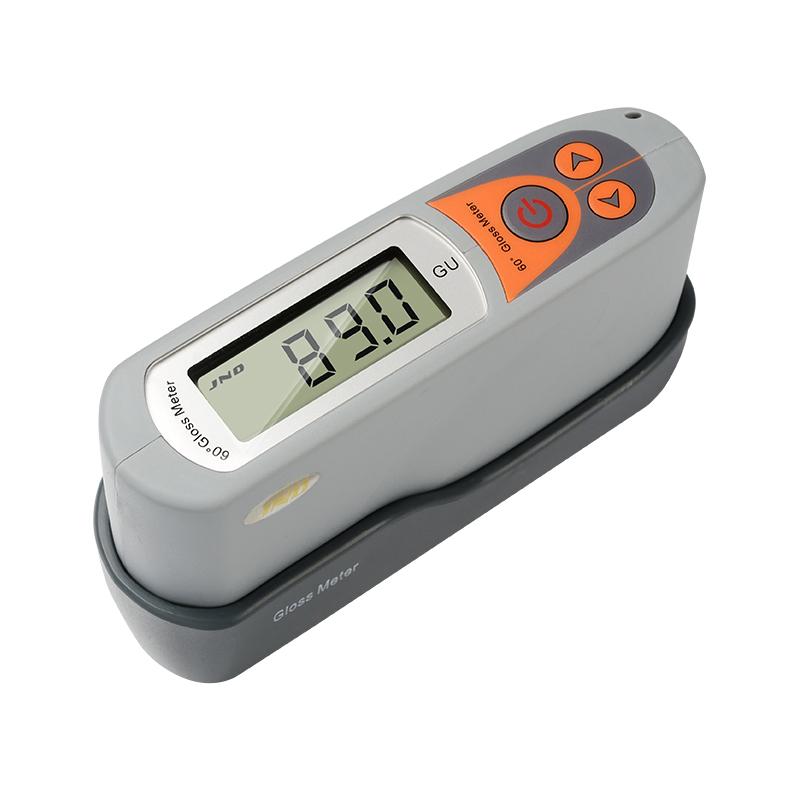

JND MM6 Large range metal gloss meter Gloss range 0.0~1999GU
JND MM6 metal gloss meter is a smart large-range metal gloss meter with a measurement range of 0.0~1999GU and a projection angle of 60 °. MM6 conforms to ISO 2813 and GB/T9754 standards.
Model：
MM6
Similar products
-
Defelsko PosiTector GLS60-3 Single Angle Glossmeter Advanced$ 2446.00SE -
KSJ MG6-SM Portable Gloss meter for metal, wide range, self-calibrated with Bluetooth -
JND WGG60-EJ metal Glossiness Meter$ 350.00SE -
JND XM6 wide range metal Glossiness Meter, large range high precision small aperture measurement$ 413.00SE

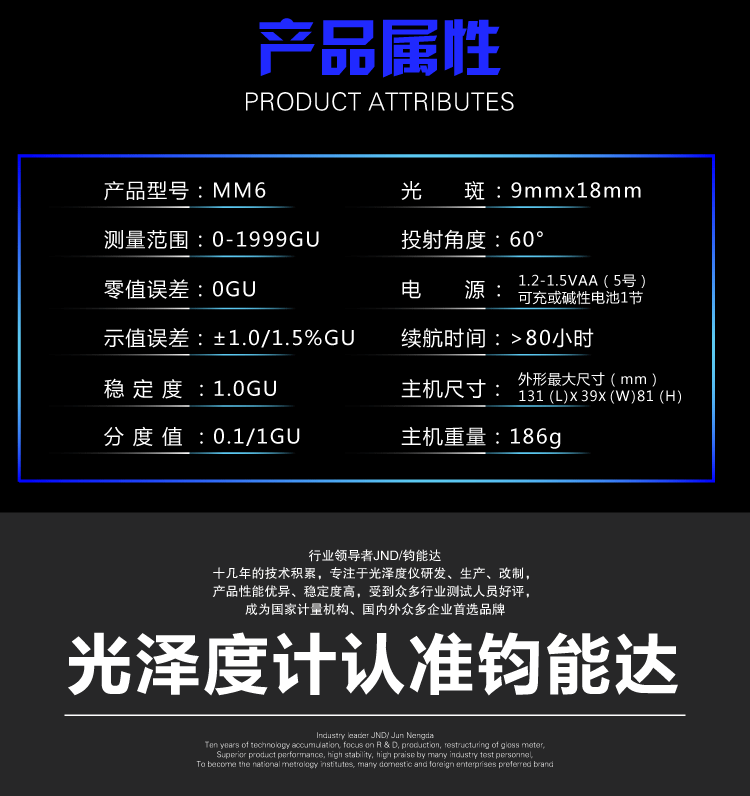

JND MM6 Gloss meterSPEC

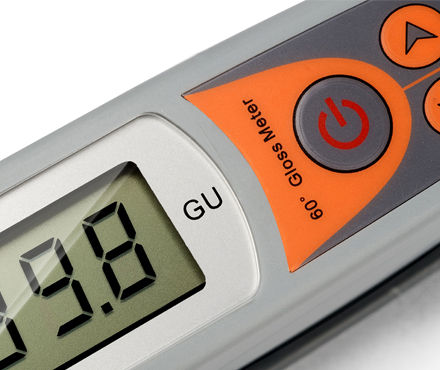

JND MM6 Gloss meterDetails

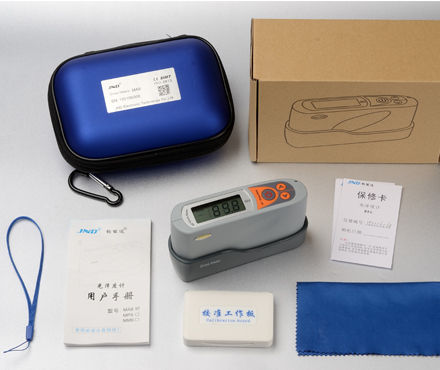

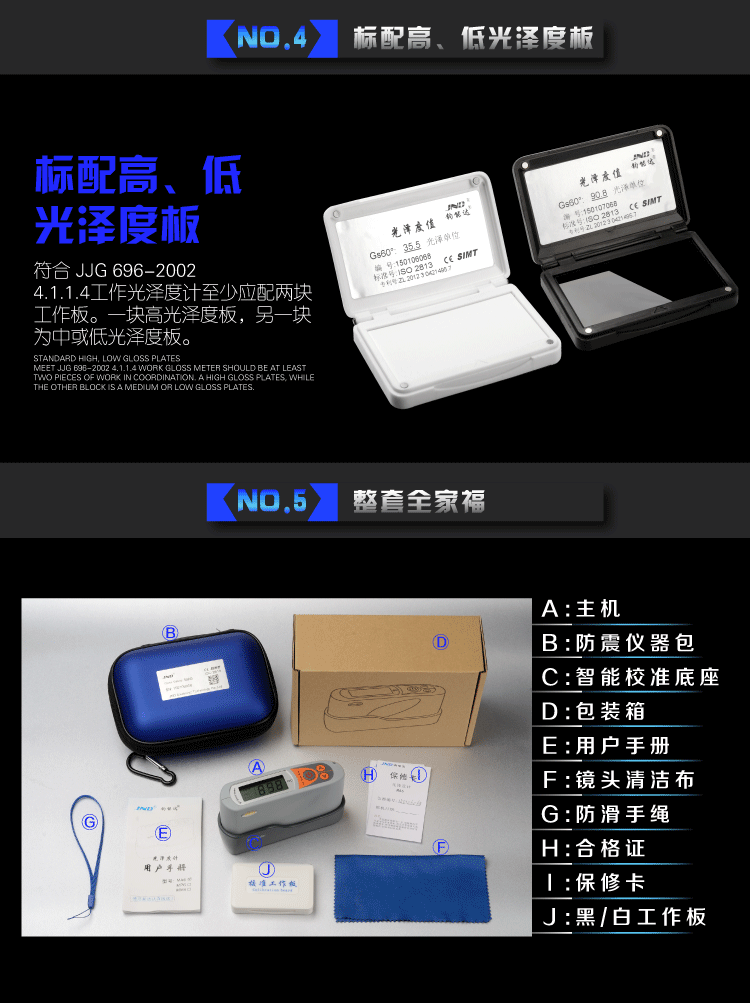

JND MM6 Gloss meterPacking list
- SKU
- NB002156
- Measurement angle
- 60°
- Measurement range
- 0~1999GU
- Measuring Areas
- 9*18mm
- Error of indication
- ±1.0GU（0.0~199.9）/±1.5%GU（200~1999）
- Graduation
- 0.1GU|1GU
- Standards
- ISO 2813 GB/T13891 GB9754 GB7706 GB8807
- Operating language
- Chinese
- Dimensions
- 131*39*81mm
- Weight
- 186g
- Power
- 1.2~ 1.5V AA (No. 5) rechargeable or alkaline battery
- Zero Error
- 0GU

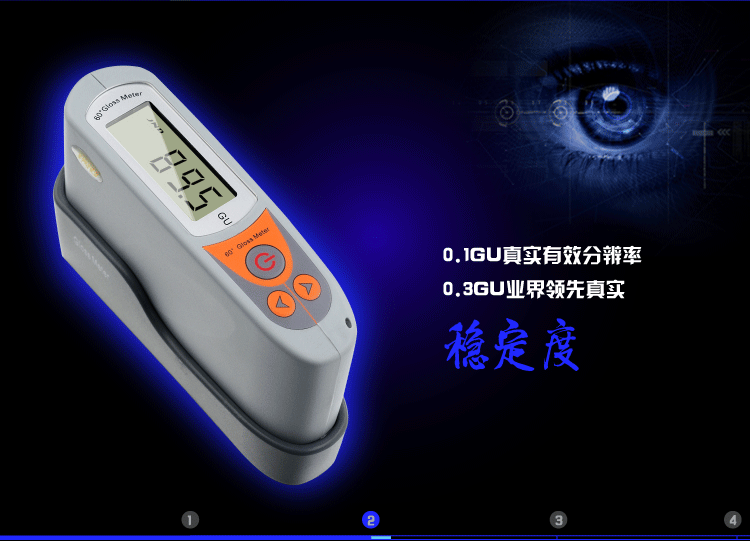

- Stability
- 0.4GU（0.0~199.9）/1GU（200~1999）

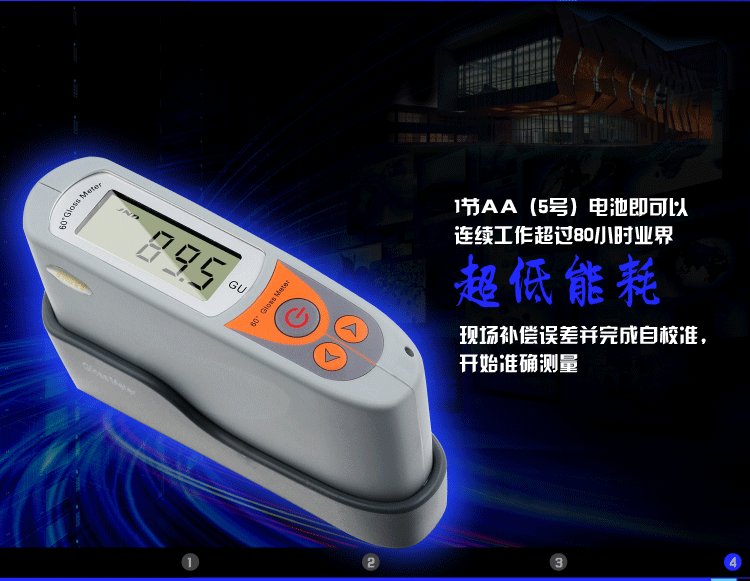

- Operating Time
- >80h
MM6
Gloss meter
MM6 portable gloss meter is a portable gloss meter designed and manufactured in accordance with the international standard ISO 2813 and Chinese national standards GB/T13891 GB9754 GB7706 GB8807. Its technical parameters comply with the provisions of ASTM D2457 and ASTM D523 standards at the same time, and all performance indicators meet the requirements of the second-level working machine in the national standard JJG 696-2002 "Mirror Image Glossmeter and Glossiness Plate" metrological verification regulations.
The gloss value of the instrument is traceable to the glossiness benchmark of the Shanghai Institute of Metrology and Testing Technology (SIMT).
FAQ
QDoes this gloss meter comply with GB/T9754 standard?
A
The gloss meter is suitable for GB/T9754, please consult customer service for detailed application definition
