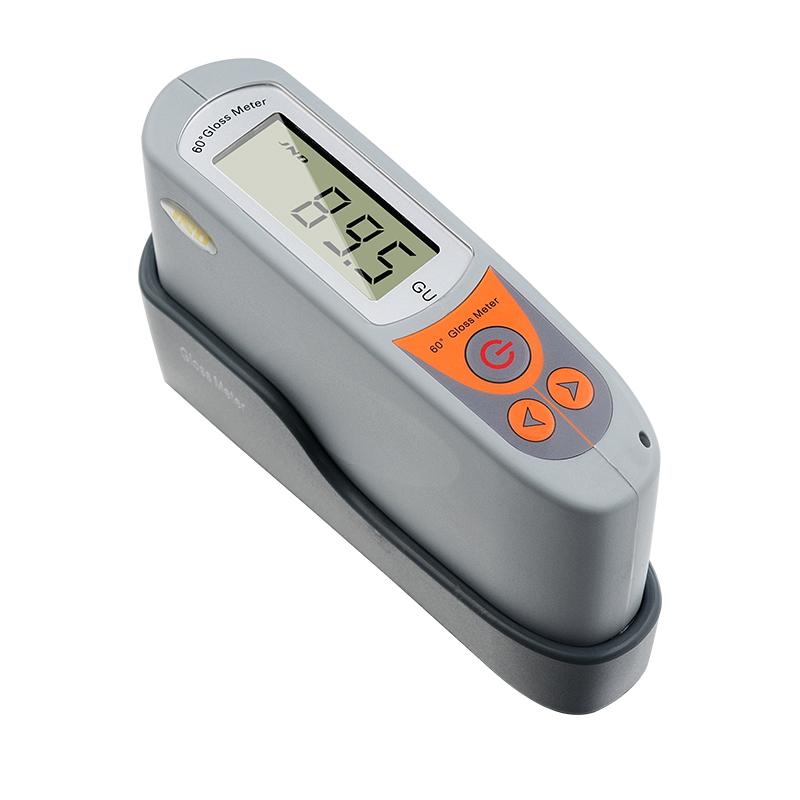

JND MP6 ultra-high accuracy gloss meter Gloss range 0.0~199.9GU

JND high-precision gloss meter, model MP6, is a portable high-precision gloss meter, the error of indication is +/- 1.0GU, the Gloss range is 0.0~199.9GU, MP6 has full intelligent boot self-Adjustment, suitable for automotive coatings, marine coatings, paints, Resin, plastic, metal and other surface gloss testing.

Model：

Certificate

JND

Manufacturer authorization

Contact

Details SPEC CAT OI

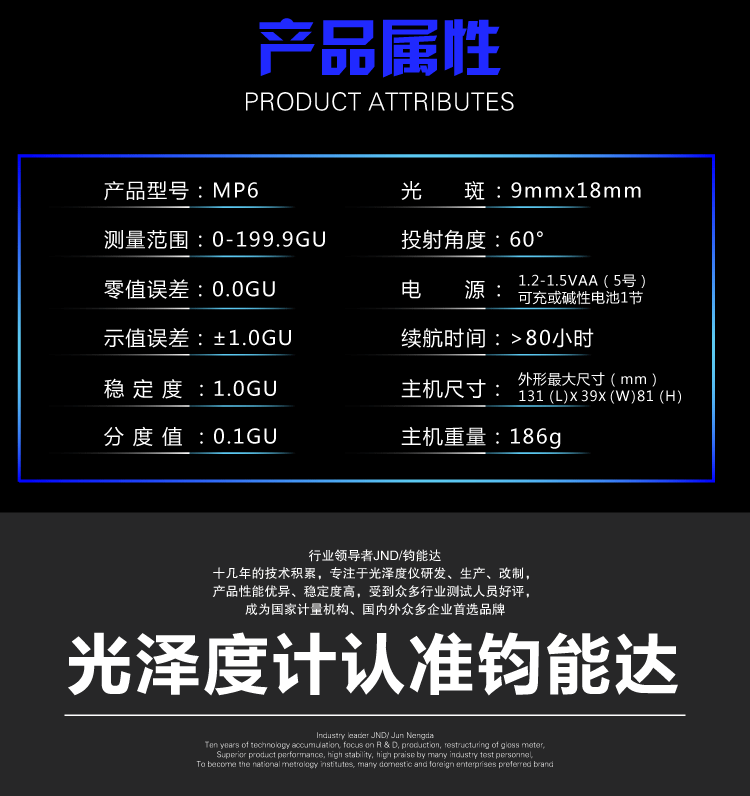

JND MP6 Gloss meterSPEC

JND MP6 Gloss meterDetails

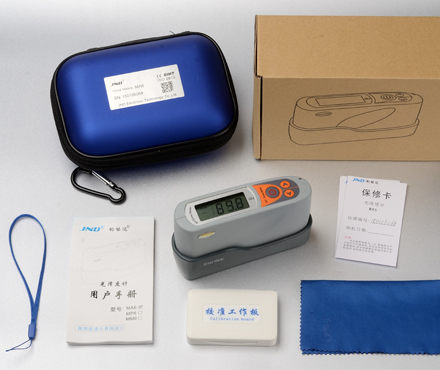

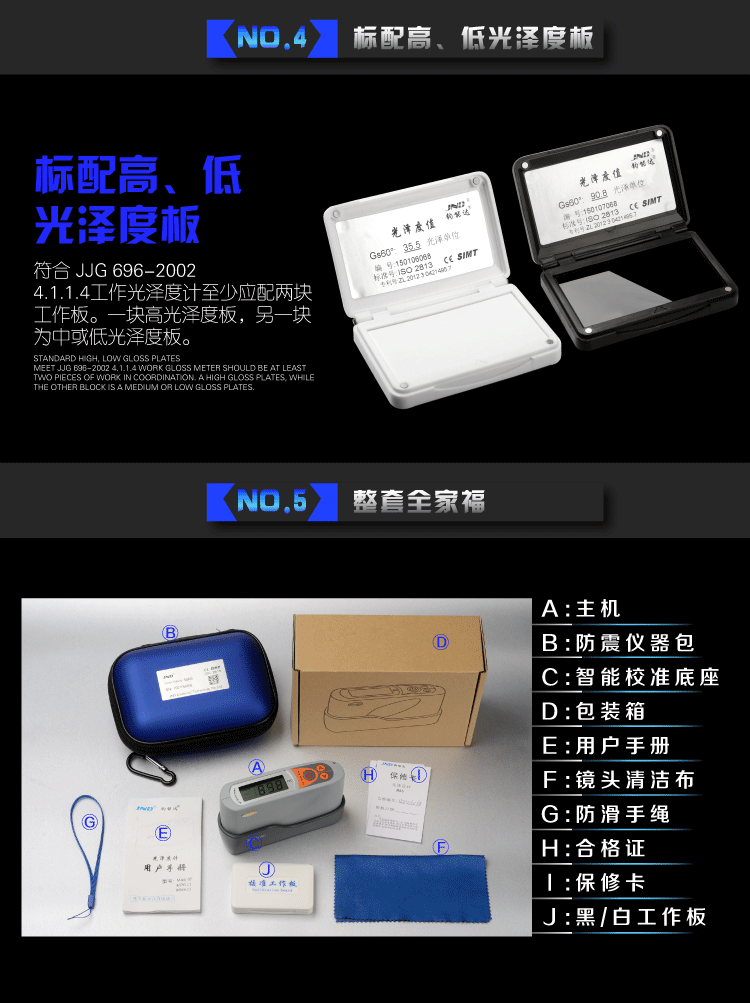

JND MP6 Gloss meterPacking list

SKU: NB002157

Measurement angle: 60°

Measurement range: 0~199.9GU

Measuring Areas: 9*18mm

Error of indication: ±1.0GU

Graduation: 0.1GU

Standards: ISO 2813、GB/T13891 GB9754 GB7706 GB8807、ASTM D2457、ASTM D523、JJG 696-2002

Operating language: Chinese

Dimensions: 131*39*81mm

Weight: 186g

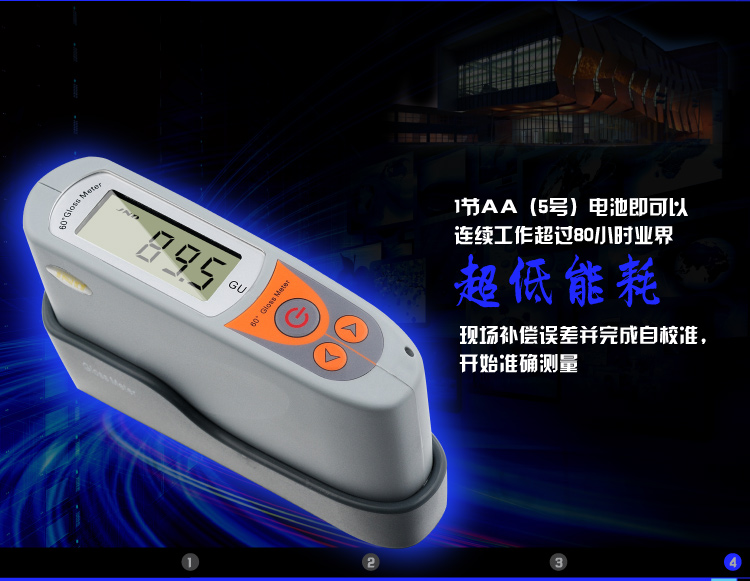

Power: 1.2~ 1.5V AA (No. 5) rechargeable or alkaline battery

Zero Error: 0GU

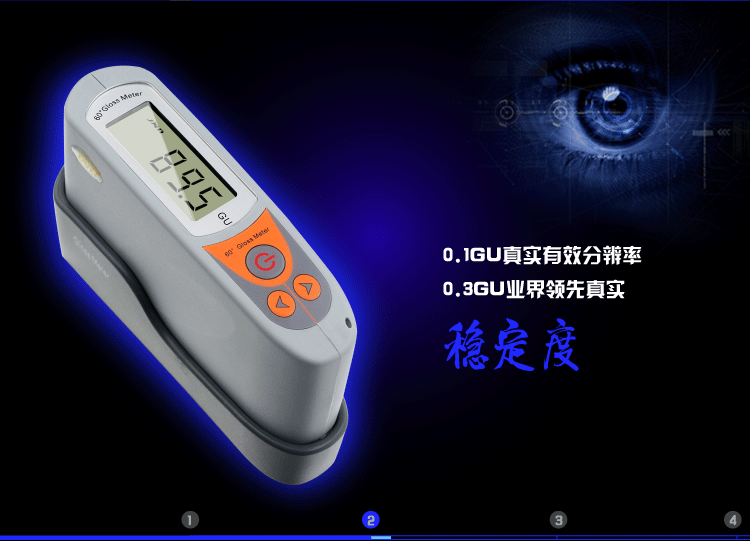

Stability: 0.4GU

Operating Time: >80h

MP6

Gloss meter

JND MP6 ultra-high precision gloss meter is a portable gloss measuring instrument designed and manufactured in accordance with the international standard ISO 2813 and Chinese national standard GB/T13891 GB9754 GB7706 GB8807. Its technical parameters comply with the provisions of ASTM D2457 and ASTM D523 standards at the same time, and all performance indicators meet the requirements of the second-level working machine in the national standard JJG 696-2002 "Mirror Image Glossmeter and Glossiness Plate" metrological verification regulations.

The gloss value of JND MP6 ultra-high-precision gloss meter can be traced to the glossiness benchmark of Shanghai Institute of Metrology and Testing Technology (SIMT).

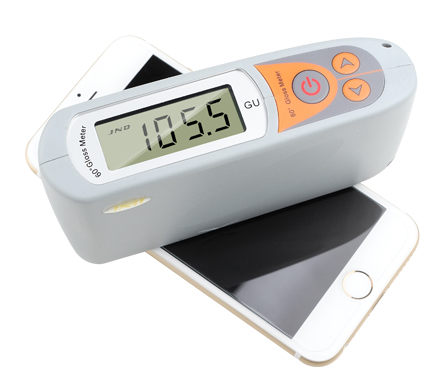

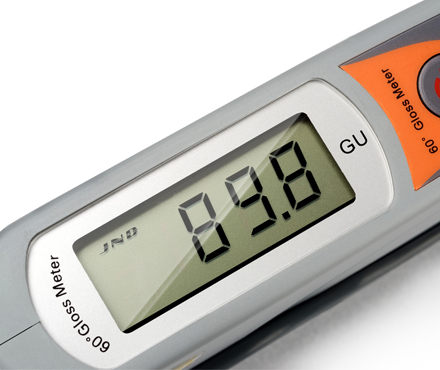

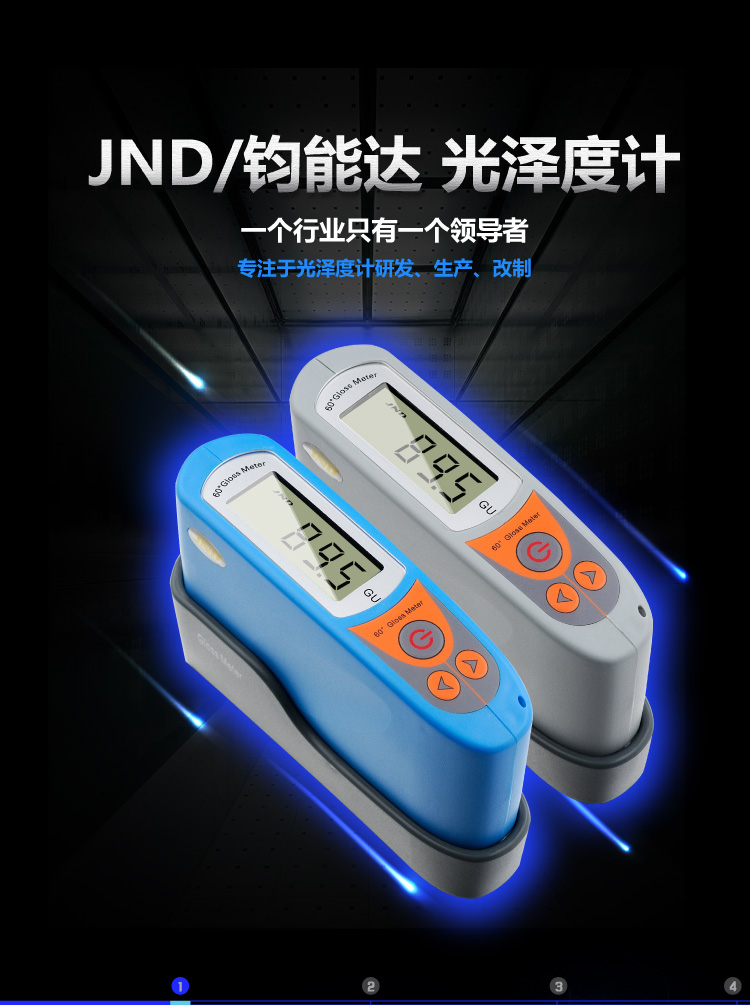

Image of JND high-precision gloss meter
