KSJ MG68-F2 intelligent Gloss meter, projection angle 60 °/85 °

SE
60 °/85 ° dual angle measurement, including haze and reflectance measurement, MG68-F2 boot self-calibration and self-diagnosis, 10,000 measurement data storage capacity, support for deleting data, standard Gloss data processing software.
Model：
Certificate
Contact
Details SPEC Con VIDEO OI
Similar products

KSJ MG68-F2 Intelligent Gloss MeterSPEC

KSJ MG68-F2 Intelligent Gloss MeterDetails

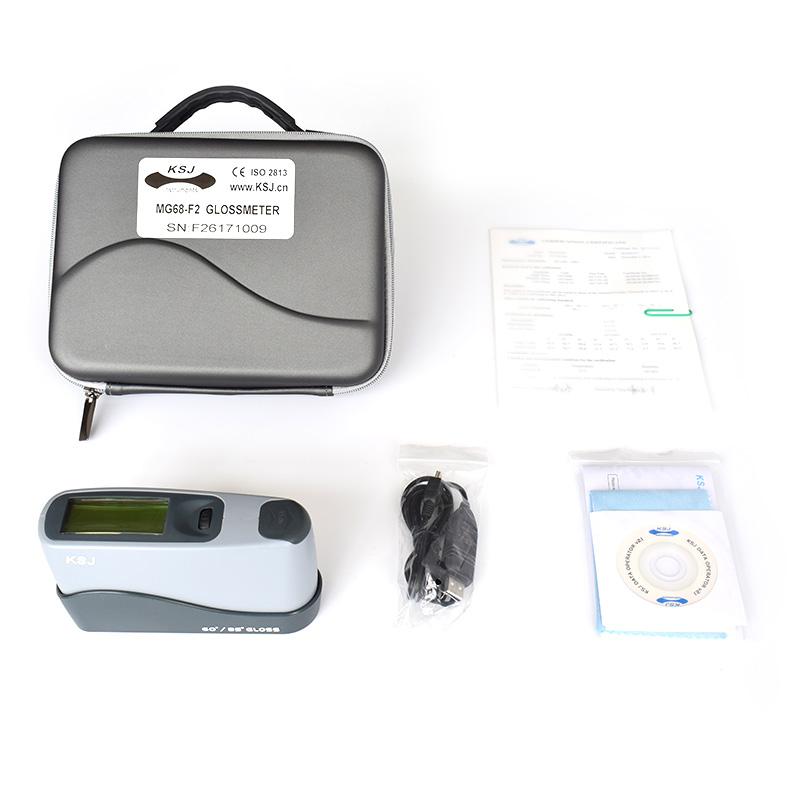

KSJ MG68-F2 Intelligent Gloss MeterPacking list

SKU
NB002163
Geometry
60°/85°
Measuring range
Gs(60°)：0~119.9 、Gs(85°)：0~119.9；Gs(60°)：120~1000 Gs、(85°)：120~160
Repeatability
0.2GU；0.2%
Reproducibility
0.5GU|0.5%
Measuring Areas
9*16mm(60°)；5*39mm(85°)
Error of indication
±1.5; ±1.5%
Division Value
0.1GU|1GU
Standards
ASTM D523、GB/T13891、GB7706、GB8807、JJG 696-2002
Dimensions
155*48*75mm
Weight
400g
Power
One AA (or LR6) alkalinity dry or rechargeable battery
Measurement port size
12*60mm
Zero Error
0.2GU
Operating Temperature
10~40℃
Storage temperature
-10℃~60℃
Relative Humidity
< 85% no condensation
Operating Time
One alkalinity dry battery can support more than 20,000 measurements
MG68-F2
Intelligent Gloss Meter
60 °/85 ° dual angle measurement, including haze and reflectance measurement, MG68-F2 boot self-calibration and self-diagnosis, 10,000 measurement data storage capacity, support for deleting data, standard Gloss data processing software.
KSJ MG68-F2 intelligent Gloss meter, projection angle 60 °/85 ° Picture

product description

KSJ MG68-F2 intelligent gloss meter is a gloss measuring instrument designed and manufactured according to the international standard ISO2813 and Chinese national standard GB/T9754. The Specifications of the intelligent gloss meter meet the requirements of ASTM D523, GB/T13891, GB7706, and GB8807 standards. All performance indicators meet the requirements of the first-class working machine in the national JJG 696-2002 "Specular Gloss Meter and Gloss Board" metrological verification regulations.

The gloss value of the intelligent gloss meter can be traced back to the national glossiness benchmark of Shanghai Institute of Metrology and Testing Technology (SIMT).

The main function

  • Multi-angle one-key to complete the measurement

  • Optional angle mode

  • Power-on self-diagnosis, self-calibration

  • Practical and rich display interface: Simultaneously display each current measurement value, average value, group sequence number and measurement sequence number

  • The measurement data is pre-grouped, and each measurement group can contain a maximum of 99 measurements

  • The unit of measurement defaults to Gloss Units (GU), and can also be switched to Percent Reflectance (%)

  • Grouped measurement data can be browsed by specifying the group number

  • Immediate deletion of invalid measurements

  • Comes with USB adapter and Glossy data processing software

  • It has the functions of low power prompt and full storage prompt

Application

MG68-F2 intelligent gloss meter is widely used in materials and products in many fields such as paint coatings, decoration materials, building materials, plastic materials, bamboo and wood products, ceramic products, leather products, film paper, printing ink, automobile maintenance, molding molds, etc. Gloss measurement of surfaces.

structure diagram

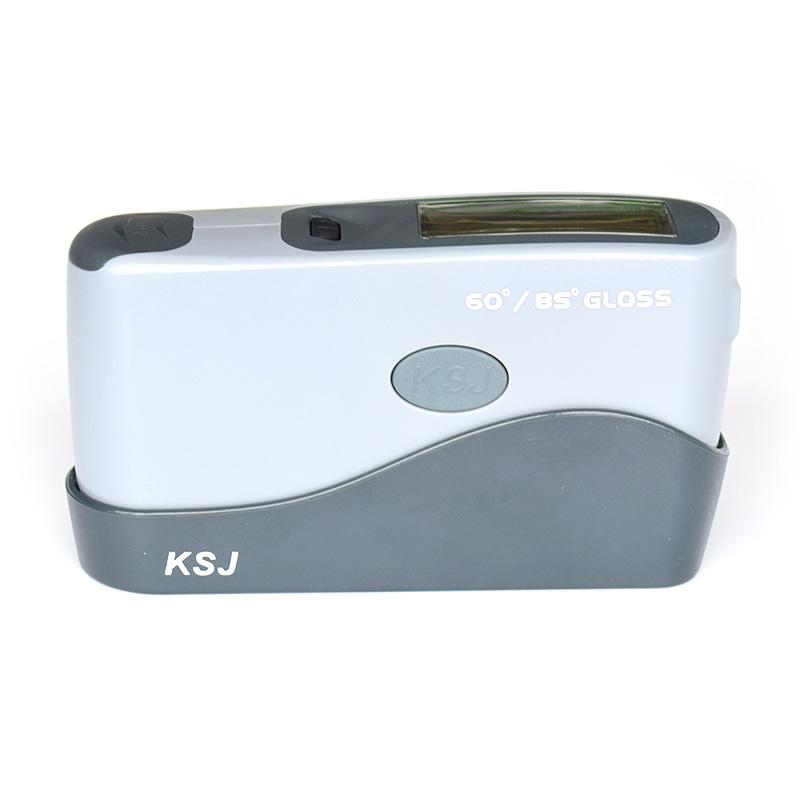

KSJ MG68-F2 intelligent gloss meter is the front structure diagram

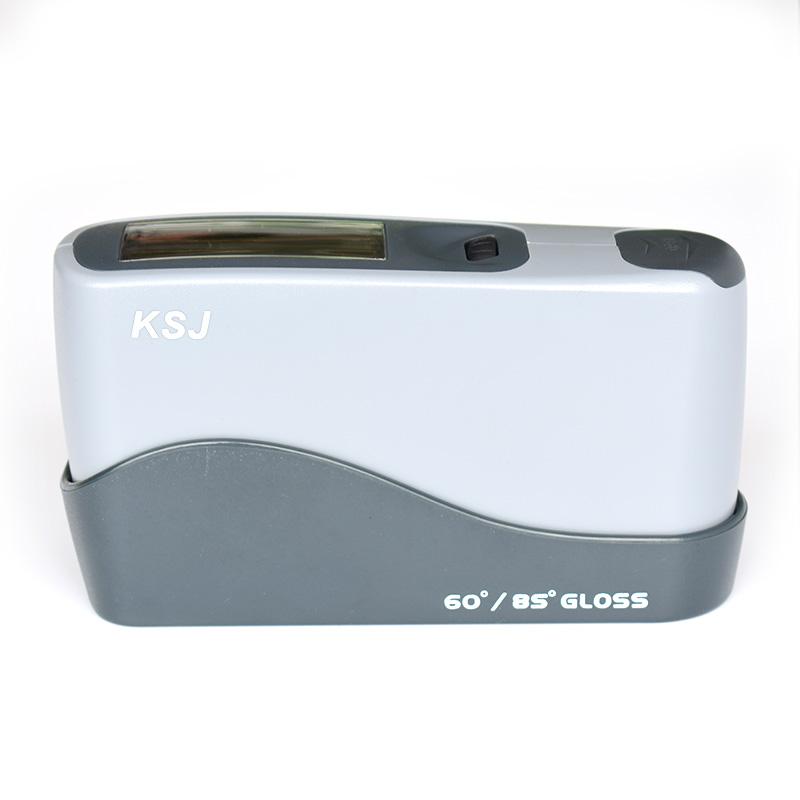

KSJ MG68-F2 intelligent gloss meter back structure diagram

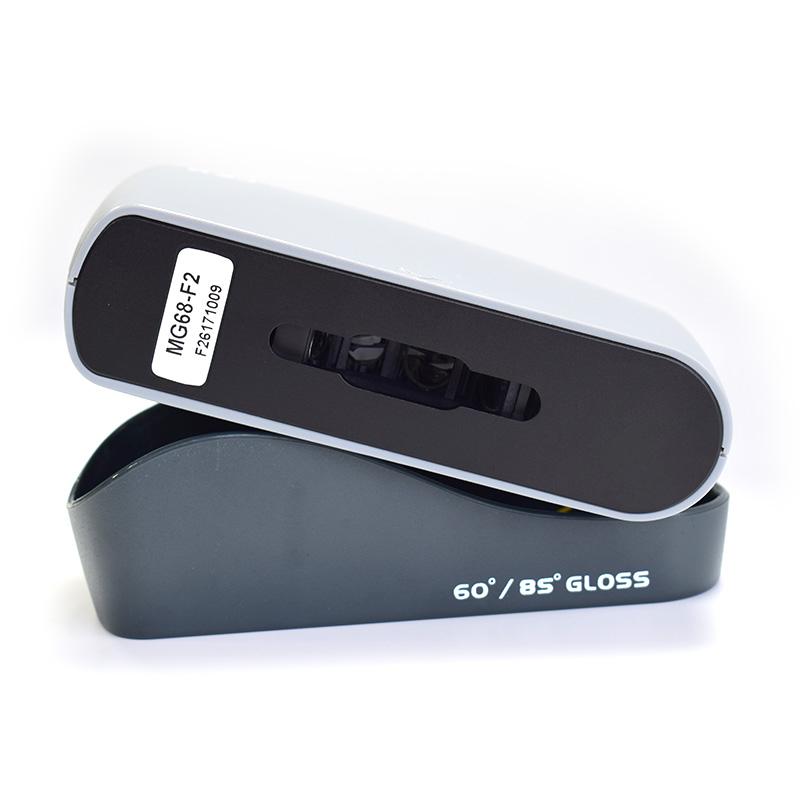

Structural diagram of KSJ MG68-F2 intelligent gloss meter working board

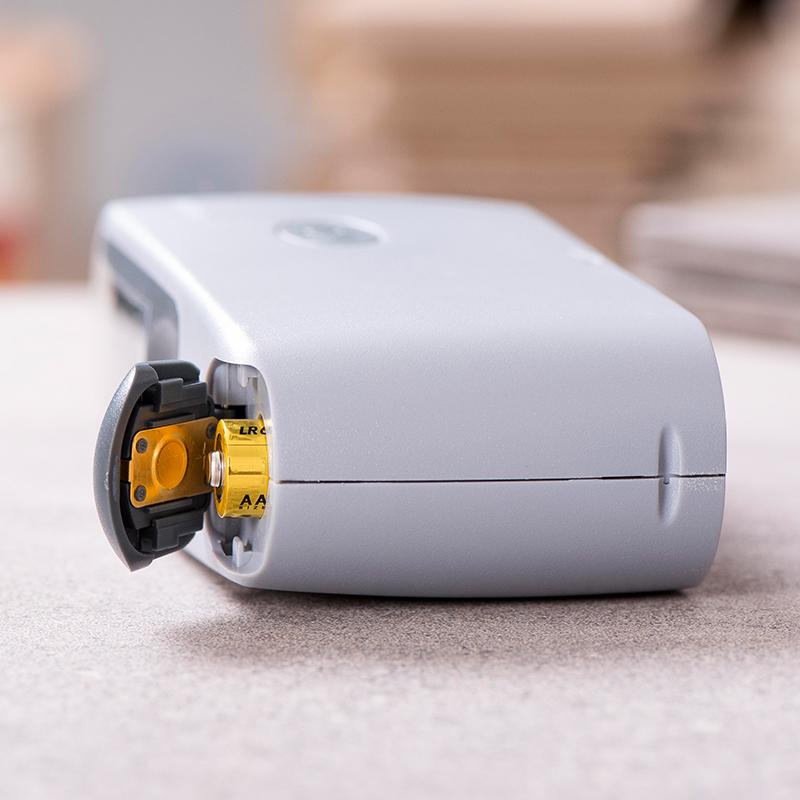

Structural diagram of the battery compartment of KSJ MG68-F2 intelligent gloss meter

Structural diagram of KSJ MG68-F2 intelligent gloss meter calibration work board

plan

KSJ MG68-F2 Intelligent Gloss Meter Display

FAQ
QHow is a glossmeter different from a Miscellaneous surface mass assessment tool such as the Surface Profile Gauge?
A Glossmeter focuses on surface smoothness and reflection, while Surface Profile Gauge evaluates surface roughness.
QCan KSJ's glossmeter measure the average?
A Yes, all four models of the F2 Smart Series can be automatically averaged.
QCan MG68-F2 test haze and reflectance values?
A Yes.
QHow long can the battery of the MG68-F2 Smart Gloss Meter last?
A Hello, an alkaline dry battery can support more than 20,000 measurements.
QCan this intelligent Gloss meter measure the Gloss on the surface of a car?
A Hello, it's okay.
QWill the strong light environment affect the measurement of glossmeters? How to solve?
A Strong light environment will affect the measurement of glossmeter, it is recommended to avoid strong light environment measurement, if you want to avoid external light leakage, you can use black flannel around the measuring port to block the rays of light.
QWhat is the difference between WGG60 series and MG series Glossiness?
A WGG60 series host power supply is built-in rechargeable lithium battery. MG series host power supply is an AA (No. 5) rechargeable or alkaline battery. If the use Frequency is high, use WGG60 series. On the contrary, if the use Frequency is low, use MG series, but please take out the battery after use to protect the instrument host.
QDoes the KSJ intelligent Gloss meter meet the GB/T1766 standard?
A The MG68-F2 intelligent Gloss meter can refer to
QIf you want to test the same thing indoors and outdoors, will it affect the measurement?
A Hello, it is possible that if you work in different environment temperatures, you need to wait for its temperature to be constant, re-calibrate the MG68-F2 Gloss meter, and then perform measurement, and avoid testing in a strong light environment.
QWhat is the test angle of MG68-F2 Smart Gloss Meter?
A Hello, the test angle of this smart Gloss meter is 60 ° and 85 °.
