KSJ GlossmeterSPEC
KSJ GlossmeterDetails

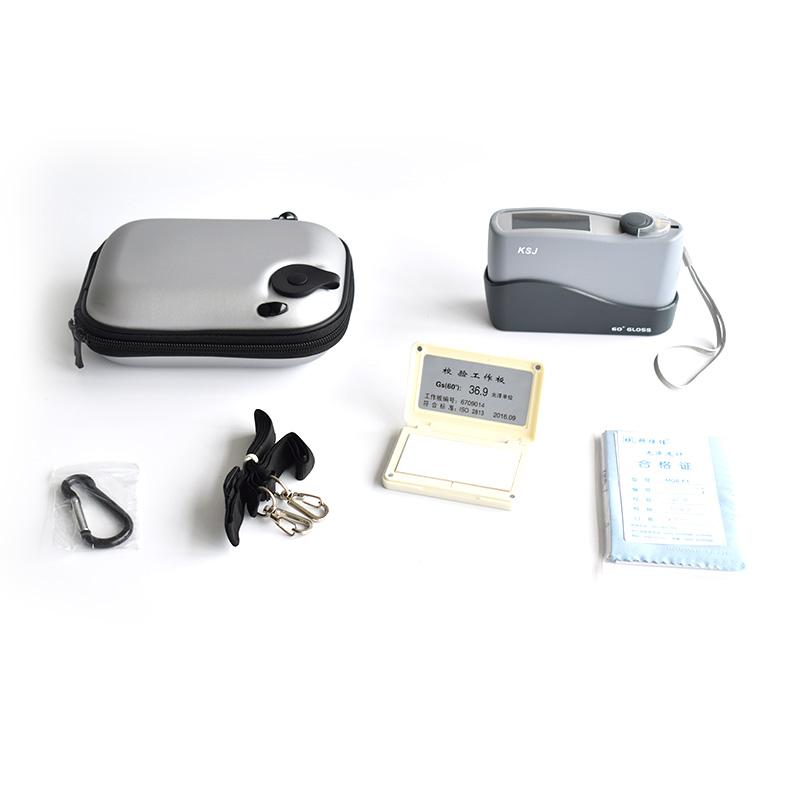

KSJ GlossmeterPacking list
- SKU
- NB002164
- Measurement angle
- 60°
- Measurement range
- 0~199.9GU
- Measuring Areas
- 10*20mm
- Error of indication
- ±1.2GU
- Graduation
- 0.1GU
- Standards
- ISO2813、GB9754、ASTM D2457、ASTM D523、GB/T13891、GB7706、GB8807、JJG696-2002
- Dimensions
- 123*38*65mm
- Weight
- 300g
- Power
- 1.2~ 1.5 AA (No. 5) rechargeable or alkaline battery
- Measurement port size
- 14*30mm
- Reading Range
- 0~199.9GU
- Zero Error
- 0.2GU
- Stability
- 0.4GU
- Operating Time
- Depending on the type of battery, the continuous use time of the alkaline battery is > 58h
product description
â A single AA alkaline battery or rechargeable battery works equally well.
â Low energy consumption: A single AA alkaline battery can last for more than 58 hours.
â The entire set of instruments is designed in one piece, ready to use when turned on and easy to carry.
â Specially equipped with a protective cover for the adjustment button, making operation more secure.
â The measuring port is treated with anti-scratch coating to prevent scratches on the object being measured.
â Small size, beautiful appearance, stable performance and easy to use!
Structure diagram
Application scope
â Gloss measurement on the surface of paint, baking varnish, paint, ink and other coating materials.
â Gloss measurement on the surface of stone, ceramic tiles, profiles and other building decoration materials.
â Gloss measurement of paper, bamboo, plastic, film and other surfaces.
â Gloss measurement of other material surfaces.
Standards compliant
MG6-F1 gloss meter complies with the requirements of the first and second level working machines in the metrological verification regulations of standards ISO2813, GB9754, ASTM D2457, ASTM D523, GB/T13891, GB7706, GB8807, JJG696-2002 "Mirror Gloss Meter and Gloss Plate" . Gloss data can be traced to the National Gloss Measurement Benchmark of the Shanghai Institute of Metrology and Testing Technology (SIMT).
