BDJK triple HMS-901D digital thermostatic Magnetic Stirrer

SE
BDJK triple HMS-901D digital thermostatic Magnetic Stirrer 5 ℃ heating rate per second, LED digital display, can set the specified temperature, built-in temperature probe and external temperature probe, can be freely switched. Used for industrial, agricultural, chemical, pharmaceutical, biological and other experimental heating and stirring.
$1136.00/set
PromotionLoading...
Coupon

bdjk Triple HMS-901D Heating Magnetic StirrerSPEC

bdjk Triple HMS-901D Heating Magnetic StirrerDetails

bdjk Triple HMS-901D Heating Magnetic StirrerPacking list

SKU
NB021684
station number
3 stations
Max. Capacity of stirring
5L*3
Maximum load Weight
20L
Stirring speed
100~2500rpm
Speed regulation mode
stepless speed regulation
Temperature range
RT+~450℃
Temperature control Accuracy
±0.5℃
Heating power
1800W
Mixer size
Φ12*35mm/Φ12*40mm/ Φ12*80mm
Pan size
200*200*3
Panel Material
German SCHOTT microcrystalline ceramics
Dimensions
310*120*600mm
Power
220V/110V
Machine Weight
15kg
Ambient Temperature
5~40℃
Allowable Relative Humidity
<90%
Stirrer drive
ND servo motor
output power
27W
temperature test
Built-in temperature control and external temperature control can be switched
Temperature control mode
LED digital display temperature free setting
Triple HMS-901D
Heating Magnetic Stirrer

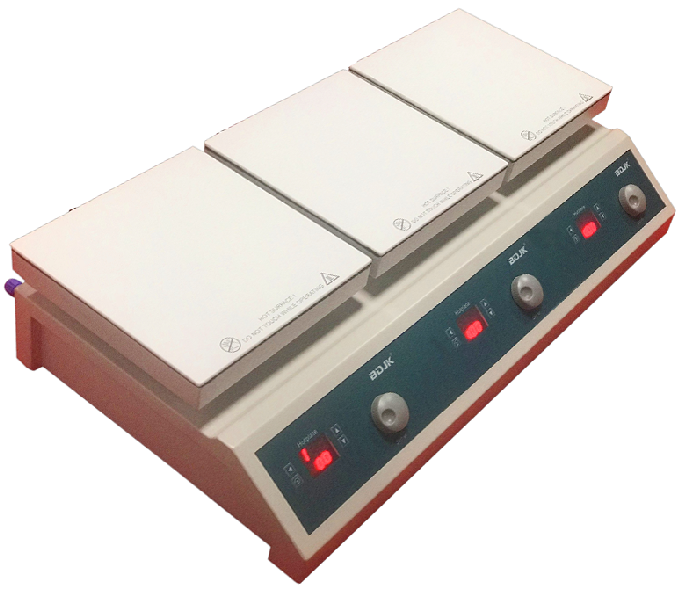

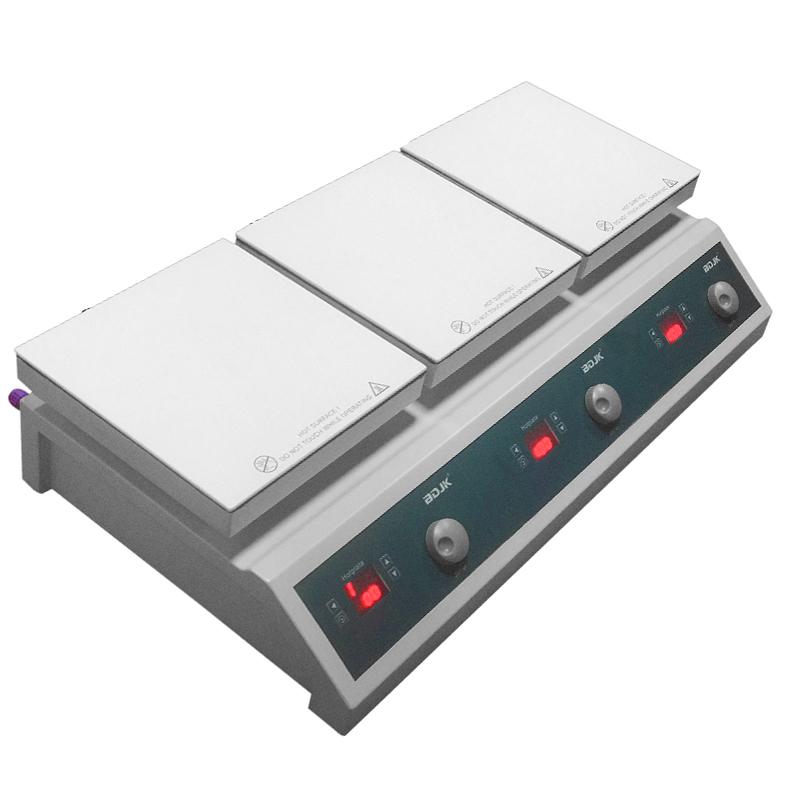

BDJK triple HMS-901D digital thermostatic Magnetic Stirrer Picture

Introduction

- Driven by NanoHeat world-class thermal energy technology, no mechanical heating components, dry burning, no electromagnetic field interference and hazards,

-Ultra-fast heating technology allows the temperature to increase at a rate of 5℃ per second, with a uniform temperature on the plate surface and a temperature difference of 1-3℃. The liquid temperature difference can be accurate to 0.1~-0.5℃, and it only takes 8 minutes to heat up to 450 degrees very quickly.

-LED display, the specified temperature can be set, the built-in temperature probe and the external temperature probe can be switched freely.

-Over-temperature alarm function and temperature setting timer function make experiments more convenient

- German SCHOTT microcrystalline ceramic plate surface, acid-resistant, alkali-resistant, corrosion-resistant, easy to clean.

- Stable stirring performance, using DC motor, low noise, long life, stable at low speed, strong at high speed, digital display of speed, stepless speed regulation;

- Protected from magnetic interference and hazards: making it a good choice for medical and laboratory use

- Suitable for most appliances: glass, ceramic and metalware

-Widely used for heating and stirring in industrial, agricultural, chemical, pharmaceutical, biological and other experiments.



model

HMS-901D  single unit

HMS-901D two-unit

HMS-901D triple

HMS-901D quadruple

 Voltage  (VAC)

220V/110V

220V/110V

220V/110V

220V/110V

 frequency

50/60 Hz

50/60 Hz

50/60 Hz

50/60 Hz

 Rotating speed

0rpm,100~2500rpm


temperature range

   Board temperature: Ambient ~450℃ , Sample temperature: Ambient ~300℃

Maximum mixing volume

5L

5L*2

5L*3

5L*4

Maximum capacity

20L

Standard stirrer size

Φ12×35mm/Φ12×40mm/…Φ12×80mm

Working surface size

200×200mm

200×200mm*2

200×200mm*3

200×200mm*4

Work panel material

Microcrystalline ceramics

Number of stirring positions

1

2

3

4

Stirring point spacing

220mm

Maximum stirrer length

≤80mm

Maximum power

600W

1200W

1800W

2400W

Motor input power

9W

18W

27W

36W

Motor output power

9W

18W

27W

36W

ambient temperature

5℃~40℃

environment humidity

<90%

weight

5kg

10kg

15kg

20kg

Dimensions

310×120×200mm

310×120×400mm

310×120×600mm

310×120×800mm
