KSJ WGG60-E4 Gloss meter built-in lithium battery

SE
KSJ Classic Model, Aluminum Alloy Shell and Probe, Large Measuring Area, Built-in Rechargeable Battery, 0.0~199.5GU Range, Accurate Measurement.
Model：
Certificate
Contact
Details SPEC Con VIDEO OI
Similar products

KSJ WGG60-E4 Gloss meterSPEC

KSJ WGG60-E4 Gloss meterDetails

KSJ WGG60-E4 Gloss meterPacking list

SKU
NB002169
Geometry
60°
Measurement range
0~199.5GU
Measuring Areas
18*36mm
Error of indication
±2GU
Division Value
0.5GU
Standards
ISO2813、GB9754、ASTM D2457、ASTM D523、GB/T13891、GB7706、GB8807、JJG696-2002
Dimensions
130*40*80mm
Weight
430g
Power
Built-in Ni-MH battery pack 4x1.2V
Measurement port size
20*50mm
Reading range
0~199.9GU
Zero Error
0.5GU
Stability
1GU
Operating Time
Power-on continuous use time > 48h
Charging time
14~16h
Charger
AC 187~ 242 (50Hz)
WGG60-E4
Gloss meter
KSJ Classic Model, Aluminum Alloy Shell and Probe, Large Measuring Area, Built-in Rechargeable Battery, 0.0~199.5GU Range, Accurate Measurement.
KSJ WGG60-E4 Gloss meter built-in lithium battery Picture

product description

Palm size, easy to carry.

Built-in rechargeable battery pack. It can be used continuously for more than 24 hours on a full charge.

Application

★ Surface gloss measurement of paint, baking varnish, paint, ink and so on.

★Building decoration materials: surface gloss measurement of marble, granite, vitrified polished tiles, ceramic tiles, etc.

★Surface gloss measurement of plastic, paper, bamboo and wood etc.

★Measuring the surface gloss of various other non-metallic and metallic materials.

structure diagram

Koshijia WGG60-E4 Gloss Meter Structural Diagram

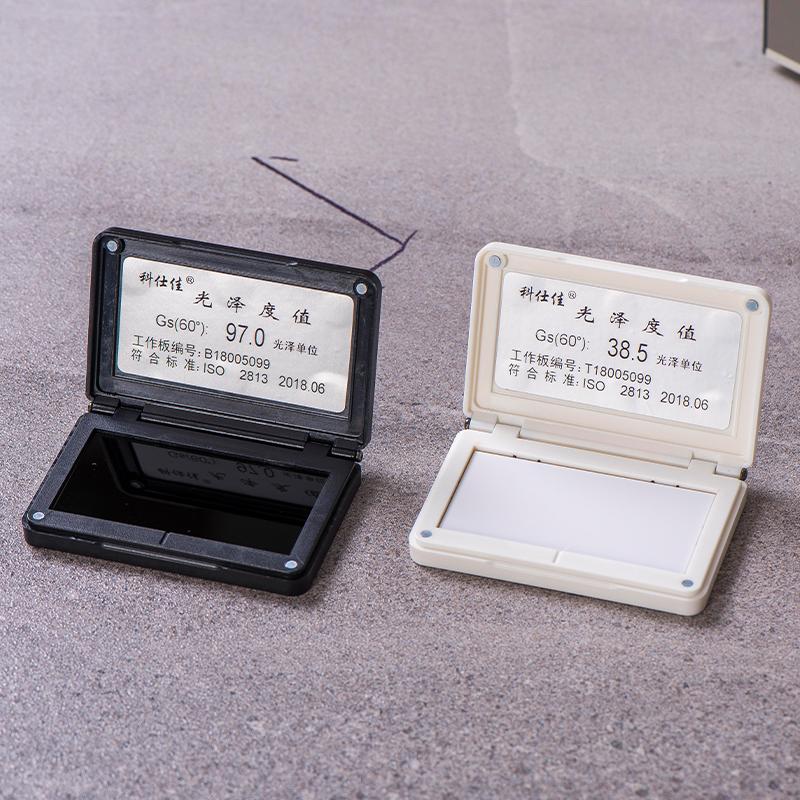

Working board diagram of KSJ WGG60-E4 gloss meter

Standards

KSJ WGG60-E4 Gloss Meter complies with the standards ISO2813, GB9754, ASTM D2457, ASTM D523, GB/T13891, GB7706, GB8807, JJG696-2002 "Mirror Gloss Meter and Gloss Board" in the first and second level work of the metrological verification regulations machine requirements. The gloss value of the WGG60-E4 gloss meter can be traced back to the international glossiness benchmark of Shanghai Institute of Metrology and Testing Technology (SIMT).

plan

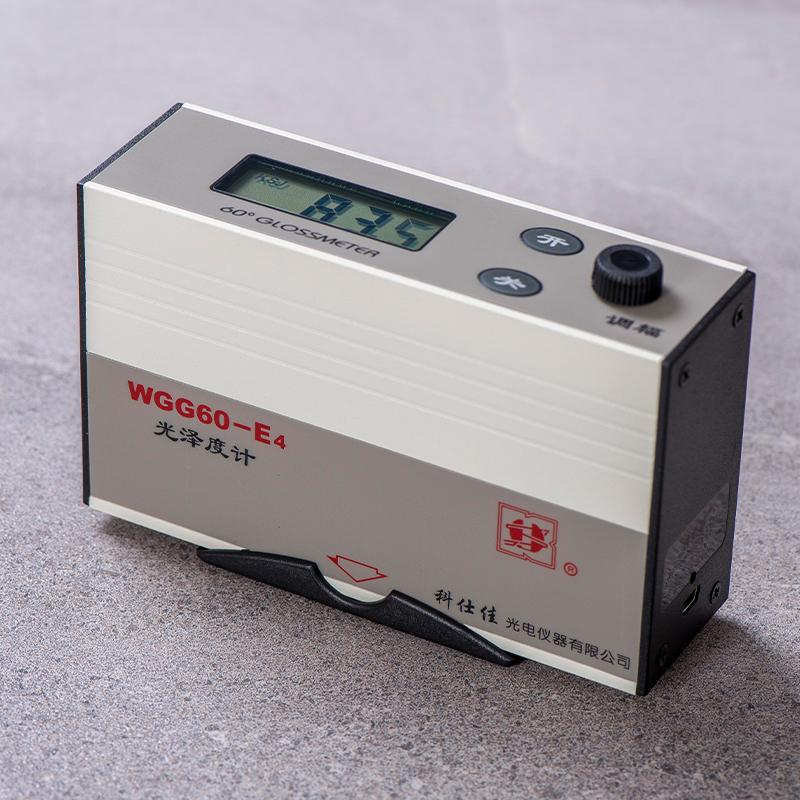

KSJ WGG60-E4 Gloss Meter Appearance

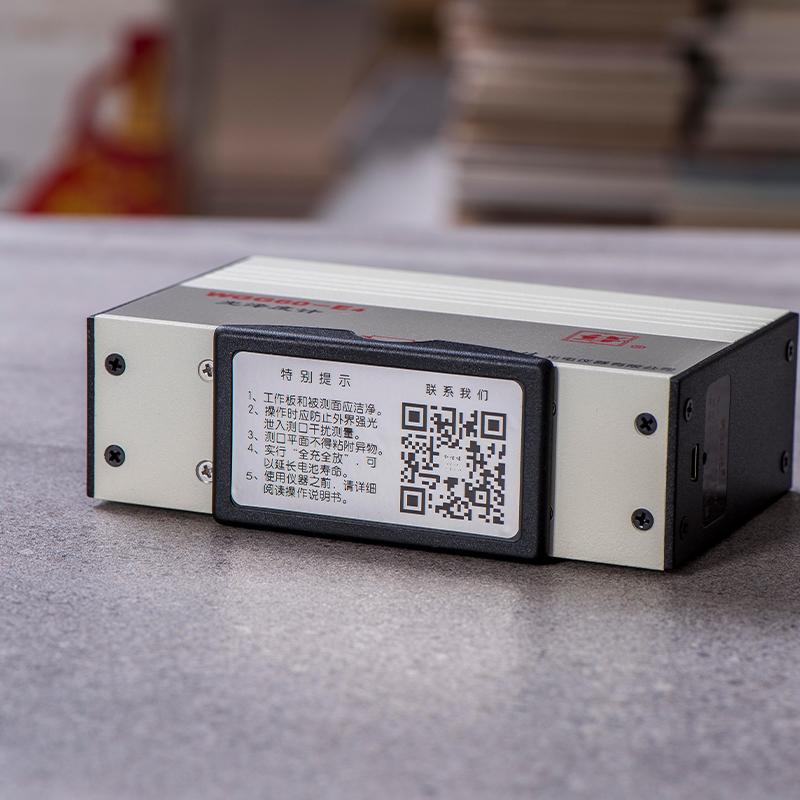

The bottom detail of KSJ WGG60-E4 Gloss Meter

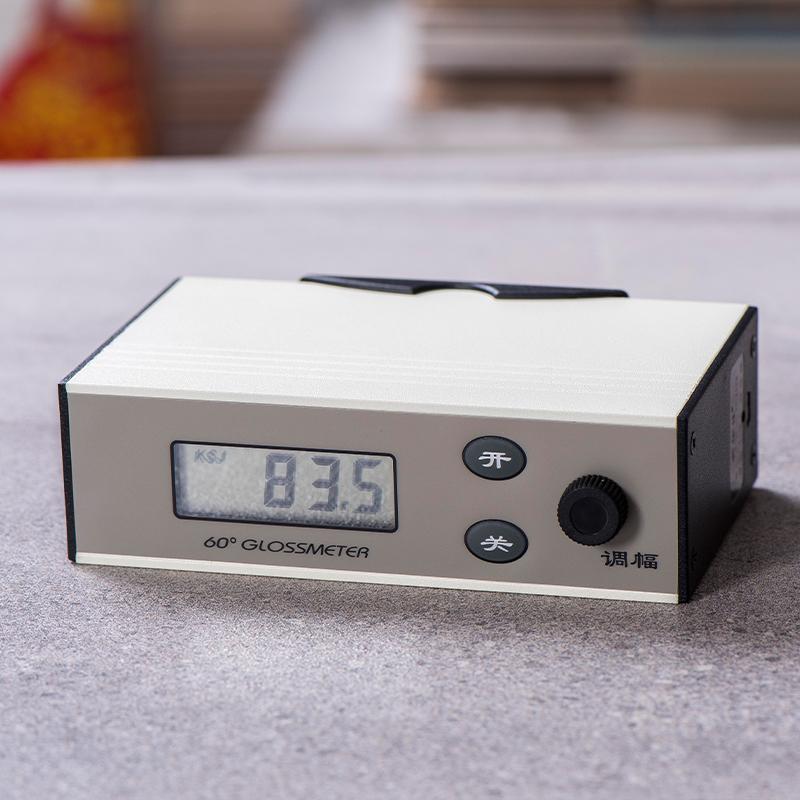

KSJ WGG60-E4 gloss meter interface details

KSJ WGG60-E4 Gloss Meter Package Drawing

KSJ WGG60-E4 Gloss Meter Scene Map

FAQ
QCan the Glossiness of Hair be Measured?
A You can measure the hair strands side by side. The E4 measuring port is relatively large, and the measured area is larger.
QWhat is a glossmeter used for?
A Glossmeter is used to measure the degree of Gloss or smoothness of the surface of an object and is a commonly used tool in quality control and surface evaluation.
QHow is glossiness defined?
A Glossiness is a measure of the ability of a surface to reflect rays of light, usually determined by comparing the difference between the ray of light reflection angle and the Incident angle.
Qhair test
A If fixed to the plane method, you can use E4, bundled into a cylindrical shape, you can use S1, the measurement error is large, not high accuracy.
QGloss exterior coatings, is this glossmeter suitable?
A suitable
QMeasurement of UV Gloss oil Glossiness on paper, is there a suitable glossmeter?
A This WGG60-e4 is suitable.
QDoes the glossmeter need to be calibrated frequently?
A Generally, it is recommended to re-calibrate after a period of use or a long boot time to ensure the accuracy of the next measurement.
QCan this glossmeter measure acrylic resin Gloss?
A Sure
QUsed to measure the surface Gloss of enamel products?
A Can be applied.
QHow big is the error of this Keshijia Gloss meter?
A Hello, the error of indication is ± 2GU, and the zero value error is 0.5GU.
