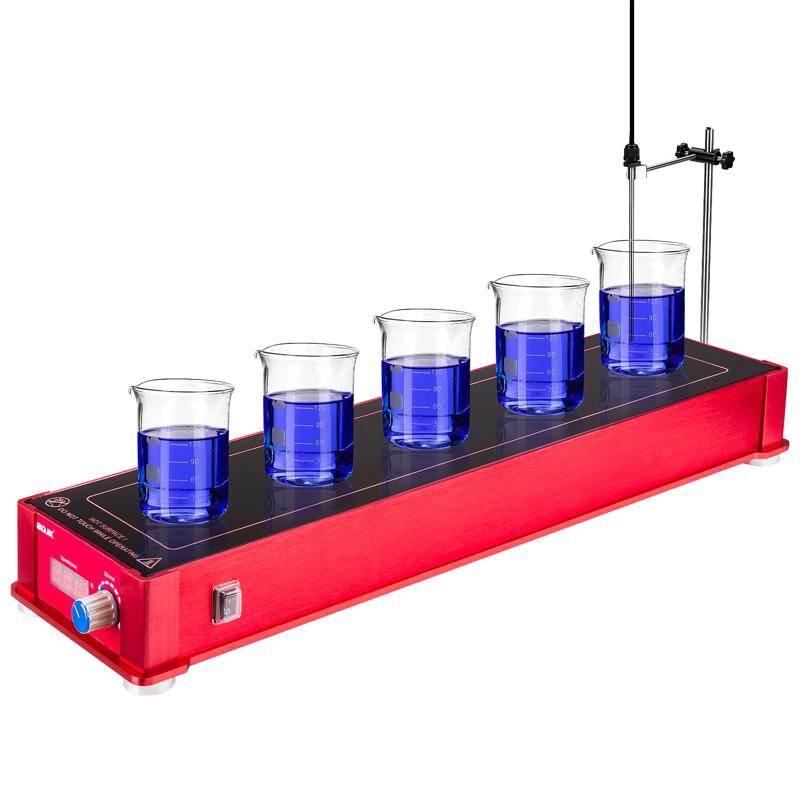

BDJK HMS-5 Magnetic Stirrer

SE
The working panel of BDJK HMS-5 multi-point Magnetic Stirrer adopts German-microcrystalline ceramics, acid resistance, alkali resistance, high temperature resistance, easy cleaning, HMS-5 multi-point Magnetic Stirrer has 5 working positions, Heating Plate temperature can be arbitrarily set in room temperature~ 200 ℃.
$582.00/set
PromotionLoading...
Coupon
Model:

bdjk HMS-5 Multipoint Magnetic StirrerSPEC

bdjk HMS-5 Multipoint Magnetic StirrerDetails

bdjk HMS-5 Multipoint Magnetic StirrerPacking list

SKU
NB021696
station number
5 stations
Max. Capacity of stirring
2.5L
Stirring speed
100~1100rpm
Input Power
7.2W
Mixer size
Φ12*35mm
Pan size
140*540mm
Panel Material
microcrystalline ceramics
Dimensions
160*560*80mm
Power
220V/110V
Machine Weight
4.2kg
Ambient Temperature
5~40℃
Allowable Relative Humidity
<90%
Rated Frequency
50/60Hz
Max. Capacity of stirring
500mL
Mixer size
≤40mm
output power
1.8W
HMS-5
Multipoint Magnetic Stirrer
BDJK HMS-5 Magnetic Stirrer Picture

Product Description

HMS series multi-point digital display magnetic stirrer has 5 working positions, 10 working positions and 15 working positions respectively, with and without heating functions. It has a novel and beautiful appearance design, easy operation, continuously adjustable stirring speed, and stable operation of the instrument. Smooth and quiet, Heating Plate temperature can be set arbitrarily from room temperature to 200 ℃, and the sample temperature can be heated up to 100 ℃.

The heating module adopts nano thermal energy technology, which has fast heating, large heating area and uniform heating; it is suitable for experiments such as large-scale sample screening, culture, sample concentration, solvent evaporation, etc.

It is widely used in medical, biological, petroleum, chemical, environmental protection and other fields. It is a good helper in major and middle schools, scientific research units, inspection and quarantine, health and epidemic prevention and other experiments;

Features

1. The heating module adopts nano thermal energy technology, has no mechanical heating components, can be dry-fired, has no electromagnetic field interference and hazards, has a large heating area, is heated evenly, and can heat up very quickly;

2. Can heat and stir containers of various shapes and sizes from 1 to 500ml standard or non-standard;

3. Using DC motor, it has stable performance, low noise, long life, stable at low speed and strong at high speed;

4. The body is made of aluminum oxide alloy and has a novel and beautiful appearance design;

5. The working panel is made of German microcrystalline ceramics, which is acid, alkali and high temperature resistant and easy to clean;

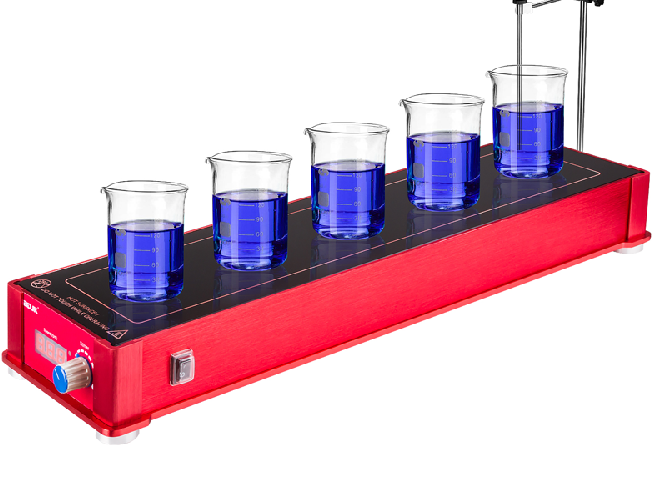

Boda JinKeLian HMS-5 multi-point magnetic stirrer

Specifications

model

HMS-05/HMS-05H

HMS-10/HMS-10H

HMS-15/HMS-15H

Voltage(VAC)

220V/110V

220V/110V

220V/110V

frequency

50/60 Hz

50/60 Hz

50/60 Hz

Rotating speed

0rpm,100~1100rpm

temperature range

--/     Board surface temperature: Ambient ~200℃, Sample temperature: Ambient ~120℃

Maximum mixing volume

2.5L

5L

7.5L

maximum capacity

500ml

Standard stirrer size

Φ12×35mm

Working surface size

140×540mm

240×540mm

340×540mm

Work panel material

Microcrystalline ceramics

Number of stirring positions

5

10

15

Stirring point spacing

90mm

Maximum stirrer length

≤40mm

maximum power

--/300W

--/600W

--/800W

Motor input power

7.2 W

14W

30W

Motor output power

1.8 W

4W

6W

ambient temperature

5℃~40℃

environment humidity

<90%

weight

4.2kg

6.7kg

7.2kg

Dimensions

160×560×80mm

260×560×80mm

360×560×80mm
